Unable to fin the XMP profile on my BIOS..

[MrSH4RKYY]

I got new RAM today and I want to set my M5A78L-M/USB3 ASUS

The RAM I got is at 1600Mhz but it is only Running at 937Mhz I was told to put my BIOS to XMP mode, but I have looked everywhere on it and cannot see any "RAM profiles" or anything like some other people have.. thanks.

regards
,Andrew

Merry Christmas )



[maxie]

Hi Andrew .... Read the Link below ... What you are looking for is Under the Tools Menu ...


http://dlcdnet.asus.com/pub/ASUS/mb/SocketAM3+/M5A78L-M_USB3/E8017_M5A78L-M-USB3.pdf



[MrSH4RKYY]

Thank you for showing me this mate, but I am still unable to fin any Profiles, under tools I all I have is ASUS OC utility thing and a EZ2 flash setup thing, the ASUS OC utility does not seem to have anything in it for RAM profiles, I also could not find any info on XMP on that manual you showed me, Sorry man I am really new to BIOS's and stuff like this, thanks man for taking time out of the holidays to help me out !



[maxie]

Okay read the Link below ...


HyperX 8 GB 2400 MHz CL11 DDR3 HyperX Beast Desktop Memory Kit (2 x 4GB) - Intel XMP: Amazon.co.uk: Computers & Accessories


In you case it would not be the Intel® Extreme Tuning Utility....


As you have a AMD Chipset .. So i looked under Utility's on your Motherboards Website ..


Could it be the ASUS EPU-4 Engine you need ?



[MrSH4RKYY]

Well I got Corsair VENGANCE for Xmas so I am not able to buy new ram and what is the ASUS EPU-4 can I download that.. ?



[maxie]

Never had intended that you need or want to buy new Ram ..

Just Posted that Link so as you could see what was needed ..


Sure you can Download that Program .. In the Link below


Motherboard - M5A78L-M/USB3 - ASUS



[MrSH4RKYY]

Nice man thanks I am looking at all the stuff I can use, what do I download tho xD? I am really sorry I am just confused with all of this



[maxie]

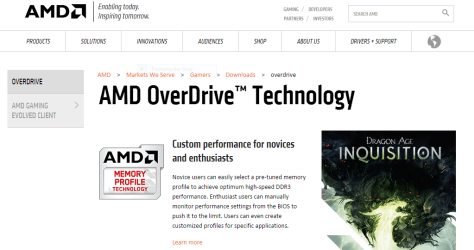

I actually think the Program you need is the AMD OverDrive Utility ... And not the ASUS EPU it seems just for Power Management



[maxie]



[MrSH4RKYY]

hey man I downloaded it, but again no profile settings just a bunch of numbers.



[maxie]

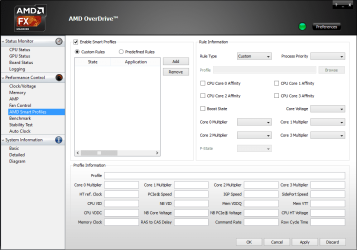

On the left hand side it says AMD Smart Profiles ... What happens when you click on that ? ...



[MrSH4RKYY]

These are my options, when I clikc "add" it wants to open up a file.



[maxie]

This is proving to be quiet difficult ... Have found some thing else how ever ...


AnandTech | Memory Scaling on Haswell CPU, IGP and dGPU: DDR3-1333 to DDR3-3000 Tested with G.Skill



[maxie]

In Addition to the above


The ASUS M5A78L-M/USB3 does support all of the current FX CPU's, IF the BIOS is 0411 or higher if not it won't boot. Next, the FX CPU's IMC is rated stock for DDR3-1866 IF the RAM has a 'SPD' JEDEC of 933MHz, but not if the kit's 933MHz is XMP. If using XMP kits the RAM runs at the highest available non-XMP up to 933MHz (DDR3-1866). To correct this the RAM must be manually set in the BIOS.



[MrSH4RKYY]

but the real issue is that I do not get any of these options, like that "dram" profile I do not get. .



[maxie]

I think the answer is in the BIOS you have to configure the Ram Manually



[MrSH4RKYY]

Ah ok I get you know my friend, I am able to see alot of options for the RAM want me to send a picture? thanks again fro all the amazing help !



[maxie]

Sure Post some screenshots ... There are pictures in the Manual but they are just to small for me to see ...



[MrSH4RKYY]

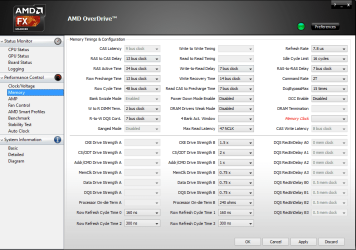

All these settings here are the same settings on my BIOS. )



[maxie]

Reading through the Manual only some Settings are adjustable the rest has to be done through the BIOS ...

Post a screenshot of the Clock Voltage Settings ...



http://sites.amd.com/us/Documents/AMD_FX_Performance_Tuning_Guide.pdf
