Upgrading Dell Inspiron 580s PSU

[wally1324]

I wanted to upgrade my PSU and get a new graphics card
will this work

DELL Inspiron 580s Tower Power Supply PSU

and

Newegg.com - Palit NE5S4500F0601 GeForce GTS 450 (Fermi) 1GB 128-bit GDDR5 PCI Express 2.0 x16 HDCP Ready Low Profile Ready Video Card GPU



[bobkn]

The graphics card needs one 6 pin PCI-E power connector. The PSU that you specify has none, although the molex to PCI-E adaptor that is included with the card will probably serve.

Newegg lists the card as "deactivated". Do you have another source?

I hesitate to recommend trying to upgrade a small form factor system like the 580s into a capable gaming system, but it's your money.



[essenbe]

I have a 580S and considered doing the same thing. After considering it, I decided I would be better off building a new system with quality components. If you do decide to upgrade, I would buy another case so I was not limited to what I can put in it and could choose a regular ATX PSU and install it without worrying about having the cables you would need and the quality of the PSU's you are limited to. lus with a new case you would be able to add periphals to the front panel which you cannot do now, and have fans to cool it. Just my thoughts.



[TVeblen]

Just curious essenbe, would the big video card have fit into the 580 without hitting anything?



[essenbe]

Just curious essenbe, would the big video card have fit into the 580 without hitting anything?

Possibly, but I doubt it. it has a micro ATX board that goes under the CD/DVD. If one would fit, it would also have to be a low profile card. With the current PSU, there is not even 1 4 pin power connecter available. The CD/DVD and card reader have to fit in vertical, it is not wide enough for them to fit horizontal. All of this makes updating quite difficult. That's why I would recommend another case that can fit an ATX PSU and alleviate all of these problems.



[essenbe]

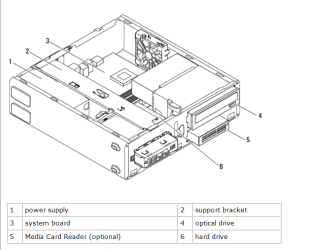

Here is an idea of the inside.
