Vertical line corruption and BSOD at random times

swift01

New member
Local time
10:01 AM
Messages
7
When playing League of Legends computer screen goes like this at random times. And for few more seconds sounds in background still working but they start looping then. And only way to use computer again is to restart at this time.

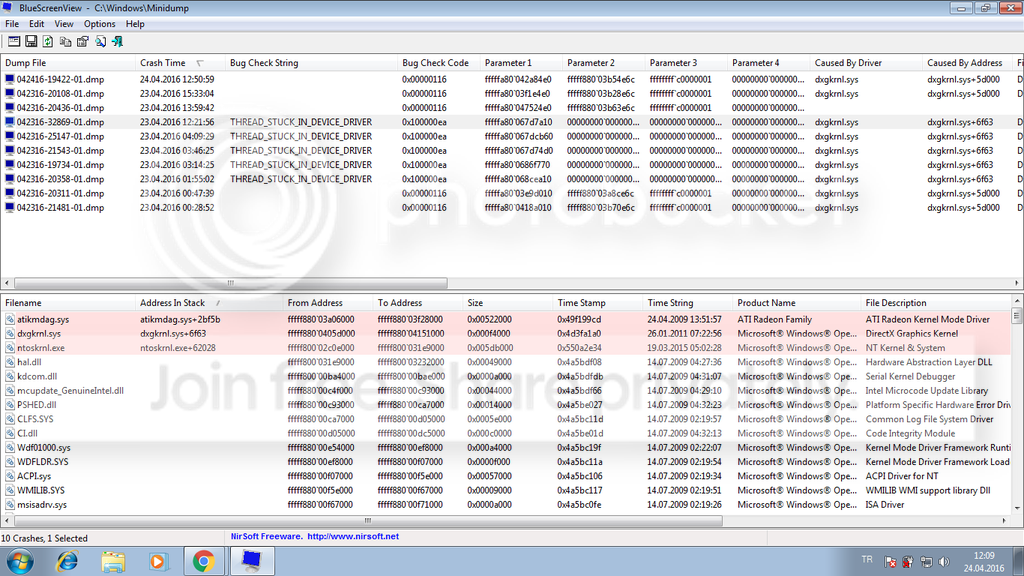

Here is list of crashes. (All crashes in the list are about this problem but when I try older graphic card drivers, error codes and names are changing.)



There is no overheating issue I think because after 20 minutes in FurMark it reaches to 86 degree but no crash or something like that.

Operating system is Win 7 Ultimate x64. BIOS is up to date. I use ATI Radeon HD4650, Intel Core 2 Duo 2.2 GHz. Could it be RAM problem? Because RAM seems 4060 MB despite 4 GB is equal to 4096 MB?


My Computer My Computer

At a glance

Win 7 x86 Ultimate
Computer type
PC/Desktop
OS
Win 7 x86 Ultimate
It looks as though your graphics card might be failing, but I could be wrong. Normally that sort of thing is caused by an overheating graphics card, including the audio looping.

If I remember correctly, a Radeon 4650 doesn't have a fan. 86C under Furmark is a little high for a Radeon card. I agree that it may not be a heat issue if it is getting that hot for any sustained length of time, but I would not run the card using Furmark if it is getting that high. At least not for a sustained period. It may damage the card.

It would almost seem like this is a DirectX or graphics driver problem, but I'm still leaning toward hardware.

Does the crash give you a BSOD?


My Computer My Computer

At a glance

Win 7 Pro x64/Win 10 Pro x64 dual bootAMD FX 8350 Vishera @ 420016 GB Mushkin Blackline DDR3-2400 @ 1866 (9-1...XFX Radeon R9 280 Double D Black Edition
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Mellon Labs (custom build)
OS
Win 7 Pro x64/Win 10 Pro x64 dual boot
CPU
AMD FX 8350 Vishera @ 4200
Motherboard
ASUS M5A97 R2.0
Memory
16 GB Mushkin Blackline DDR3-2400 @ 1866 (9-10-10-10-31)
Graphics Card(s)
XFX Radeon R9 280 Double D Black Edition
Sound Card
Realtek HD Audio on MB. Sounds great.
Monitor(s) Displays
Acer 24", Acer 22"
Screen Resolution
3840 x 1080
Hard Drives
1 x Mushkin Chronos 120 GB SSD (Win 10)
1 x Samsung 850 EVO 250 GB SSD (Win 7)
1 x WD 1TB SATA Blue
1 x WD 1TB SATA Green
PSU
Corsair TX-750
Case
CoolerMaster HAF 912+
Cooling
Coolermaster Seidon 240M Liquid AIO. 6 case fans
Keyboard
Logitech G710+
Mouse
Logitech G500s
Internet Speed
Much better since I got fiber, but still way overpriced.
Antivirus
MSE, Malware Bytes for scanning
Browser
Firefox
Other Info
Corsair VOID USB headphones.

A Mellon Labs X-1 - LCD Smartie driven system status display.

Brought to you by the letter E
It looks as though your graphics card might be failing, but I could be wrong. Normally that sort of thing is caused by an overheating graphics card, including the audio looping.

If I remember correctly, a Radeon 4650 doesn't have a fan. 86C under Furmark is a little high for a Radeon card. I agree that it may not be a heat issue if it is getting that hot for any sustained length of time, but I would not run the card using Furmark if it is getting that high. At least not for a sustained period. It may damage the card.

It would almost seem like this is a DirectX or graphics driver problem, but I'm still leaning toward hardware.

Does the crash give you a BSOD?

Much thanks for answer.

There is no blue screen but as you can see there is list of blue screen errors. When this problem happens, screen stuck like in the photo and nothing can be done but restarting pc. You are most probably right about hardware part of that. Also there is no fan. But I use exceptional cooling system. But I am unsure about a thing:

You know there is pipeline which cools CPU and GPU by connecting them to a one fan in laptop itself. And a technician said that, this pipeline is not working efficently and told me to buy a cooler system. It actually worked, without this system everything on PC was lagging crashing etc. But this error only happens in League of Legends game. So buying a new graphics card will change results? Or because of this pipelines, new graphic card would do the same thing like this too? Or should I change pipelines completely?


My Computer My Computer

At a glance

Win 7 x86 Ultimate
Computer type
PC/Desktop
OS
Win 7 x86 Ultimate
Ok. I'm a little confused. Is this a laptop? Or is it a desktop? Your specs say desktop.


My Computer My Computer

At a glance

Win 7 Pro x64/Win 10 Pro x64 dual bootAMD FX 8350 Vishera @ 420016 GB Mushkin Blackline DDR3-2400 @ 1866 (9-1...XFX Radeon R9 280 Double D Black Edition
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Mellon Labs (custom build)
OS
Win 7 Pro x64/Win 10 Pro x64 dual boot
CPU
AMD FX 8350 Vishera @ 4200
Motherboard
ASUS M5A97 R2.0
Memory
16 GB Mushkin Blackline DDR3-2400 @ 1866 (9-10-10-10-31)
Graphics Card(s)
XFX Radeon R9 280 Double D Black Edition
Sound Card
Realtek HD Audio on MB. Sounds great.
Monitor(s) Displays
Acer 24", Acer 22"
Screen Resolution
3840 x 1080
Hard Drives
1 x Mushkin Chronos 120 GB SSD (Win 10)
1 x Samsung 850 EVO 250 GB SSD (Win 7)
1 x WD 1TB SATA Blue
1 x WD 1TB SATA Green
PSU
Corsair TX-750
Case
CoolerMaster HAF 912+
Cooling
Coolermaster Seidon 240M Liquid AIO. 6 case fans
Keyboard
Logitech G710+
Mouse
Logitech G500s
Internet Speed
Much better since I got fiber, but still way overpriced.
Antivirus
MSE, Malware Bytes for scanning
Browser
Firefox
Other Info
Corsair VOID USB headphones.

A Mellon Labs X-1 - LCD Smartie driven system status display.

Brought to you by the letter E
Sorry I forgot to say it was HD4650M, not desktop version. It is laptop. And I took a photograph of pipelines.

http://i1281.photobucket.com/albums/a519/swift2214/Mobile Uploads/20160424_211903_zpsedhirmo7.jpg
I mean this yellow-golden coloured pipelines.

Also I noticed while taking photograph, fan sometimes stops and running again and stop again while only this website is open. Is it a problem or because of there is nothing to make computer heated while only thing is working is a Google Chrome.


My Computer My Computer

At a glance

Win 7 x86 Ultimate
Computer type
PC/Desktop
OS
Win 7 x86 Ultimate
I installed x86 version of Windows 7 Ultimate which I have got, (I mean in installation screen I picked x86 one and insalled it on other disk) but same problem happens all the time no matter which driver, OS version I use. Also chcked Updates for Windows 7 and they are all installed.


My Computer My Computer

At a glance

Win 7 x86 Ultimate
Computer type
PC/Desktop
OS
Win 7 x86 Ultimate
Time to clean up the laptop :). Have it cleaned by a laptop expert if you are worried that you're gonna break stuff in there.


My Computer My Computer

At a glance

Windows 7 Home Premium 64-BITAMD A8 7200P8GB 1600mhzRadeon R5 (APU) + Radeon R5 M230 2GB Dual Gra...
Computer type
PC/Desktop
Computer Manufacturer/Model Number
ASUS X550ZE
OS
Windows 7 Home Premium 64-BIT
CPU
AMD A8 7200P
Motherboard
N/A
Memory
8GB 1600mhz
Graphics Card(s)
Radeon R5 (APU) + Radeon R5 M230 2GB Dual Graphics
Sound Card
Realtek ALC269 with SonicMaster
Monitor(s) Displays
Laptop Display
Screen Resolution
1920 x 1080 @60hz
Hard Drives
WDC WD50 00LPVX-80V0TT0 (500GB)
PSU
Laptop Charger
Mouse
ARMAGGEDON TEXTRON SCORPION 7
Internet Speed
100 mbps DOWN / 50 mbps UP
Antivirus
Windows Defender
Browser
Mozzila FireFox, Valve Steam in-game internet browser
Time to clean up the laptop :). Have it cleaned by a laptop expert if you are worried that you're gonna break stuff in there.

It is clean, an expert did it. I think fan looks very clean in last photograph. Doesn't it? :D


My Computer My Computer

At a glance

Win 7 x86 Ultimate
Computer type
PC/Desktop
OS
Win 7 x86 Ultimate
Time to clean up the laptop :). Have it cleaned by a laptop expert if you are worried that you're gonna break stuff in there.

It is clean, an expert did it. I think fan looks very clean in last photograph. Doesn't it? :D

Well photobucket says the image has an incorrect link....
