Windows7 SP1 install fails 0x800B0100

[jgibbons3]

I have a windows 7 32bit install and when I attempt to install service pack 1 I get the following error message: Trust_E_NoSignature 0x800B0100

I have also run the Windows update diagnostic tool which tells me it can not fix 2 items
the 0x800b0100 error and cryptographic service components are not registered.

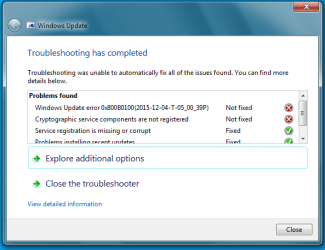

see picture attached
When I look in services Cryptographic Services are started.

SFC found no errors

attached is the cbs log file as well

Any help will be greatly appreciated

Jim



[jgibbons3]

The following is the results of SURT

Checking System Update Readiness.
Binary Version 6.1.7601.22471
Package Version 26.0
2015-12-07 13:18
Checking Windows Servicing Packages
Checking Package Manifests and Catalogs
(f) CBS MUM Corrupt 0x800F0900 servicing\Packages\Package_for_KB2454826~31bf3856ad364e35~x86~~6.1.2.0.mum Line 1:
(f) CBS Catalog Corrupt 0x800B0100 servicing\Packages\Package_for_KB2454826~31bf3856ad364e35~x86~~6.1.2.0.cat
Checking Package Watchlist
Checking Component Watchlist
Checking Packages
(f) CBS Registry Error 0x80070103 Package_for_KB2454826_RTM~31bf3856ad364e35~x86~~6.1.2.0 failed to get owner for package.
Checking Component Store
Summary:
Seconds executed: 351
Found 3 errors
CBS MUM Corrupt Total count: 1
CBS Catalog Corrupt Total count: 1
CBS Registry Error Total count: 1
Unavailable repair files:
servicing\packages\Package_for_KB2454826~31bf3856ad364e35~x86~~6.1.2.0.mum
servicing\packages\Package_for_KB2454826~31bf3856ad364e35~x86~~6.1.2.0.mum
servicing\packages\Package_for_KB2454826~31bf3856ad364e35~x86~~6.1.2.0.cat
servicing\packages\Package_for_KB2454826~31bf3856ad364e35~x86~~6.1.2.0.cat

Help would be greatly appreciated

Please & Thank you
Jim
