1. Boot the computer from your Windows 7 installation DVD/USB.
NOTE: Make sure that the CD/DVD drive is selected first and your HDD second in the boot priority order in your BIOS settings. Usually it is by default.
2. If using a DVD, then when prompted, press any key to boot from the installation DVD. (See screenshot below)
NOTE: You will only have about 8 seconds to press this key. If you miss it, you will have to restart the computer.3. Set up your language preferences, and click on the
Next button. (See screeshot below).
4. Click on the
Install Now button to start the installation. (See screenshot below)
5. Check the
I accept the license terms box, and click on
Next. (See screenshot below)
6. Click on the
Custom (advanced) option. (See screenshot below)
7. Select the hard drive or partition that you want to install Windows 7 on, and click on the
Drive Options (advanced) link. (See screenshot below)
NOTE: If the hard drive or partition that you have selected is unallocated, then you can just click on the Next button instead and go to step 9 since it is already empty.
WARNING: You may not have the Drive options (advanced) option unless the installation is done at boot, and not running the installation from within your current OS.
8. Select a hard drive or partition that you want to do a clean install of Windows 7 on, do what
Drive options (advanced) you want if any, and click on the
Next button when finished. (See screenshot below)
NOTE: If you have your hard drives in a RAID setup, then connect your USB key with the RAID drivers on it, click on Load Driver, select the folder on the USB key that contains the RAID drivers to install them. Afterwards, your RAID drives will be available to select from to install Windows 7 on.
Tip
Drive options (advanced)
- If you have more than one partition for a disk # (hard drive) and want to get rid of them to make that disk # one partition drive again, then select a partition with that disk # and click on the Delete option for each partition with the same disk # until there is only one "unallocated space" with that disk # left as in the screenshot below.
- To shrink an existing partition to create another partition to install Windows 7 on instead, select the partition you want shrink and click on the Extend option. Type in how much in MB (1 GB = 1024 MB) that you want to shrink it by. Now select the new extended partition.
Note
The
100 MB System Reserved partition is used for the Boot Manager code, BCD (Boot Configuration Database),
System Recovery Options (Windows RE), and start up files for
BitLocker (if turned on).
- If you want to have the 100 MB System Reserved partition in addition to the Windows 7 C: partition on a HDD or SSD after installation, then you would need to make sure that all partitions on the drive have been deleted until it is only unallocated space. Next, select the unallocated drive to install Windows 7 on. If there are no partitions on the disk, you will get the 100 MB System Reserved.
- If you do not want to have the 100 MB System Reserved partition and only the Windows 7 C: partition on a HDD or SSD after installation, then select a formatted partition or drive to install Windows 7 on. If there are any partitions on the disk, you won't get the 100 MB System Reserved.
9. The installation of Windows 7 will now begin. (See screenshot below)
NOTE: During the installation process, your screen may flash and computer will restart a few times.
10. After the final restart, you will see this screen for a moment. (See screenshot below)
11. Type in any
user name that you want for your default administrator account and any
computer name, then click on the
Next button. (See screenshot below)

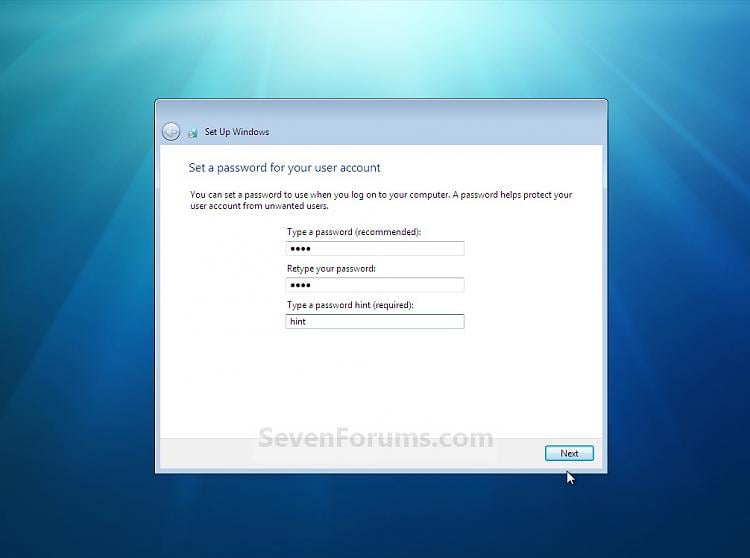

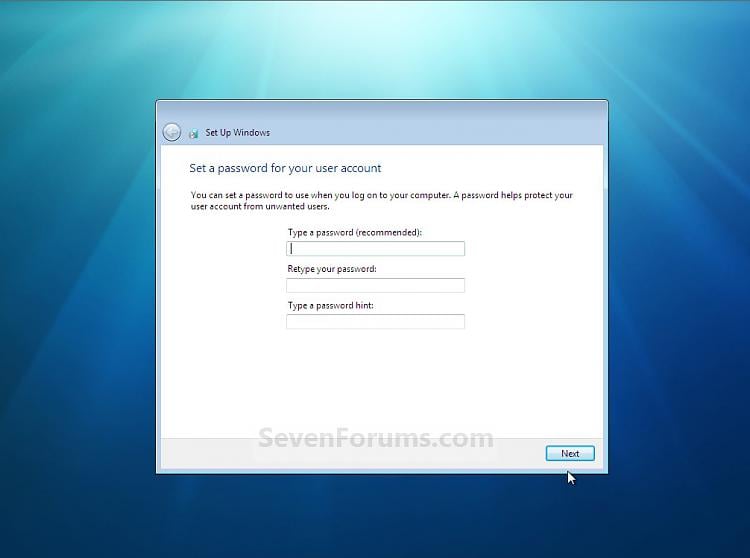

12. Type in a
password you want for your default administrator account. Type it in again to confirm it, then type in a hint for your password. Click on the
Next button. (See screenshots below)
WARNING: The password will be case sensitive. The hint will be seen by all users on the computer, so do not type your password as the hint.
NOTE: If you do not want your your user account password protected at this time or do not want to have to type in a hint, then leave this blank and click on the Next button. You can create a password later for your user account in the Control Panel User Accounts after installing Windows 7 without having to type in a hint.
13. Type in your Windows 7
product key number. (See screenshot below step 14)
14. Uncheck the
Automatically activate Windows when I'm online box, then click on the
Next button. (See screenshot below)
NOTE: You can activate Windows 7 later after you make sure it is running properly. (See step 21 below)
If you chose to automatically activate Windows 7 online when you set up your computer, automatic activation begins trying to activate your copy of Windows three days after you log on for the first time.

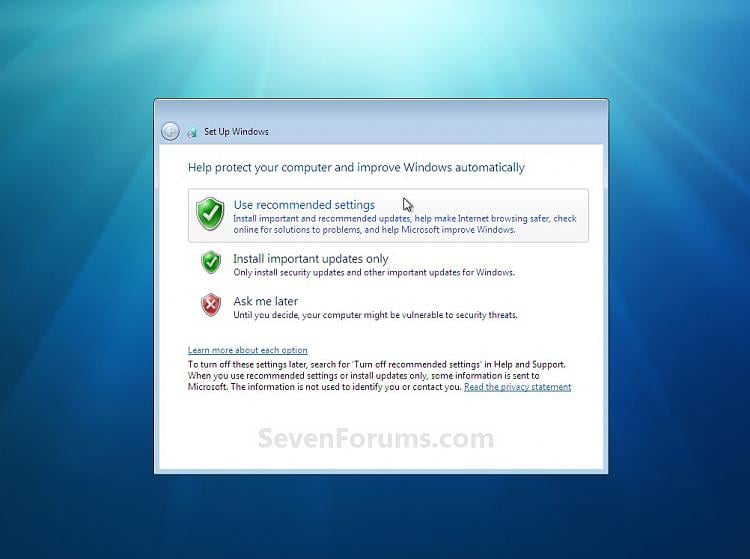

15. Click on
Use recommended settings to allow automatic Windows Updates and proper security settings. (See screenshot below)
NOTE: For more information about these recommended settings, click on the Learn more about each option link in this window.
16. Select your
time zone and set your
time and
date settings, then click on the
Next button. (See screenshot below)
17. Click on your computer's correct
network location type location to select it and have the settings for that location automatically applied. (See screenshot below)
18. Windows 7 will now prepare your desktop to startup. (See screenshots below)
19. When it's finished and you are at your desktop, you can now
remove or disconnect your installation DVD/USB from step 1 above.
20. Install all of your device drivers, then Windows Updates.
21. Refresh your Windows Experience Index (WEI) score.
22. When finished, all you will need to do is to
activate Windows 7. (See screenshot below)
