How to Create a "Aero Troubleshoot" Shortcut in Windows 7
Information
This will show you how to create or download a Windows 7 Aero Troubleshoot shortcut.
Aero is not included in Windows 7 Home Basic or Windows 7 Starter editions.
You can also Pin to Taskbar or Pin to Start Menu this shortcut, or move where you like for easy use.
Aero is not included in Windows 7 Home Basic or Windows 7 Starter editions.
You can also Pin to Taskbar or Pin to Start Menu this shortcut, or move where you like for easy use.
Tip
You could also place any or all troubleshooting shortcuts that you would like to use as well from the related tutorials box at the bottom of this tutorial into a new folder, then pin the folder to the taskbar to make using them easier.
EXAMPLE: Troubleshooting Aero
OPTION ONE
To Download the "Aero Troubleshoot" Shortcut
1. Click on the Download button below to download the file below.
Aero_Troubleshoot.zip
Download
2. Click on Save, and save the .zip file to the desktop.
3. Open the .zip file and extract the Aero Troubleshoot shortcut to the desktop.

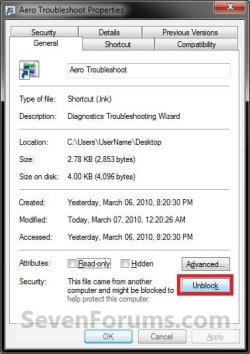

4. Right click on the Aero Troubleshoot shortcut, and click on Properties, General tab, and on the Unblock button. (See screenshot below)
NOTE: If you do not have a Unblock button under the General tab, then the shortcut is already unblocked and you can continue on to step 5.
5. Move the shortcut to where you like for easy use.
6. When done, you can delete the downloaded .zip file on the desktop if you like, or save it to use again.
OPTION TWO
To Manually Create the "Aero Troubleshoot" Shortcut
1. Right click on a empty area on desktop, and click on New and Shortcut.
2. Type the location below into the location area, and click on the Next button. (See screenshot below)
%systemroot%\system32\msdt.exe -id AeroDiagnostic
3. Type Aero Troubleshoot for the name, and click on the Finish button. (See screenshot below)
NOTE: You can name this anything you would like though.
4. Right click on the new Aero Troubleshoot shortcut on the Desktop and click on Properties.

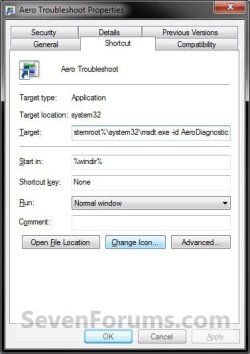

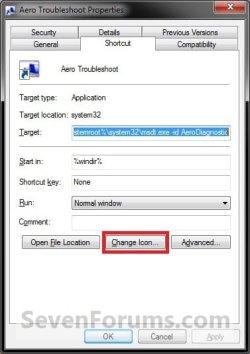

5. Click on the Shortcut tab, then click on the Change Icon button. (See screenshot below)
6. In the line under "Look for icons in this file", type the location below and press Enter. (See screenshot below)
%SystemRoot%\diagnostics\system\AERO\DiagPackage.dll
7. Select the icon highlighted in blue above and click on OK. (See screenshot above)
NOTE: You can use any icon that you would like instead though.
8. Click on OK. (See screenshot below)
9. Move the shortcut to where you like for easy use.
That's it,
Shawn
