asus m2n 5 gb installed 3 gb used

fess

New member
Local time
10:52 AM
Messages
4
hello
i have asus m2n motherboard and my problem is: 5gb memory installed,but windows write: 3gb used. in bios is recognizes all memory. what can I do to use all the memory?
the "newest" bios is installed. memory hole remapping enabled.


My Computer My Computer

At a glance

Windows 7 Ultimate x64amd athlon 5600+5gb ddr 800mhzhd4830
Computer Manufacturer/Model Number
windows 7 ultimate x64
OS
Windows 7 Ultimate x64
CPU
amd athlon 5600+
Motherboard
asus m2n
Memory
5gb ddr 800mhz
Graphics Card(s)
hd4830
Sound Card
sb live!
Monitor(s) Displays
samsung 943nw
Hard Drives
250 GB sata hitachi

My Computer My Computer

At a glance

Windows 7 ultimate 64 bit / XP Home sp3intel Core 2 Duo E8400 3.0ghz8 gigs 1066 OCZ Fata1tyEVGA GTX 580 Call of Duty Black Ops Edition
Computer Manufacturer/Model Number
Self Built
OS
Windows 7 ultimate 64 bit / XP Home sp3
CPU
intel Core 2 Duo E8400 3.0ghz
Motherboard
Asus P5ND bios 1401
Memory
8 gigs 1066 OCZ Fata1ty
Graphics Card(s)
EVGA GTX 580 Call of Duty Black Ops Edition
Sound Card
Creative Soundblaster Audigy 2zs
Monitor(s) Displays
Asus 24in LCD's 2MS X2
Screen Resolution
1920x1080p @60Hz
Hard Drives
WD Caviar 500 Black/ WD Caviar 200 Blue
PSU
OCZ 700W GameXtreme
Case
NZXT Apollo
Cooling
Corsair H50 CPU/120mm x3 /60mm x2 /Corsair Dominator Ram
Keyboard
Logitech Bluetooth Wireless MX5000
Mouse
Logitech Bluetooth Wireless MX1000
Internet Speed
Download 19.83 Upload 0.97
Other Info
Logitech Z2300 Speakers/ Bose Noise Cancelling Headphones/Avermedia PCI-e Hybrid TV Bravo/Epson NX415 all in one/ 4 Port Powered USB Hub/ LG 10x Bluray Burner /TSST Corp DVDRW External
rere

here is the screenshot


Attachments

  • 7.JPG
    83.5 KB · Views: 34

My Computer My Computer

At a glance

Windows 7 Ultimate x64amd athlon 5600+5gb ddr 800mhzhd4830
Computer Manufacturer/Model Number
windows 7 ultimate x64
OS
Windows 7 Ultimate x64
CPU
amd athlon 5600+
Motherboard
asus m2n
Memory
5gb ddr 800mhz
Graphics Card(s)
hd4830
Sound Card
sb live!
Monitor(s) Displays
samsung 943nw
Hard Drives
250 GB sata hitachi
here is the screenshot

2GB is hardware reserved most probably for your graphics card
Go to msconfig>boot>advanced options and uncheck maximum memory

Rest all options in your BIOS then re-eanble memory remap


My Computer My Computer

At a glance

Windows 10 Pro x64, Arch LinuxIntel Core 2 Quad Q8200 OC'd 3.08GHz8GB DDR2 900MhzMSI GT730 2GB GDDR5 (Kepler)
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom Build
OS
Windows 10 Pro x64, Arch Linux
CPU
Intel Core 2 Quad Q8200 OC'd 3.08GHz
Motherboard
Asus Rampage formula LGA775
Memory
8GB DDR2 900Mhz
Graphics Card(s)
MSI GT730 2GB GDDR5 (Kepler)
Sound Card
Supreme FX2
Monitor(s) Displays
Samsung LS22F350 LED
Screen Resolution
1080P
Hard Drives
Kingston SSDNow UV400 120GB, 500GB Hitachi, 2TB Samsung, 500GB Seagate FreeAgent, 640GB Samsung, 160GB Toshiba (Arch)
PSU
AeroCool 500W Bronze
Cooling
Cooler Master V6 + 3X fans
Keyboard
Prolink keyboard
Mouse
Logitech M705
Internet Speed
1MiB/s
Browser
Chrome Beta

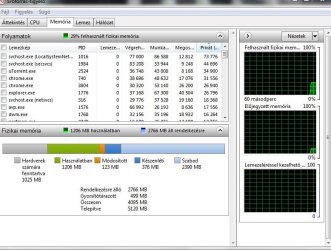

+1GB use :)

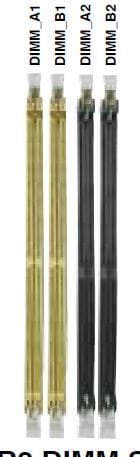

i put 2*2GB in the yellow socket(dimm A1,dimm B1) ,and 1gb in the black socket(DIMM A2). is this good?


Attachments

  • 1.JPG
    82.8 KB · Views: 8
  • Képkivágás.JPG
    19.8 KB · Views: 3
  • 2.JPG
    16.7 KB · Views: 4

My Computer My Computer

At a glance

Windows 7 Ultimate x64amd athlon 5600+5gb ddr 800mhzhd4830
Computer Manufacturer/Model Number
windows 7 ultimate x64
OS
Windows 7 Ultimate x64
CPU
amd athlon 5600+
Motherboard
asus m2n
Memory
5gb ddr 800mhz
Graphics Card(s)
hd4830
Sound Card
sb live!
Monitor(s) Displays
samsung 943nw
Hard Drives
250 GB sata hitachi
Do you have a separate graphics card, or is it the onboard GPU?


My Computer My Computer

At a glance

W7 Professional x64AMD Athlon II X3 445 Rana 3.10 GHzPNY XLR DDR3 1600 4x2GBNVIDIA GeForce GTS 450 (fermi) 1GB GDDR5
Computer Manufacturer/Model Number
Pugh Technologies
OS
W7 Professional x64
CPU
AMD Athlon II X3 445 Rana 3.10 GHz
Motherboard
MSI 870A-G54
Memory
PNY XLR DDR3 1600 4x2GB
Graphics Card(s)
NVIDIA GeForce GTS 450 (fermi) 1GB GDDR5
Sound Card
Realtek ALC892 onboard
Monitor(s) Displays
ASUS VE205t, Viewsonic VX2035WM
Screen Resolution
1600x900, 1600x1050
Hard Drives
977GB Hitachi Hitachi HDS721010CLA332
244GB Western Digital WDC WD2500AAJS-65B4A0
488GB Western Digital WDC WD5000AAJS-00A8B0
488GB Western Digital WDC WD5000AAKS-00UU3A0
PSU
Antec EarthWatts EA650 650W
Case
ThermalTake Armor A90 Mid Tower
Cooling
3x 120mm in, 1x 120mm & 200mm out, self built hydro-cooler
Keyboard
Logitec 55
Mouse
Razer Deathadder
Internet Speed
20 Mbps D/L, 9 Mbps U/L

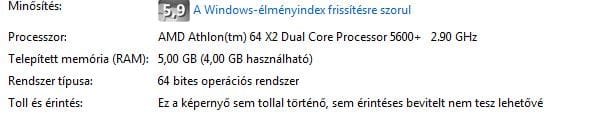

it's worked. " msconfig>boot>advanced options and uncheck maximum memory" i was deleted from the pipe,reboot,then see all memory :D
very thank you for your help


Attachments

  • Képkivágás.JPG
    19.3 KB · Views: 10

My Computer My Computer

At a glance

Windows 7 Ultimate x64amd athlon 5600+5gb ddr 800mhzhd4830
Computer Manufacturer/Model Number
windows 7 ultimate x64
OS
Windows 7 Ultimate x64
CPU
amd athlon 5600+
Motherboard
asus m2n
Memory
5gb ddr 800mhz
Graphics Card(s)
hd4830
Sound Card
sb live!
Monitor(s) Displays
samsung 943nw
Hard Drives
250 GB sata hitachi
it's worked. " msconfig>boot>advanced options and uncheck maximum memory" i was deleted from the pipe,reboot,then see all memory :D
very thank you for your help

Glad I could help :)
