BSOD at random situations caused by atikmdag.sys

[jtidd1]

Hello, im getting BSOD on our high spec PC's

we have 20 Lenovo M92p I7'S with AMD 8570 Graphics Card

Using the latest driver from AMD but also i have tried prevoius drivers.

I have uploaded a BSOD of event log error.

Please could someone assist me please?

Many Thanks



[Arc]

Lenovo M92p ... that means this one?

It runs with a 65W adapter? Where the AC Input Voltage Range - 100- 240Vac?

IMHO you should run it with the onboard intel graphics.



[jtidd1]

it is the M92P small form factor, which is not on their website anymore.

the card was bought and supplied with the machine through Lenovo

any other ideas please

Thanks
James



[Arc]

Neither model of M92P does has a PSU bigger than 450 watts. What is yours? Let us know.

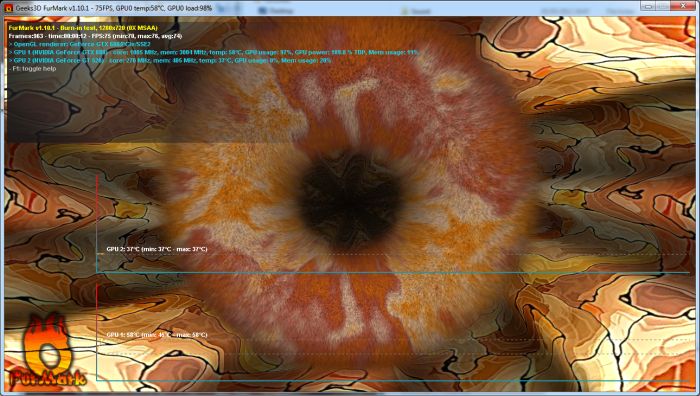

Also stress test the Graphics Card using Furmark.

Video Card - Stress Test with Furmark
​

Take a screenshot of the furmark window before closing it. Upload the screenshot for us.

Report us the heat of the computer after a couple of hours of your normal usage. Upload a screenshot of the summery tab of Speccy. Alternatively, you can publish a Speccy snapshot too: http://www.sevenforums.com/tutorials/311593-speccy-publish-snapshot-your-system-specs.html .

BTW, is the computer overclocked?

Also let us know which driver versions you have tried. Apparently the HD 8xxx OEM cards support these drivers: Desktop ..... but, I am thinking that the PSU may be the critical information here.
________________________________________

BugCheck 116, {fffffa800ba01010, fffff880030f031c, 0, d}

Unable to load image \SystemRoot\system32\DRIVERS\atikmpag.sys, Win32 error 0n2
*** WARNING: Unable to verify timestamp for atikmpag.sys
*** ERROR: Module load completed but symbols could not be loaded for atikmpag.sys
Probably caused by : atikmpag.sys ( atikmpag+b31c )

Followup: MachineOwner
---------



[jtidd1]

Thanks for the reply, i have installed it, but i cannot run the program as it tells me there is a problem running and closes, i have tried 3 different versions

Help?



[jtidd1]

i have run a burn in test and it levelled out at 56c, i have attached a screenshot of the main screen, is this sufficent. the PSU is 240w, this machine was supplied by lenovo



[jtidd1]

here is the attachment of the results after a 15 minute burn test



[Arc]

We need this screenshot .... of furmark window.

And, 240 watts PSU is never enough to run a computer like yours. Get a bigger one, of at least 500 watts. Otherwise the crashes will continue. Poor casing and power supply is always the basic problem with OEM computers; but 240 watts is ridiculously low.
