Configure front panel in zebronics motherboard

[vallamuthu]

Hi,

I bought Zebronics cabinet and the mother boad is DZ75ML-45k. How to configure the front panel. the cabniet has the following pins
1. GND
2,MIC in
3 Mic power
4 R-out R-ret
5 L-out L-ret.

Thanks in advance,
Vallamuthu



[Northernsoul55]

Hi,

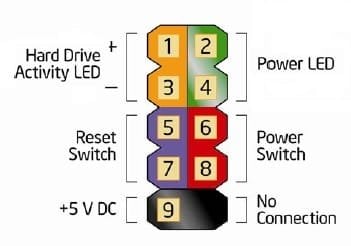

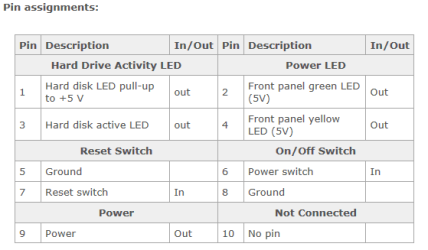

According to Intel, these are your front panel connectors for your motherboard:

Intel® Desktop Boards use a 9-pin chassis front panel header.

And according to Zebronics: :ar: Hardware Installation - Zebronics - Always Ahead - Largest Range of Peripherals

So I am unsure as to your pins on the cabinet, are these not for rear?
Can you provide a Screenshot or layout?

1. GND
2,MIC in
3 Mic power
4 R-out R-ret
5 L-out L-ret.


Cheers

Dave



[vallamuthu]

Hi Dave,


Thanks for your reply. I 've configured the HDD LED, resert swithch, power switch, pwer led.



I need to configure the front panel audio devices. The following pins are the front panel configuration pins
1. GND
2,MIC in
3 Mic power
4 R-out R-ret
5 L-out L-ret.


Thanks with Regards,
Vallamuthu M



[Northernsoul55]

Hi,

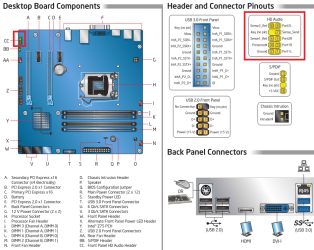

Here is all the layout for your motherboard, I have highlighted in red the Audio connections available
and the Front Panel header location on the Motherboard.



The audio connection as you can see differs from what you show me in the pic.

This is usually the type connector used to connect the audio to this motherboard:


What is the exact model of your Zebtronics cabinet?
Do you have the instruction book that came with cabinet and pin layout suggestions?


Perhaps the front panel connectors are not compatible with this motherboard?

cheers

Dave



[Dwarf]

As part of the HD audio specifications, compatibility has to be maintained with both HD and AC'97 front panels (although with the latter, i.e. AC'97, functions such as automatic muting of speakers connected to the rear sockets will not occur).

With reference to the post above, specifically the audio header highlighted in red, make the connections as follows:

GND 2
MIC-IN 1
MIC-POWER 3
R-OUT 5
L-OUT 9

There is no point in connecting either of the returns, i.e. R-RET or L-RET.



[vallamuthu]

Hi Dave,

My cabnit is 'ZEBRONICS LAVA'. I bought it on 2007. I've lost the instruction book.

Thanks with Regards,
Vallamuthu M



[Northernsoul55]

Thanks, but Dwarf has given the instructions on how to wire the Front pins:

With reference to the post above, specifically the audio header highlighted in red,
make the connections as follows:

[B]GND 2[/B]
[B]MIC-IN 1[/B]
[B]MIC-POWER 3[/B]
[B]R-OUT 5[/B]
[B]L-OUT 9[/B]

There is no point in connecting either of the returns, i.e. R-RET or L-RET.

cheers

Dave



[vallamuthu]

Hi,

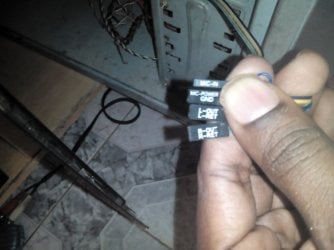

I'v connected like below. But it's not working.
GND 2
MIC-IN 1
MIC-POWER 3
R-OUT 5
L-OUT 9
But it's not working. My actual problem is that 5.1 surround sound is not working. In my cabinet doesn't have the "HD audio" Pin's. With out front panel configuration the 5.1 is not work.

Thanks with regards,
Vallamuthu M



[Northernsoul55]

Hi,

Like I said previously, I do not think your Cabinet Front pins are compatible with the Motherboard
as you have no HD Audio connector to connect to the header.

Cheers

Dave



[vallamuthu]

Hi Dave,

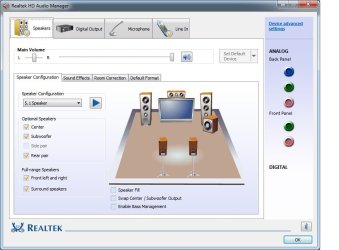

To-day i've bought new zebronics cabinet and configured pin. But the 5.1 surround sound is not working. i've check in the real tek HD audio. Kindly find the screen shot.


Thanks with regards,
Vallamuthu M



[Northernsoul55]

Hi,

Are you getting any sound at all or is it just the surround sound?

Have you got the latest Realtek drivers installed?

Check to see if your speakers are set as default playback device:

Start>Control Panel>Sound

cheers Dave
