Will my mother board support Nvidia GT640.

I'm confused about the PCI 3 support for this card.

Will my mother board support PCI 3 graphics card?


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Intel
OS
W7 32 bit
CPU
2.2 core 2 duo
Motherboard
DG31PR
Memory
4 GB
Graphics Card(s)
Nvidia GT220 updated to XFX HD 7850 2GB
Sound Card
USB Steelseries
Monitor(s) Displays
View Sonic 17 ''
Yes it will work fine. All PCI-e 3.0 x16 cards are backward compatible with older PCI-e 1.0/2.0. Although do be sure that it won't interfere with anything you have plugged into PCIe x1 slot.


My Computer My Computer

Computer Manufacturer/Model Number
Me
OS
Windows 7 Pro x64
CPU
Intel Core i7 920
Motherboard
ASUS P6T Deluxe V2
Memory
Corsair XMS3 12GB (3x2GB) DDR3 1333
Graphics Card(s)
EVGA GTX 470 1280MB GDDR5 DX11
Monitor(s) Displays
ASUS VW246H | ACER AL2216W
Screen Resolution
3600x1080
Hard Drives
1x Corsair Vertex 3 SSD (120GB)
1x Corsair Vertex 2 SSD (60GB)
2x Western Digital Black (500GB/1TB)
1x External WD Green eSATA (1TB)
PSU
Corsair 850HX
Case
Velocity Micro FullTower
Keyboard
Logitech G110
Mouse
Logitech G500
Internet Speed
http://www.speedtest.net/result/1226664359.png
Antivirus
MSE
Browser
Chrome
Other Info
Logitech Z-5500 5.1 Surround Sound
Logitech C260 Webcam
Creative Fatal1ty Headset
I have a 450W SMPS, Core2Duo 2.2 Ghz, 4 gigs of RAM and current GPU is GT220.

I guess the GT640 uses 350W?

Hope mine SMPS is poweful enough to support this GPU.

I do have one more question here: Will my motheboard support DDR5 GPUs?

Last edited:

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Intel
OS
W7 32 bit
CPU
2.2 core 2 duo
Motherboard
DG31PR
Memory
4 GB
Graphics Card(s)
Nvidia GT220 updated to XFX HD 7850 2GB
Sound Card
USB Steelseries
Monitor(s) Displays
View Sonic 17 ''
The memory on the card has no relation to the memory used on the motherboard.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Me
OS
Win 7 Ultimate x64
CPU
FX-8350 @ 4.6 GHz so far
Motherboard
Asus M5A97 EVO
Memory
ADATA XPG V1 Series Black 8GB DDR3 1600
Graphics Card(s)
Sapphire R9 270x Dual-X
Sound Card
Xonar DGX w/ Corsair Vengence 1300
Monitor(s) Displays
Acer S232HL Abid
Screen Resolution
1920x1080
Hard Drives
120 GB OCZ Vertex 3
500 GB Seagate 7200.12
PSU
Antec Earthwatts 650W Green
Case
Antec Three Hundred
Cooling
Cooler Master 212 EVO
Keyboard
Logitech G510
Mouse
Logitech G500s
Internet Speed
35000/3000
eVGA lists a 350W PSU w/ 20A available at +12V as the minimum requirement for their GT640 cards. The card itself is supposed to use less than 65W. (It has no auxiliary power connections, so it would be 75W or less to stay within the PCI-E spec.)

You may wish to check the label on your PSU to see whether it can do the 20A. For example: this one:

RAIDMAX:: RX-450K

is nominally a 450W PSU, but it offers only 21A at +12V. That's really poor for a "450W" PSU, but it's still within the requirements.


My Computer My Computer

Computer Manufacturer/Model Number
homegrown
OS
Windows 7 Pro X64 SP1
CPU
Intel Core I7-3930k
Motherboard
Asus P9X79 Pro
Memory
16 GB Gskill DDR3-2133
Graphics Card(s)
eVGA GTX680
Sound Card
Creative X-Fi Titanium
Monitor(s) Displays
As PA246Q
Screen Resolution
1920 X 1200
Hard Drives
Corsair Force GT, 120 GB
WDC 1.5TB Caviar Black
PSU
PCP&C Silencer 750 Crossfire
Case
Silverstone FT02
Cooling
Noctua NH-D14
Keyboard
cheap Logitech USB
Mouse
Microsoft Intellimouse Explorer (old optical) USB
Internet Speed
6Mb cable
Other Info
Pioneer BDR-205
Samsung SH-203B
Monsoon 5.1 speakers

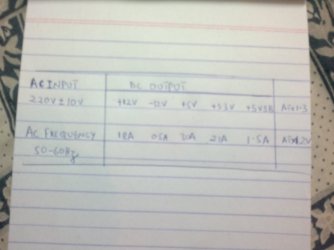

This is the tab column on my SMPS:

I cant understand a bit of it. bobkn@ is it enough for GT640 graphics card?


Attachments

  • SMPS.jpg
    272.2 KB · Views: 8

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Intel
OS
W7 32 bit
CPU
2.2 core 2 duo
Motherboard
DG31PR
Memory
4 GB
Graphics Card(s)
Nvidia GT220 updated to XFX HD 7850 2GB
Sound Card
USB Steelseries
Monitor(s) Displays
View Sonic 17 ''
This is the tab column on my SMPS:

I cant understand a bit of it. bobkn@ is it enough for GT640 graphics card?

If you rely on eVGA's requirement, 20A (Amperes) at +12V, not quite. Your PSU offers a maximum of 18A. That's very weak for a "450W" PSU, unless it has more +12V rails than you list.

Your PSU is almost certainly adequate anyway. I'm not sure which Core2 Duo 2.2 GHz CPUs you have, but the most power-hungry one that I find (ARK | Intel® Core) is rated at 65W. If the eVGA spec is written to cover CPUs that consume a lot of power (125W), then derating their requirement for the CPU that you actually have would translate to about a 300W PSU that can deliver 15A or more at +12V.

I'll leave it to others to warn you about the risks of cheap power supplies.


My Computer My Computer

Computer Manufacturer/Model Number
homegrown
OS
Windows 7 Pro X64 SP1
CPU
Intel Core I7-3930k
Motherboard
Asus P9X79 Pro
Memory
16 GB Gskill DDR3-2133
Graphics Card(s)
eVGA GTX680
Sound Card
Creative X-Fi Titanium
Monitor(s) Displays
As PA246Q
Screen Resolution
1920 X 1200
Hard Drives
Corsair Force GT, 120 GB
WDC 1.5TB Caviar Black
PSU
PCP&C Silencer 750 Crossfire
Case
Silverstone FT02
Cooling
Noctua NH-D14
Keyboard
cheap Logitech USB
Mouse
Microsoft Intellimouse Explorer (old optical) USB
Internet Speed
6Mb cable
Other Info
Pioneer BDR-205
Samsung SH-203B
Monsoon 5.1 speakers

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Me
OS
Win 7 Ultimate x64
CPU
FX-8350 @ 4.6 GHz so far
Motherboard
Asus M5A97 EVO
Memory
ADATA XPG V1 Series Black 8GB DDR3 1600
Graphics Card(s)
Sapphire R9 270x Dual-X
Sound Card
Xonar DGX w/ Corsair Vengence 1300
Monitor(s) Displays
Acer S232HL Abid
Screen Resolution
1920x1080
Hard Drives
120 GB OCZ Vertex 3
500 GB Seagate 7200.12
PSU
Antec Earthwatts 650W Green
Case
Antec Three Hundred
Cooling
Cooler Master 212 EVO
Keyboard
Logitech G510
Mouse
Logitech G500s
Internet Speed
35000/3000
This is the tab column on my SMPS:

I cant understand a bit of it. bobkn@ is it enough for GT640 graphics card?

If you rely on eVGA's requirement, 20A (Amperes) at +12V, not quite. Your PSU offers a maximum of 18A. That's very weak for a "450W" PSU, unless it has more +12V rails than you list.

Your PSU is almost certainly adequate anyway. I'm not sure which Core2 Duo 2.2 GHz CPUs you have, but the most power-hungry one that I find (ARK | Intel® Core) is rated at 65W. If the eVGA spec is written to cover CPUs that consume a lot of power (125W), then derating their requirement for the CPU that you actually have would translate to about a 300W PSU that can deliver 15A or more at +12V.

I'll leave it to others to warn you about the risks of cheap power supplies.

bobkn@ that's the exact CPU i have, e4500.

After a bit of more research, i found that HD7750(almost same rate as GT640) out performs 640.

I was willing to go with: Amazon.com: EVGA GeForce GT 640 4096MB GDDR3 Single Slot, Dual DVI and mHDMI Graphics Card 04G-P4-2647-KR: Computers & Accessories

but now; I'm considering: Amazon.com: ASUS HD7750-1GD5-V2 AMD Radeon HD 7750 VGA 1 GB GDDR5 Graphics Card: Computers & Accessories

Hope DDR5 isn't an issue with my MB(as stormy13@ mentioned).

We do have a DDR3 version of it: Amazon.com: Gigabyte AMD Radeon HD 7750 2GB GDDR3 VGA/2DVI/HDMI PCI-Express Video Card GV-R775OC-2GI: Computers & Accessories

Not very sure what GPU to purchase. Also, I will more like buy a new SMPS for this new GPU.

Your inputs would be appreciated.

TIA!
