Solved Event 1096, GroupPolicy Access is denied

[Mark Foley]

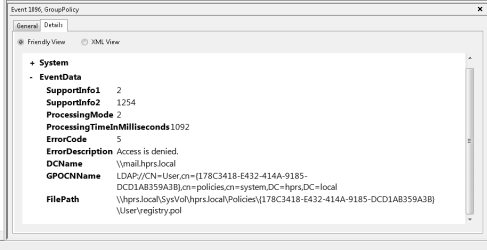

I've been struggling for months to solve this problem; no joy from any other forums yet. I have and Active Directory domain with several Windows 7 workstations as domain members. The AD/DC controller is Samba4. This has been working well for about 4 years. Sometime during the past year something happened and now a domain user logging onto another workstation for the first time no longer gets his/her redirected desktop. I get an event 1085 warning, "GroupPolicy. Windows failed to apply the folder Redirection settings." The problem that needs to be solved is apparently an event 1096 GroupPolicy error, access denied on the file \\hprs.local\SysVol\hprs.local\Policies\{178C3418-E432-414A-9185-DCD1AB359A3B]\User\registry.pol. See attached image. I've checked and adjusted sysvol folder and share permissions to no avail. I'm quite out of ideas. I hope someone on this forum can help.



[Paul Black]

Hi Mark Foley, welcome to Seven Forums,

I have not had any dealings with Group Policy and I know that this will probably not make a difference but the DCName has mail in it > mail.hprs.local.

I also saw that this post had had over 1,000 views so I thought I would try and help!

It just stuck out to me so I thought I would mention it!



[Mark Foley]

Thanks for your response Paul. The domain is hprs.local and the AD/DC host is mail, so mail.hprs.local is the FDQN of that host. Its name is 'mail' because it is also the mail server. I don't think that's a problem.



[Paul Black]

Hi Mark Foley,

Is this of any use: The group policy client service failed the logon.

I hope this helps!



[Mark Foley]

OK! I have a solution thanks to the brilliant folk at the samba maillist.

As the domain administrator, open a Windows Explorer (Computer) window and enter \\addchost.domain in the address bar. In my case the location is \\mail.hprs.local. Then, right click on sysvol > Properties > Security. Make sure all settings are as follows:

sysvol FOLDER Permissions:

CREATOR OWNER
special
(Advanced) Subfolders and files only
Full Control - everything is checked)

CREATOR GROUP Subfolders and files only
special
(Advanced) Subfolders and files only
Traverse folder / execute file
List folder / read data
Read attributes
Read extended attributes
Read permissions

Authenticated Users
Read & Execute
List folder contents
Read
(Advanced) This folder, Subfolders and files
Traverse folder / execute file
List folder / read data
Read attributes
Read extended attributes
Read permissions

SYSTEM
Full control
(advanced) This folder, subfolders and files
full control - everything is checked

Administrators (HPRS\Administrators)
Full control
(advanced) This folder, subfolders and files
full control - everything is checked

In addition to these settings, on the 'Permissions > Edit' dialog, I checked "Apply these permissions to objects and/or containers ...", and on the 'Permission' tab (after setting 'Edit') I checked "Replace all child object permissions with inheritable permissions from this object".

I don't know specifically if checking these options is necessary, but it didn't hurt.

Then, I set Share Permissions: In the Start > Search box I typed 'Computer Management' > Action > Connection to another computer, and entered my AD/DC host "mail". Then expand System Tools > Shared Folders > Shares > right-click sysvol > Properties > Share Permissions. Set as follows:

sysvol SHARE Permissions:

EVERYONE: READ
Authenticated Users: FULL CONTROL
HPRS\Administrators: FULL CONTROL
SYSTEM, FULL CONTROL

At this point I restarted Samba. Again, not sure I had to do that here, but it didn't hurt.

Next, as the domain administrator I ran Administrative Tools > Group Policy Management > expand Group Policy Objects. I clicked on each Policy in turn. Each one gave me a message to the effect that the permissions were inconsistent with the AD -- sorry, I didn't think at the time to get the exact message, but it was something like that. The dialog asked if I wanted to update the permissions and I answered OK to this for each policy. After exiting GPO Management, I restarted Samba4 again and rebooted one of the Windows 7 workstations (with the idea that it would refresh GPOs upon reboot).

Then I tried logging in as a user who I confirmed did NOT have an account on this workstation. Voila! She got her redirected desktop. Computer > Desktop > properties showed the location as \\mail.hprs.local\Users\userid\Desktop, not C:\Users\...! More importantly, checking the event log showed only this for Group Policy: "The Group Policy settings for the user were processed successfully".

I've spent MONTHS on this and finally, FIXED!



[Paul Black]

Hi Mark Foley, I am glad you have resolved it and thanks for the feedback. I am sure it will help others.
