HDMI Audio Drivers for Kaby Lake HD620

[goopy]

Greetings.
Trying to set up w7 on a Kaby Lake HD620 system, but failed to get the HDMI Audio Driver (6.16.0.3200) that's included in the graphics package (4860) to install. Appreciate if anyone can kindly suggest how to get around this, or provide download links to versions that will work.
Many thanks and best regards,



[Paul Black]

Hi goopy,

Please edit your profile with ALL your system and hardware specifications. This is in your UserCP > Edit System Spec setup. It will help us to help you!

The tutorial below [Published by Brink and written by CyberZeus] will enable you to see ALL of your system information. There is also an option that will enable you to easily fill out your system specifications here at Seven Forums easier.

How to See Your System Specs with "System Info"

I mentioned this in another of your threads.

I hope this helps!



[SIW2]

View attachment INTEL-DisplayAudio-6.16-AND10.22-WIN7x64.zip



[goopy]

Many thanks for the link SIW2, but still not working.



[SIW2]

Atak uses Driver Version: 21.20.16.4590.

Maybe compare the IntcDaud.inf from what I uploaded with what it says in your version.
You can use Winmerge or similar to do the comparison
WinMerge



[AddRAM]

Any and all your drivers should be on your motherboard disc.

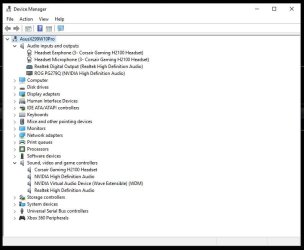

Please post a shot of Device Manager with the sound section expanded.

Example:



[goopy]

Atak uses Driver Version: 21.20.16.4590.

Maybe compare the IntcDaud.inf from what I uploaded with what it says in your version.
You can use Winmerge or similar to do the comparison
WinMerge

Thanks SIW2. It's the same as the 3197 driver you posted earlier.
There's also a 2013 vintage 3131 version available on muc, also not working.

It appears ms has gone all out to ensure w7 is not to be used on kaby lake.



[SIW2]

Check the thread here, see if anyone there has the answer

this thread

He seems to using an older graphics card without any problem. Maybe that is the answer.



[SIW2]

Intel Preps New H310 Chipset Revision With Windows 7 Support For Coffee Lake



[goopy]

Check the thread here, see if anyone there has the answer

this thread

He seems to using an older graphics card without any problem. Maybe that is the answer.

Thanks for the link, SIW2.


1. Looks like Mr Atak is also waging a one man campaign to keep w7 alive. Thumbs up to both of you.
2. Mivas sesm to be mixing two sets of drivers components, but not very clear which are the ones to be switched before or after installation. Could you be kind enough to decipher what exactly he did?
3. Sheehan had a HDMI audio issue, but there was no follow up. I was not able to locate the w7 4691 package he mentioned. Could you help?
4. While I applaud the decision to offer w7 support for h310, aren't these MS's decision alone?

Many thanks and best regards,



[SIW2]

The mobo manufacturers are supplying the win 7 drivers for their mobos. They can't supply the drivers for graphics cards or cpu - that is up to Intel,Amd, etc to do. How much MS are leaning on them, I don't know.

It looks like those new 310 mobos will be fine for win 7, though maybe only with graphics cards that have win7 drivers.



[SIW2]

[solved] ASUS UX430UA Kaby Lake HD 620 HDMI Audio not working | tonymacx86.com


Kaby Lake HD620 working... | tonymacx86.com


Installing Intels Kaby Lake Drivers on a Windows 7 Laptop | Overclockers UK Forums



[goopy]

[solved] ASUS UX430UA Kaby Lake HD 620 HDMI Audio not working | tonymacx86.com


Kaby Lake HD620 working... | tonymacx86.com


Installing Intels Kaby Lake Drivers on a Windows 7 Laptop | Overclockers UK Forums

Thanks SIW2. Will need a bit of time to digest these.

Meanwhile, was given a set of drivers after much begging that did not have the audio hardware id 280B excised. Actually, the solution has been staring straight in my face all along. These 3164 audio drives are included in the 4508 gigabyte package that you had requested. Well done Gigabyte and John.

Did try to modify the IntcDaud.inf but failed to get the 3200 drivers installed. Perhaps you'd have better luck with that. Or perhaps version 3164 are indeed the last that will work with Kaby Lake in w7.

Many thanks and best regards.



[goopy]

1. For those who need it, here's the link to Gigabyte 4508 w7 graphics package courtesy of John.
http://download.gigabyte.us/FileList/Driver/mb_driver_vga_intel_21.20.16.4508_w7.zip

2. For those who like to experiment with the 4860 package, try the following procedure to modify IntcDAud.inf and igdlh64.inf:

(a) Insert your audio ID under [Intel.NTAMD64.6.1] in IntcDAud.inf of 6.16. folder. In most cases it's 280B.
(b) Make sure this ID matches the audio key under KBL specific section in igdlh64.inf.
(c) Make a duplicate of iSKLD_w7 section and call it iKBLD_w7, change all SKL reference to KBL.
(d) Copy all KBL hardware ID from w10 section and paste under w7 section, changing iKBLD_w10 to iKBLD_w7.
(e) Run igxpin.exe or setup. Ignore drivers warnings.

Feedback most welcome.
