HIS Radeon HD 6670 after processor overheat

Frtz

New member
Local time
8:03 PM
Messages
8
Location
Pennsylvania
Now, my graphic card's fan is at a constant 39%, when idle or gaming.
It seems to play games worse now, after my CPU overheated and my computer froze.

For example, I was playing Need for Speed World on Maximum settings at around 30FPS. Then my entire computer froze, and I had to shut it down by holding the power button for a few seconds. When I tried to start it back up, nothing appeared on the screen. My father took a look at it, and he said my processor overheated. So he cooled it down by removing it (I think) and got it working again. But now, the GPU fan speed is constantly 39%, and it plays games worse now. Need for Speed World at Max settings now plays at about 16 FPS.

I need Professional help.


My Computer My Computer

At a glance

Windows 7 Home Premium x64Pentium Dual-Core E5700 @ 3.00GHz6GB DDR3HIS ATi Radeon HD 6670 DDR3 1GB
Computer Manufacturer/Model Number
Dell Inspiron 560
OS
Windows 7 Home Premium x64
CPU
Pentium Dual-Core E5700 @ 3.00GHz
Motherboard
Dell 018D1Y
Memory
6GB DDR3
Graphics Card(s)
HIS ATi Radeon HD 6670 DDR3 1GB
Sound Card
Integrated
Monitor(s) Displays
HP 2009m
Screen Resolution
1600x900
Hard Drives
ST3750528AS
Seagate ST310005EXA101 (External)
PSU
Cooler Master 500W
Case
Dell Inspiron 560 Case
Keyboard
Logitech MK320 Wireless Keyboard/Mouse Combo
Mouse
Logitech MK320 Wireless Keyboard/Mouse Combo
Internet Speed
Download: 2.59Mb/s Upload: 0.60Mb/s Ping:93ms (Verizon)
Normally on an Intel chip it will auto shut down to keep from burning up, i would make sure the video card was seated good and all the wires were on tight, then reinstall the video drivers for your card. Just a few things to check before having to replace anything.


My Computer My Computer

At a glance

Windows 7 Home Premium 64 bitIntel Core 2 quad Extreme Q9770 @ 3.2 GHz4x2 GB Muskin 1600 MHz ramNVidia GTX 250
Computer Manufacturer/Model Number
Dell XPS 730
OS
Windows 7 Home Premium 64 bit
CPU
Intel Core 2 quad Extreme Q9770 @ 3.2 GHz
Memory
4x2 GB Muskin 1600 MHz ram
Graphics Card(s)
NVidia GTX 250
Sound Card
Soundblaster X-Fi Fatality Champion
Monitor(s) Displays
2 Dell 2007WFP Ultrascans
Screen Resolution
3360 x 1050
Hard Drives
WD Black 1TB sata, 2-WD Black 500 sata, 2-Seagate 500 Go external
PSU
1000 Watt
Cooling
air
Keyboard
MS Natrual Keyboard Pro
Mouse
Logitech Wireless Trackball
Internet Speed
DSL Elite
The first thing I would look into is why the cpu overheated. Even with the auto shut down in Intel chips damage can be done. Have you overclocked this computer?

Last edited:

My Computer My Computer

At a glance

Windows 10 Pro. 64/ version 1709 Windows 7 Pr...Intel i7-6800K @ 4.3Corsair Platinum 16 gig @2400EVGA GTX 1070 OC
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Home made Desktop
OS
Windows 10 Pro. 64/ version 1709 Windows 7 Pro/64
CPU
Intel i7-6800K @ 4.3
Motherboard
ASUS X-99 Deluxe II
Memory
Corsair Platinum 16 gig @2400
Graphics Card(s)
EVGA GTX 1070 OC
Monitor(s) Displays
Asus 27" LED LCD/VE278Q
Screen Resolution
1920-1080 or 1280-720 HDMI
Hard Drives
INTEL SSD 730-240 Gb Sata 3.0/
PSU
EVGA Platium 1200W
Case
Phanteks Luxe Tempered Glass 8 fans/ one radiator
Cooling
XSPC/ Water Cooled CPU
Keyboard
Das 4 Professional
Mouse
Logitech M705/MX Anywhere 2-S
Internet Speed
100 mbits
Antivirus
Microsoft Security Essentials/ Malwarebytes Premium 3.0/ SAS
Browser
I.E. 11 default/Firefox/ ISP Time Warner Cable/Spectrum
Other Info
LG BluRay Burner/
Sound system-KLipsch-THX/
Icy Dock ssd Hot Swap bays.
Are you maintaining fan control in your bios?


Attachments

  • bios-fan.gif
    106.8 KB · Views: 16

My Computer My Computer

At a glance

Systems 1 and 2: Windows 7 Enterprise x64, Wi...System 1: i7 [email protected], System 2: AMD FX-41...System 1: 8GB System 2: 8GBSystem 1: ATI FirePro V4800 System 2: Radeon ...
Computer Manufacturer/Model Number
Dell and Custom
OS
Systems 1 and 2: Windows 7 Enterprise x64, Win 8 Developer
CPU
System 1: i7 [email protected], System 2: AMD FX-4100 Zambezi 3.6G
Motherboard
System 1:Dell 06NWYK System 2: ASUS M5A97 AM3+
Memory
System 1: 8GB System 2: 8GB
Graphics Card(s)
System 1: ATI FirePro V4800 System 2: Radeon HD 6850
Sound Card
System 1: onboard System 2: onboard
Monitor(s) Displays
System1: Viewsonic HDMI 24"
Screen Resolution
System 1: 1920x1080 System 2: 1920x1080
Hard Drives
System 1: Mirrored .5B drives System 2: Seagate Barracuda ST1000DM003 1TB 7200 RPM 64MB Cache SATA 6.0Gb/s
Case
System 1: Dell System 2: Cooler Master
Internet Speed
10 MBPS
If computer froze, it probably crashed, if crashed maybe some software or settings got changed. Usually hardware works or it doesn't. Now, if you took CPU out and put it back without applying paste or it is not properly seated, that could keep it running hot and throttling back.
As far as GPU goes, if it runs slower then there is less heat, then fan won't go above idle which it seems that 39% is.
You should run some programs to check temp, frequency and other stats for CPU/GPU to find where the problem is first.


My Computer My Computer

At a glance

win7hp64
OS
win7hp64

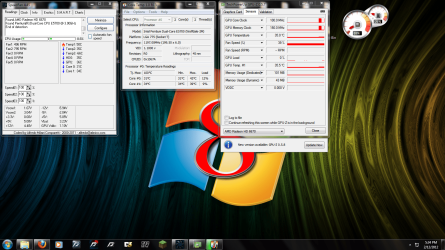

Got it.


Attachments

  • Temp.png
    470.7 KB · Views: 156

My Computer My Computer

At a glance

Windows 7 Home Premium x64Pentium Dual-Core E5700 @ 3.00GHz6GB DDR3HIS ATi Radeon HD 6670 DDR3 1GB
Computer Manufacturer/Model Number
Dell Inspiron 560
OS
Windows 7 Home Premium x64
CPU
Pentium Dual-Core E5700 @ 3.00GHz
Motherboard
Dell 018D1Y
Memory
6GB DDR3
Graphics Card(s)
HIS ATi Radeon HD 6670 DDR3 1GB
Sound Card
Integrated
Monitor(s) Displays
HP 2009m
Screen Resolution
1600x900
Hard Drives
ST3750528AS
Seagate ST310005EXA101 (External)
PSU
Cooler Master 500W
Case
Dell Inspiron 560 Case
Keyboard
Logitech MK320 Wireless Keyboard/Mouse Combo
Mouse
Logitech MK320 Wireless Keyboard/Mouse Combo
Internet Speed
Download: 2.59Mb/s Upload: 0.60Mb/s Ping:93ms (Verizon)
Check system configuration and see how many cores are set. Natively windows, on multicore cpu's defaults to one. System configuration, boot, advanced options then check the box and then click the arrow for the drop down menu then select the highest number.


My Computer My Computer

At a glance

Windows 7 Ultimate 64 bitAMD Phenom II X4 965 Black EditionGSkill 4 X 2 GB PC 8500XFX Radeon HD 6790 D
Computer Manufacturer/Model Number
Custom built
OS
Windows 7 Ultimate 64 bit
CPU
AMD Phenom II X4 965 Black Edition
Motherboard
Gigabyte GA-MA790X-DS4
Memory
GSkill 4 X 2 GB PC 8500
Graphics Card(s)
XFX Radeon HD 6790 D
Sound Card
On board RealTek HD
Monitor(s) Displays
Dual monitors:Samsung SyncMaster S20B300
Screen Resolution
1600 X 900
Hard Drives
Seagate Barracuda 1TB (primary)
Seagate Barracuda 2 X 320 GB
PSU
Ultra X4 750 watt fully modular
Case
Thermaltake Overseer RX 1 full tower
Cooling
Core-Contact 92 mm CPU Cooler
Keyboard
Logitech G510
Mouse
Razor DeathAdder
Internet Speed
50/5 Mbps UL/DL
Other Info
Optical: Super Muliti DVD burner w/lightscribe, Hauppauge WinTV HVR-1800
Nope, didn't work. But my computer seems to be going faster. I'll enjoy that :D

Just to make it clear, which part is the problem? Is it the GPU itself, the CPU, or even the motherboard?


My Computer My Computer

At a glance

Windows 7 Home Premium x64Pentium Dual-Core E5700 @ 3.00GHz6GB DDR3HIS ATi Radeon HD 6670 DDR3 1GB
Computer Manufacturer/Model Number
Dell Inspiron 560
OS
Windows 7 Home Premium x64
CPU
Pentium Dual-Core E5700 @ 3.00GHz
Motherboard
Dell 018D1Y
Memory
6GB DDR3
Graphics Card(s)
HIS ATi Radeon HD 6670 DDR3 1GB
Sound Card
Integrated
Monitor(s) Displays
HP 2009m
Screen Resolution
1600x900
Hard Drives
ST3750528AS
Seagate ST310005EXA101 (External)
PSU
Cooler Master 500W
Case
Dell Inspiron 560 Case
Keyboard
Logitech MK320 Wireless Keyboard/Mouse Combo
Mouse
Logitech MK320 Wireless Keyboard/Mouse Combo
Internet Speed
Download: 2.59Mb/s Upload: 0.60Mb/s Ping:93ms (Verizon)
Re apply the Thermal paste with Arctic Cooling MX 2 on your CPU & GPU after cleaning the heatsink & the processor/ GPU Chip.

Apply in very little quantity in the middle of the chip. Make sure you don't apply it like butter.

Re seat the heatsink & connect the heat sink fan. Power up your system & You should see lesser temps than the one above.

I did the same for my Gateway Netbook.

The temperature dropped from 60 degrees to 34 C in Idle.

Now it maxes out at 54 degrees.


My Computer My Computer

At a glance

Windows Vista Home Premium x86, Home Premium x86Intel Pentium 4 3.00Ghz with HT, Intel P4 2.8Ghz2x512 MB DDR 400Mhz, 2x1GB DDR 400 MhzATI Radeon HD3650 AGP 8x, Zotac GT 430 DDR3
Computer Manufacturer/Model Number
Assembled Desktop PC, HTPC
OS
Windows Vista Home Premium x86, Home Premium x86
CPU
Intel Pentium 4 3.00Ghz with HT, Intel P4 2.8Ghz
Motherboard
Intel Original D865GBF, GA-81915-ME-C
Memory
2x512 MB DDR 400Mhz, 2x1GB DDR 400 Mhz
Graphics Card(s)
ATI Radeon HD3650 AGP 8x, Zotac GT 430 DDR3
Sound Card
SoundMAX Digital Audio AD1985, Diamond Xtreme 7.1 24Bit
Monitor(s) Displays
SONY BRAVIA KLV-19T400A , KLV-32V300A
Screen Resolution
1920x1080, 1920x1080
Hard Drives
Hitachi HDT721010SLA360 (1TB SATA 150)
SAMSUNG 80GB IDE
WD ESSENTIAL EDITION 1TB USB
WD EARS 2TB Green
PSU
FSP Saga II 500W, FSP Saga II 400W
Case
Lancool K-62 DragonLord, Lian-Li v351
Keyboard
Logitech iTouch Combo, Logitech di Novo Mini Bluetooth Combo
Mouse
Logitech
Internet Speed
Hathway 512 Kbps
Other Info
Specs are for Desktop & HTPC
I'm really sorry about the late response.....
I'm not sure that I can do what you said. I'm not THAT old, you know.
I still live with my parents, and I get nervous when I ask them about my computer.
My dad is AMAZING at computers, so its really intimidating to ask him about that stuff.
Maybe the next time he goes to New York (about once every 1-2 months)
