how do I recover data from a non responsive hard drive?

[Slartybart]

yep, Shift+F8. My bugle call to you to watch and catch worked .Thanks for sparing my knuckles . Edited.

I'm sure Canuck knew what you meant, I only posted that in case a visitor looked that through the thread at some future date and time.

Bill
.



[Canuck67]

I had to boot with the pen drive.

Here's the screen shot.



[Slartybart]

.....
But if it succeeds showing all the partitions after we go through a quick/deep scan and rebuild MBR exercise we may restore it to its original condition as before to access the data as usual. If it proves not possible, we have to resort to data recovery options. At the moment we really do not know what is the cause so we are only trying a known technique that has been successful in many cases and also not successful in many cases. We are still probing.

I'm using jumanji instructions so we're all on the same page. If this recovers the partition(s), it is the best scenario.

click on Partition Recovery and do a quick scan, then post a screen shot.

I think you've done this before so I'll keep the instructions short. (or maybe that was another thread)
You still want to take it step by step though.

Bill



[Canuck67]

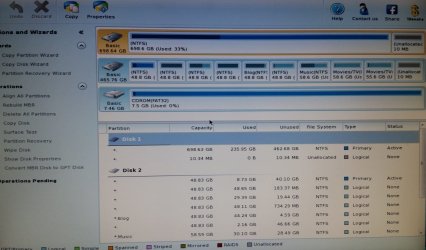

okay... here's the screenshot after the scan.

keep in mind that it takes 45 minutes to reboot while the dead drive is installed. So hopefully not too many more reboots



[Slartybart]

That looks like the main window to me.
I would expect the scan to return something like the image in this PW page:
How to perform lost partition recovery and deleted partition recovery under Windows? Partition Recovery Help.

Did you do a quick scan or a full scan?

If you haven't yet scanned - follow the directions in the Minitool PW link above
Full disk, quick scan

Maybe you just grabbed the wrong image?



[Canuck67]

I clicked Partition Recovery, and got the first image from your link. Choose Full Disk, then Quick Scan. Then clicked on all of the partitions that I wanted scanned... hit Finish, and then it did it's thing for a short while and then gave me the screen you see in my last post.



[Slartybart]

Just to be sure I understand.

You ran the quick scan
It returned a screen like this:

and you selected the parts on that screen?

or are you saying that you selected the parts on this screen



[Canuck67]

it was after the second image (scanning range settings) and was like the first image... but it listed all of the different partitions on the dead drive, asking me what I wanted scanned.
So I ticked the boxes on all of them, and hit finish.

I never got a screen with the information shown in your image one. After it scanned for awhile (maybe a minute? not long...) it gave me the main screen that I posted a screen cap of.



[Canuck67]

I guess I must have done something wrong. I'll re boot again and try another quick scan.

see you in 45 minutes or so...



[Slartybart]

Ok, thanks

Please run the Partition Recovery wizard again,
select disk 2 - that's the faulty disk correct?
------- press the next button
select Full disk
------- press the next button
select Quick scan
------- press the next button

it should start scanning.

It sounds as though you selected the parts in range, but I'm not clear on what actually ended up in the field. It might have only been the last part you selected.

IT's important to specify Full disk, even if you only want certain parts.

When it's done scanning BEFORE you hit finish, please post a screen shot - it should be the Choose Search Partitions similar to the first image in post #47 This screen shows the addressing information.

It would be easier for me if you posted a screen cap for each step and wait for me to review before continuing to the next step.



[Slartybart]

Sorry I missed your post, you didn't have to reboot.

It's not clear that you did something incorrectly, so instead of wording it out, I figured it would be better to just run it again - with pictures for me to review and see what you see.

But, I can go grab a bite



[Canuck67]

Please run the Partition Recovery wizard again,
select disk 2 - that's the faulty disk correct?
------- press the next button
select Full disk
------- press the next button
select Quick scan
------- press the next button

it should start scanning.

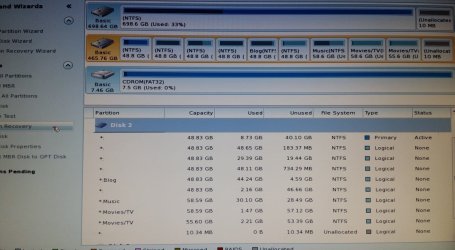

I did all of this, and the screen looks exactly like the screen caps you posted.... after clicking Quick scan and hitting next, I get the following screen (See cap)

when I hit Finish on that screen, it takes me back to the main screen that I have already posted....

(EDIT: oh, and I did select all the partitions)



[Slartybart]

Ok, thanks. The main screen is exactly like the one you posted before?

I can't see the left pane - is there any operation pending? Don't complete it yet if there is, just let me know.

Give me some time to look at the addresses. A quick glance looks like there might be some holes, but let me double check my eyes haven't been good lately )

Just leave PW where it is for now.

This will take me some time, please bear with me.

Bill



[Canuck67]

no. No operations pending.

Thanks.



[Slartybart]

Everything adds up.

Do you see your data if you select / highlight the partition?

Take a peek at what can be read on each part - is it what you expected to find?

jumnaji mentioned the MBR, but I want to be sure we're done with the Part recovery before taking that step.



[Slartybart]

Can you post a screen cap of the upper portion of PW for me?

DO NOT APPLY yet -

I'm thinking there is one more step - apply the changes - that might be if PW had to reconcile overlapping parts.
If Apply is available (not greyed out - inactive),
post the screen cap​

I always get cautious at this point, please bear with me.



[Canuck67]

okay, I'll reboot and scan again.



[Slartybart]

Please do not boot in between the operations - there is no need.



[jumanji]

Ok, I am in. Thanks Slarty for holding the fort.

I just had a quick glance. Yet to give a thorough going.

On the face of it everything looks good.

Canuck67, after the Quick Scan, when the screen appears, select all partitions in it by placing the tick mark in the squares.

Now look at the bottom preview of disk map.

Does it show your full drive as before?

Please post a screenshot so that we can view the disk map.

Don't worry, There is no way you can go wrong. May be only you have to repeat many times if you cancel PW



[Slartybart]

I think the partition table was rebuilt and all I wanted to do was verify that there wasn't an apply operation.

Slow down and wait for the next step - ask if the member helping you wants you to boot, scan, apply, etc. I don't think there's any harm, but it does take some extra time.

Unfortunately, forum trouble shooting isn't real time. Members help other members and might get pulled away from one thread for a while.

When the machine is back up - just post a screen cap of the main PW screen.

I just thought that I might have confused you when I asked if you could see the data. You can explore inside of PW or in Linux, you don't have to return to Windows.
How to Explore Partition - help of partition manager - Partition Wizard.

Bill
.
