I have 1600MHz ram but it shows up as 716MHz in Speccy

Executable Beep

New member
Member
Local time
9:51 AM
Messages
40
So yeah, i bought this: CMZ8GX3M2A1600C9

And wherever i check for the ram specs, its says that its at 716MHz.


Attachments

  • Ram 1.jpg

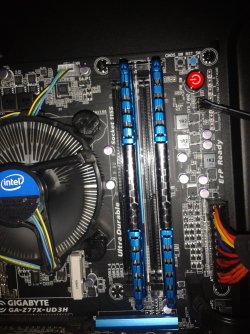

    Ram 1.jpg
    520 KB · Views: 3
  • Ram 2.jpg

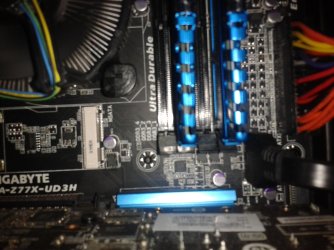

    Ram 2.jpg
    397.3 KB · Views: 2

My Computer My Computer

At a glance

Windows 7 Ultimate 64-biti5 - 3570k 3.4GHzCorsair Vengeance 8gb (2x4) @ 1600MhzGeforce GTX 670 MSI OC Power Edition
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Various
OS
Windows 7 Ultimate 64-bit
CPU
i5 - 3570k 3.4GHz
Motherboard
GA-Z77X-UD3H
Memory
Corsair Vengeance 8gb (2x4) @ 1600Mhz
Graphics Card(s)
Geforce GTX 670 MSI OC Power Edition
Sound Card
None.
Monitor(s) Displays
HP 2009m 5ms @ 60Hz
Screen Resolution
1600x900
Hard Drives
1TB WD WD10EZEX-00R
Samsung 840 120gb SSD
PSU
Seasonic G-Series 550 Watt 80 PLUS Gold
Case
Corsair Vengeance C70 [Gunmetal Black]
Cooling
Default Coolers.
Keyboard
Razer Blackwidow Ultimate 2013 Elite
Mouse
R.A.T. 7
Internet Speed
4mbps
Antivirus
Norton Internet Security
Browser
Google Chrome
Other Info
This build needs extra cooling for overclocking but i dont know what to get :c
Speccy shows the real clock speed of your RAM (716Mhz).

Since it's double data rate (DDR) RAM the effective clock speed would be 1432Mhz (716x2).

You have 1600Mhz so there is either some system overhead using that missing 168Mhz or you need to fine tune your voltages or motherboard settings.

I don't know if you bought the ram at newegg or not, I'm just using this link as an example:
CORSAIR Vengeance 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Desktop Memory Model CMZ8GX3M2A1600C9 - Newegg.com


My Computer My Computer

At a glance

Originally Win 7 Hm Prem x64 Ver 6.1.7600 Bui...Intel i3 530 2.93GHz, 2933MHz 2 Cores 4 Logic...6GB of 1,333MHz DDR3 SDRAM32MB Intel Graphics Media Accelerator HD IGChip
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Gateway DX4831-01e (Mid-Tower Desktop)
OS
Originally Win 7 Hm Prem x64 Ver 6.1.7600 Build 7601-SP1 | Upgraded to Windows 10 December 14, 2019
CPU
Intel i3 530 2.93GHz, 2933MHz 2 Cores 4 Logical Processors
Motherboard
Gateway H57M01 133 megahertz
Memory
6GB of 1,333MHz DDR3 SDRAM
Graphics Card(s)
32MB Intel Graphics Media Accelerator HD IGChip
Sound Card
Realtek High Definition Audio
Monitor(s) Displays
Gateway HX2000 20inch TFT active matrix TN
Screen Resolution
1600 x 900 x 59 hertz
Hard Drives
WDC WD10EADS-00M2B0 [HDD] (1000.20 GB) -- drive 0,
HL-DT-ST DVDRAM GH41N [CD-ROM dr]
Four card readers, and Four USB 2.0
PSU
300watts.
Case
Mid-Tower Desktop
Cooling
Stock from Gateway
Keyboard
Natural Ergonomic Keyboard 4000, see Other Info
Mouse
Orig. Gateway wore out now using Insignia USB wired optical
Internet Speed
Vz FIOS 10ms png 57.64Mbps down 65.53Mbps up Speedtest.org
Antivirus
Zamana Anti-logger with Anti-malware, MSE, Windows Firewall,
Browser
IE11.0.9600.19399-Upd ver11.0.135, Firefox 68.0.1 x64
Other Info
System Specs by Belarc.

BIOS: American Megatrends Inc. P01-A0 11/17/2009

Replaced the MS 'Natural' Standard PS/2 Enhanced 101-102 Keyboard with a new Natural Ergonomic Keyboard 4000 on August 1st 2014.

Canon Pixma MG3222 Printer.

Updated to IE11 on 12102015 | Fios Quantum Router g1100

Additional AV: SpywareBlaster, manual Mbam, SAS
But will there be any 'slow-downs' because of the fact that its 1432 and not 1600?

or how can i check the ACTUAL speed that its running at?


My Computer My Computer

At a glance

Windows 7 Ultimate 64-biti5 - 3570k 3.4GHzCorsair Vengeance 8gb (2x4) @ 1600MhzGeforce GTX 670 MSI OC Power Edition
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Various
OS
Windows 7 Ultimate 64-bit
CPU
i5 - 3570k 3.4GHz
Motherboard
GA-Z77X-UD3H
Memory
Corsair Vengeance 8gb (2x4) @ 1600Mhz
Graphics Card(s)
Geforce GTX 670 MSI OC Power Edition
Sound Card
None.
Monitor(s) Displays
HP 2009m 5ms @ 60Hz
Screen Resolution
1600x900
Hard Drives
1TB WD WD10EZEX-00R
Samsung 840 120gb SSD
PSU
Seasonic G-Series 550 Watt 80 PLUS Gold
Case
Corsair Vengeance C70 [Gunmetal Black]
Cooling
Default Coolers.
Keyboard
Razer Blackwidow Ultimate 2013 Elite
Mouse
R.A.T. 7
Internet Speed
4mbps
Antivirus
Norton Internet Security
Browser
Google Chrome
Other Info
This build needs extra cooling for overclocking but i dont know what to get :c
In my humble opinion, I don't think there is any humanly possible way to tell the difference of 168Mhz, maybe if you're gaming there would be a problem with the frames per second (fps), but you won't know until you try.

As far as checking the actual speed you did that when you used Speecy. There are other hardware information gatherer programs out there you could try, but the best I've seen are the ones a local computer shop would have, its a small device that the tech would plug your ram into and it would give a read out on all the specs of the ram being tested.

But, this may be a moot point because I double checked the memory support list for your motherboard and I came up with a discrepancy. That is the reason it took me so long to reply.

You posted the model number of the ram you installed as, CMZ8GX3M2A1600C9, and according to the qualified vendors list it should be either:
CORSAIR 4GB CML16GX3M4X1600C8 or CORSAIR 4GB CMZ16GX3M4X1600C9,

You can double check me at: http://download.gigabyte.us/FileList/Memory/mb_memory_ga-z77x-ud3h.pdf

Scroll down a bit until you reach DDR3 1600 listed at the upper left corner, the list for 1600 starts at page 4 on my reader and the ram I'm thinking you need is at the bottom of page 5.

I hope I'm wrong.

Last edited:

My Computer My Computer

At a glance

Originally Win 7 Hm Prem x64 Ver 6.1.7600 Bui...Intel i3 530 2.93GHz, 2933MHz 2 Cores 4 Logic...6GB of 1,333MHz DDR3 SDRAM32MB Intel Graphics Media Accelerator HD IGChip
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Gateway DX4831-01e (Mid-Tower Desktop)
OS
Originally Win 7 Hm Prem x64 Ver 6.1.7600 Build 7601-SP1 | Upgraded to Windows 10 December 14, 2019
CPU
Intel i3 530 2.93GHz, 2933MHz 2 Cores 4 Logical Processors
Motherboard
Gateway H57M01 133 megahertz
Memory
6GB of 1,333MHz DDR3 SDRAM
Graphics Card(s)
32MB Intel Graphics Media Accelerator HD IGChip
Sound Card
Realtek High Definition Audio
Monitor(s) Displays
Gateway HX2000 20inch TFT active matrix TN
Screen Resolution
1600 x 900 x 59 hertz
Hard Drives
WDC WD10EADS-00M2B0 [HDD] (1000.20 GB) -- drive 0,
HL-DT-ST DVDRAM GH41N [CD-ROM dr]
Four card readers, and Four USB 2.0
PSU
300watts.
Case
Mid-Tower Desktop
Cooling
Stock from Gateway
Keyboard
Natural Ergonomic Keyboard 4000, see Other Info
Mouse
Orig. Gateway wore out now using Insignia USB wired optical
Internet Speed
Vz FIOS 10ms png 57.64Mbps down 65.53Mbps up Speedtest.org
Antivirus
Zamana Anti-logger with Anti-malware, MSE, Windows Firewall,
Browser
IE11.0.9600.19399-Upd ver11.0.135, Firefox 68.0.1 x64
Other Info
System Specs by Belarc.

BIOS: American Megatrends Inc. P01-A0 11/17/2009

Replaced the MS 'Natural' Standard PS/2 Enhanced 101-102 Keyboard with a new Natural Ergonomic Keyboard 4000 on August 1st 2014.

Canon Pixma MG3222 Printer.

Updated to IE11 on 12102015 | Fios Quantum Router g1100

Additional AV: SpywareBlaster, manual Mbam, SAS
Unless you are using them to run an integrated GPU, that tiny discrepancy is irrelevant.
Heck only benchmarks can detect the difference between 1333 and 1600 RAM for CPU performance, go figure detecting 150 mhz.


My Computer My Computer

At a glance

Win 7 Pro 64-bit 7601AMD Phenom 9650 QuadCore, revision DR-B35 GB yes I run 2x 2GB and 1x 1GB, different b...NVIDIA GeForce 9800 GT 512 Mb, unknown manufa...
Computer type
PC/Desktop
Computer Manufacturer/Model Number
custom built
OS
Win 7 Pro 64-bit 7601
CPU
AMD Phenom 9650 QuadCore, revision DR-B3
Motherboard
ASUS M4A78
Memory
5 GB yes I run 2x 2GB and 1x 1GB, different brand, spank me.
Graphics Card(s)
NVIDIA GeForce 9800 GT 512 Mb, unknown manufacturer.
Sound Card
Crappy Realtek Integrated Audio
Monitor(s) Displays
Fujitsu Siemens P19-3P
Screen Resolution
1280 x 1024 x 32 bits @ 60 Hz Oh yeah, 4:3 rocks!
Hard Drives
(1) MAXTOR S TM3320613AS SATA Disk Device (2) STM35004 18AS SATA Disk Device (3) TOSHIBA USB 2.5"-HDD
PSU
whatever, around 450w
Case
Scavenged from old company PC, 10+ years old
Cooling
CPU fan, GPU fan, case fan, nothing fancy
Keyboard
Microsoft, PS/2, white.
Mouse
Optical, logitec.
Internet Speed
effective max speeds: 70-ish kB/s down 30-ish kB/s up
Antivirus
Avira, free edition.
Browser
Firefox with FXChrome to make it look like Google Chrome :P
Other Info
Was discarded by previous owner due to "horrible performance".
Was running Win Xp from a IDE drive. Yeah. Was a pain.
SATA II drive and Win7 and it zips away! Yay!
