Intel UHD 630 Driver for Windows 7

[Yaron]

Hello,


Asus Prime H410-A
Intel® Core™ i7-10700 Comet Lake
Intel UHD 630


I'm looking for a driver for Windows 7 64-bit.


I'd appreciate your help.



[SIW2]

HERE: 630 drivers also work for 620



[Yaron]

@SIW2,


Thanks for replying. I appreciate it.


I tried earlier https://www.biostar.com.tw/app/en/event/H310_windowstool/win7_8th_i3_i5_Driver_2.0.rar and Windows warned me it might not be compatible with my system. Should I go ahead and install it?


Is your attached https://www.sevenforums.com/attachments/drivers/406047d1543245631-nvme-driver-nvme-win7x64.zip the same driver or a different one?



[SIW2]

Merge the .reg file first.

Then use device manager to browse to the extracted drivers



[Yaron]

@SIW2,


I've merged the .reg file but the installation has failed.
Anything else I can try?


Thank you.



[SIW2]

Try adding your id's like this poster did

You can find the id by msinfo32.exe >components >problem devices



[SIW2]

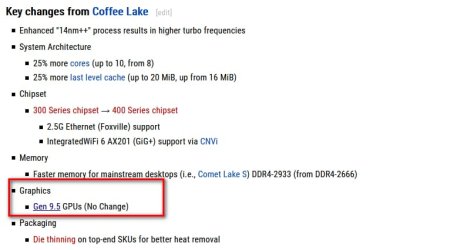

According to this, the gpu is gen9.5 , no change from coffeelake. So hopefully is just a case of adding your id to the inf file.



Comet Lake - Microarchitectures - Intel - WikiChip



[Yaron]

Intel® Core™ i7-10700 Comet Lake is 10gen.


I'm not a pro.

Please let me know if I've taken the correct steps.

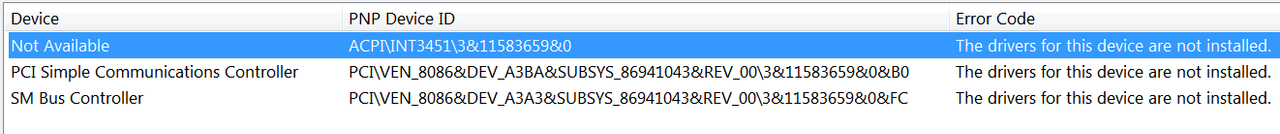

In "msinfo32.exe >components >problem devices" I see:

I've added the following (last) line to igdkmd64.inf:

I've selected igdkmd64.inf in the Device Manager, and got the following error:
(This driver does not support your version of Windows).

Thanks again. I appreciate your help.



[SIW2]

More likely one of these for %iKBLULTGT2R%

Intel UHD Graphics 630 PCI\VEN_8086&DEV_9BC5 Comet Lake
Intel UHD Graphics 630 PCI\VEN_8086&DEV_9BC8 Comet Lake



[Yaron]

I suppose you mean:

%iKBLULTGT2R% = iSKLD_w7, PCI\VEN_8086&DEV_9BC5
%iKBLULTGT2R% = iSKLD_w7, PCI\VEN_8086&DEV_9BC8

and not:
%iKBLULTGT2R% = iSKLD_w7, Intel UHD Graphics 630 PCI\VEN_8086&DEV_9BC5 Comet Lake
%iKBLULTGT2R% = iSKLD_w7, Intel UHD Graphics 630 PCI\VEN_8086&DEV_9BC8 Comet Lake



Is that correct?


It's really late in my place. I'll try it tomorrow.


I appreciate your patience.



[SIW2]

yes



[Yaron]

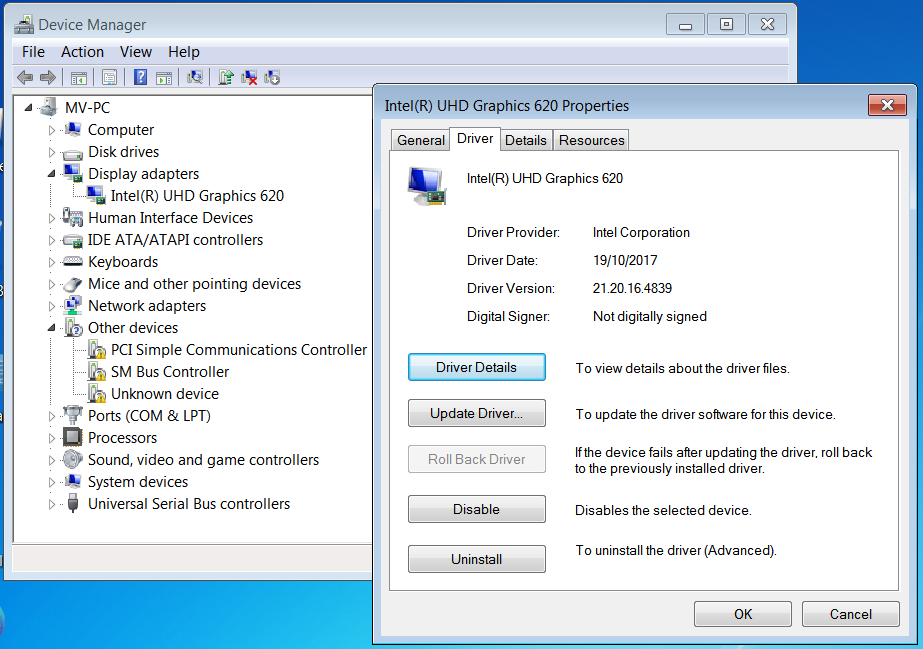

Rebooting after adding

%iKBLULTGT2R%    = iSKLD_w7, PCI\VEN_8086&DEV_[B]A3A1[/B]

, UHD 620 (NOT 630) seems to have been installed successfully.

And I have one less item in msinfo32.exe >components >problem devices.

But I do not get the Aero effects, the performance is poor and I assume that hardware acceleration is not working.



Uninstalling and reinstalling with either DEV_9BC5 or 9BC8, Windows disables the driver (code 43).

Any idea?
I really need it to work.


I'd appreciate it.



[SIW2]

Ask at win-raid forum



[SIW2]

win64_15.45.27.5068.zip — Yandex.Disk

You need to replace in inf-file DEV_3E91 to DEV_9BC5

Forum - Windows 7/Vista/Server 2008 » Getting Win7 on Comet Lake Desktop



[Yaron]

Sadly, that hasn't worked either.


I appreciate your kind help.



[borishbb10]

HERE: 630 drivers also work for 620

Hello bro. I cant installing intel hd graphics for windows 7. Do u know how to fix this problem? If u can look my posts, u can see



[SIW2]

Have you got windows 7 drivers for your GTX 1650 ?

Drivers



[joeyc100]

Hi Yaron,
I'm looking to install win7 on a 410 too. Which USB 3 drivers did you use? None that I have are acceptable. I've tried 3.0.5.69, 4.0.3.49, and 5.0.3.42. All were rejected.
Thanks,
Joe.



[SIW2]

joeyc100



[joeyc100]

Thanks for the link, but apparently a ...hub.inf is expected as well as the ...xhci.inf file, but there isn't any. So the installation stalls at this point.

- - - Updated - - -

Oops. I forgot to run the kb file. All is well now.
It remains to install the chipset and graphics drivers, altho it does not appear that the chipset driver is needed. The Realtek audio and lan drivers from the H310 board installed with no problem, but, then again, Realtek drivers will install on anything that casts a shadow. Thanks again.
Joe.
