Latest Intel Chipset Device Software

[jonnyhillow]

It is also written out in step 3, (And clearly labeled on top of the window)

3) Press the START MENU button > All Programs > Accessories > then right click on Command Prompt and choose Run As Administrator

As to why theirs is opening to C:\Users, I'm not sure about that. I just pointed out the obvious from your previous screenshot.

I know it was clearly labeled but when i tried admin first it didn't work (as shown in screen shot) thats why i tried the other, both don't work .


Any ideas as to why i can't get past the second part?



[derekimo]

Any ideas as to why i can't get past the second part?

Sorry, I have no idea. Maybe someone else will have an idea.



[jonnyhillow]

I have no idea. Maybe someone else will have an idea.

Thanks man , thats what i like about this place , i can always count on people giving me the correct info lol.


Kidding around , where's my bud NoN , hopefully he has a clue.



[NoN]

I have no idea. Maybe someone else will have an idea.

Thanks man , thats what i like about this place , i can always count on people giving me the correct info lol.


Kidding around , where's my bud NoN , hopefully he has a clue.

Sorry for the late answer,

Extract the Chipset_10.0.27_Public.zip and put the two files mup.xml & SetupChipset.exe in the created chip folder in root C:\

The command window as to be run as Admin and then access to the cd\ as it shows.

Don't rename the SetupChipset.exe !!!

You're missing a slash when typing: C:\>cd\chip

Go to chip folder created with cd\ command and type in the command window:

SetupChipset.exe -overall AND NOT: SetupChipset.exe-overall

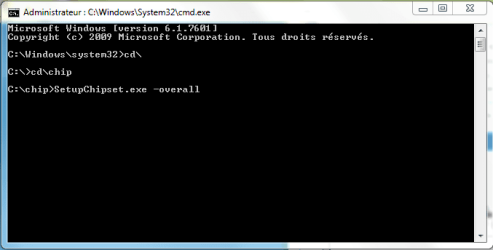

Should looks like this:

C:\chip>SetupChipset.exe -overall (and hit Enter)

You have to put a space between "SetupChipset.exe" and "-overall" (no real need -overide, its for IDE)



[jonnyhillow]

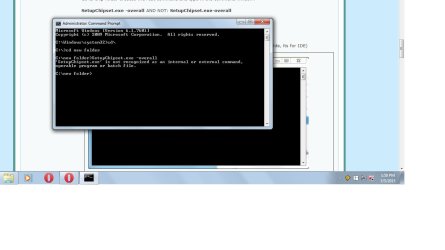

Your dealing with a complete idiot here NoN , does my screenshots look correct , i am still getting that "can't find the path specified in command prompt .

In the new folder i created is in the second screenshot , those two are correct i hope

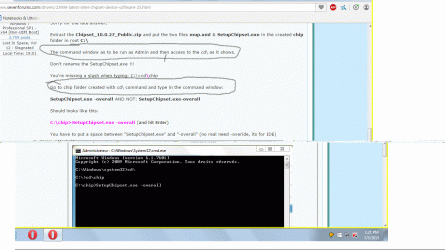

I can't figure out how to go about the two things i circled in the bottom screenshot.



[derekimo]

Try renaming your folder to chip, or point the cmd to New Folder instead of chip since your folder is named that.

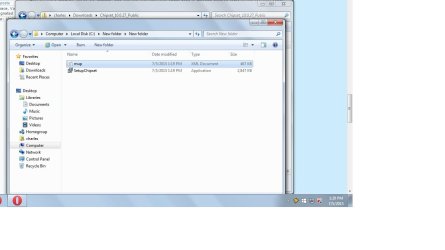

It also looks like you have a folder in a folder from this screenshot.



[jonnyhillow]

Thanks , think i did it right , got past the middle one at least .



[derekimo]

Did you get rid of the second folder? That may be stopping it from seeing the setup you want it to see.

In other words, Instead of C:\New Folder\New Folder\SetupChipset, as it shows in the screenshot I pointed out previously.

Just have the one folder, C:\New Folder\SetupChipset



[NoN]

Thanks , think i did it right , got past the middle one at least .

We're here to guide you!


Step one: You should have only one folder in C:\

example: C:\New Folder, and NOT C:\New Folder\New Folder

Step two: Put the two files in it as i already told you.

Step three: open the window command as Admin and begin to go with cd\ command to the New Folder created in C:\

Step Four: the result is like this C:\New Folder>SetupChipset.exe -overall then hit Enter!

Step Five: reboot the computer as it shows in the Intel installer, and your done!!



[jonnyhillow]

Should the new folder end up in system 32 when first made or it just has to show in the the main C drive page like the screenshot shows?

I ask because i followed the info and there's only one folder and it's showing just like the tutorial but i am not getting past the last part in command prompt.



[NoN]

Should the new folder end up in system 32 when first made or it just has to show in the the main C drive page where program files and Widows, intel etc.. shows?

No!

It had to stay in root C:\



[derekimo]

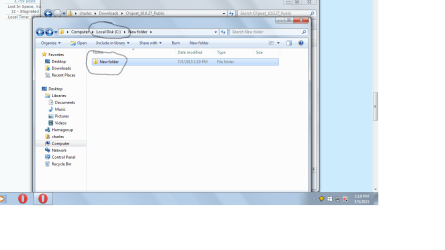

If you look in the address bar of this screenshot you posted it clearly shows two folders, C:\New Folder\New Folder

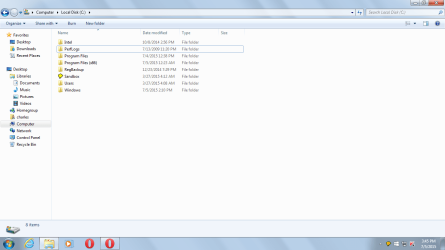

Now you have no folder according to the screenshot in post #250, this is where you want the folder.



[jonnyhillow]

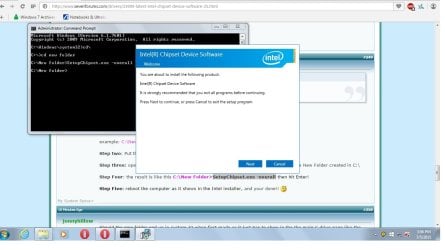

HOLY CRAP , i think i got it , can't be sure though because murphy's
law loves me to death.



[jonnyhillow]

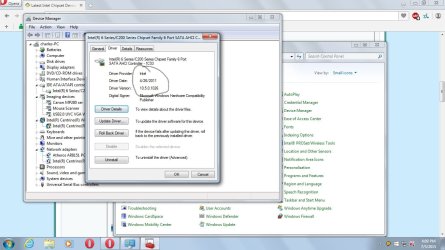

Yup, murphy's law prevails , still shows this chipset in device manager , oh well .

Thank you very very much guys for your time and efforts.



[NoN]

Yup, murphy's law prevails , still shows this chipset in device manager , oh well .

Thank you very very much guys for your time and efforts.

This mean the command hasn't worked for you, even if you have launch the Intel's "SetupChipset.exe", because it didn't take as account the -overall command.

You have to try it again with all the advices we gave you.

EDIT:

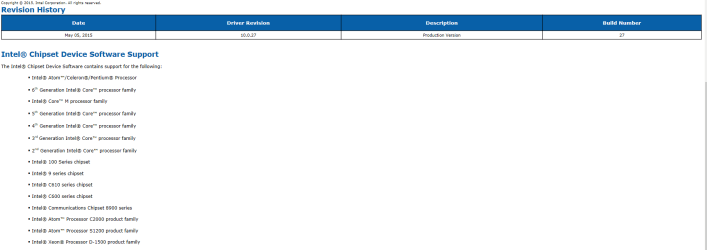

You have a Intel Series 6/C200 Chipset Family platform...you should look in the release notes if its the correct one for you, which i doubt now.



[jonnyhillow]

You mean it doesn't always work the first time ? Didn't know that , thanks . Will try again



Maybe i made a big mistake and don't even have a computer that takes the new update , if so i really apologize for wasting everyones time.



[NoN]

You mean it doesn't always work the first time ? Didn't know that , thanks . Will try again

Don't bother to try those one again, because they are not for your machine...the Intel update utility tool gave you the wrong version!!!!

Actually i'm searching for you the latest...wait a minute or so...



[jonnyhillow]

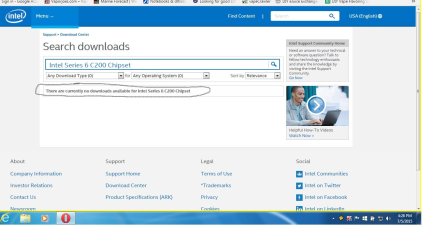

Thanks so much NoN , my chipset version is from 2011 , i don't think there is an update but you would know better than i would.



[NoN]

Thanks so much NoN , my chipset version is from 2011 , i don't think there is an update but you would know better than i would.

The latest i could find that are WHQL signed by Microsoft are the v9.4.4.1006 and are dated year 2013.

; ********************************************************************************
; ********************************************************************************
; ** FileName: cougahci.inf **
; ** Abstract: Intel(R) 6 Series/C200 Series Chipset Family **
; ** Last Update: July 25, 2013 (Version 9.2.0 Build 1035) **
; ********************************************************************************
; ********************************************************************************

[Version]
Signature="$WINDOWS NT$"
Class=hdc
ClassGUID={4D36E96A-E325-11CE-BFC1-08002BE10318}
Provider=%INTEL%
CatalogFile=cougahci.cat
DriverVer=07/25/2013, 9.2.0.1035

I've attached for you the .ZIP file and you can try with the same command cd\

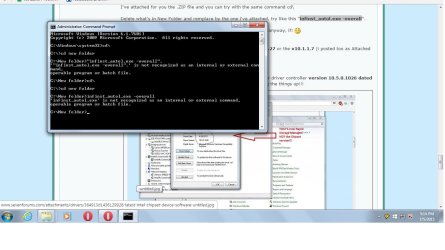

Delete what's in New Folder and remplace by the one i've attached, try like this "infinst_autol.exe -overall".

You should be able now to have them right installed. We're around anyway, if!

BTW,
Which one did you took before? Was link from the first page v10.0.27 or the v10.1.1.7 (i posted too as Attached Files )?

Anyway try the latest for you v9.4.4.1006 i've attached.

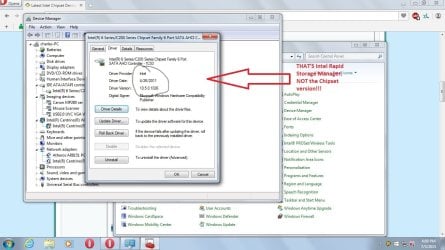

From your screenshot...it shows the Intel Rapid Storage Manager driver controller version 10.5.0.1026 dated of 2011 which are not the same as the Chipset.Inf... you're mixing the things up!!!



[jonnyhillow]

Man , just not working for me , i'm mixing things up , tell me about it , i am inept at this stuff.
