Looking for CPU temp in Win7 sys tray

[Zagadka]

Have tried many varieties.

My CPU is a AMD Phemon II 4 core. AMD's PC Probe works well, but the UI is something sent from beyond the bowels of hell. I'm looking for something that minimizes to the systray and just shows if the temp is high. I've tried CoreTemp, which doesn't display the temperature from the CPU at all, CPU Thermometer, TempTaskbar, and several others.

Any other thoughts?

Cheers



[Lemur]

CPUID, but I don't recall if it displays in the system tray.

CPUID - System & hardware benchmark, monitoring, reporting



[rustberger]

Real temp shows cpu temp in notification area.

Real Temp - CPU temperature monitoring



[Zagadka]

Strikeout on RealTemp, doesn't work with Phenom II



[ReviverSoft]

^ Yep, RealTemp is intended for Intel processors.

CoreTemp, which doesn't display the temperature from the CPU at all

Are you sure? I have CoreTemp displaying the temps. for all four cores on my Phenom II X4 proccy.

Here's a simpler option:

http://anonymous-thing.deviantart.com/art/Temp-Taskbar-for-Windows-7-202370829



[Zagadka]

CoreTemp displays the temp as 0*(?), which I read about in its documentation, but the "fixes" didn't help.

I also tried Temp Taskbar - the closest thing to what I am looking for - but it has a constant JIT error on mouseover



[Dwarf]

Core Temp does display the temperature in the Notification Area.



Click on Options > Settings and then the following tabs. Make the settings as shown. All other tabs should be set to their defaults.



Note that you can set the font, text, and background colours to those of your choice. You can also set it to use °F as opposed to °C if you wish. Click OK when done.



This shows both of my core temperatures in the Notification Area (you might need to change the settings to Show icon and notifications).

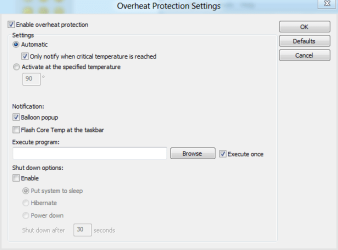

Now click on Options > Overheat protection.



These are the default settings for my CPU. If you wish, you can set it to Activate at the specified temperature and change the trigger temperature to a suitable value below its default (critical). Also uncheck Only notify when critical temperature is reached if you select this option, otherwise you will still only get a notification at the critical temperature and not your custom setting. You can also change the type of notification you receive.



This shows the type of notification you will receive (note that I have deliberately changed the temperature setting above in order to get this to display). If you want it to just notify you when it reaches/exceeds that temperature, you need to change the Notification Area settings to Only show notifications.



[Zagadka]

Thank you, Dwarf, but my problem with CoreTemp is that it does not recognize my CPU. The tmep display is 0*(?), and the system tray just shows 0.



[Dwarf]

See if the following FAQs help, in particular point 6.

ALCPU Forums • View topic - Core Temp - FAQ



[Lemur]

This works with Phenom II.

Open Hardware Monitor - CPU Temperature, Fan Speed and Voltages in a Free Software Gadget



[stormy13]

HWiNFO32 or HWiNFO64,

HWiNFO, HWiNFO32 & HWiNFO64 - Hardware Information and Analysis Tools

is another that can display in the systray.

P.S. That a true quad or an unlocked dual core?



[Zagadka]

True quad
