Only 2,75GB RAM Usable, regardless of installed amount.

[Slyve]

Hey there!

I am having some real trouble with my PC at work right now an i am at a total loss.

I slaughtered some old systems and tried to make one that isn't as abysmally bad as they all were for themselves. So, what i ended up with is this:

http://speccy.piriform.com/results/WMO5u3hir4d888BzOGv1cTB

Only thing that is really, REALLY annoying is that no matter what i do, only 2,75 GB Ram are available. (3,25 GB when i installed an ATI Card. I thought it was the ATI Card, but the problem seems the same with the Nvidia card, just worse)

When i only have 1 2GB Stick installed, there is no Hardware reserved memory. But once i get to that magic 2,75GB, everything above is reserved no matter what i do. And i cannot seem to find anything that could be responsible.

The Board has an Onboard Graphics chip, but there is no option in the BIOS to deactivate it. (It's a Dell Board and it's really bad, there are basically no options at all in the bios. None that matter anyway)

With the ATI Card it was 2,8GB that was reserved, which is the exact amout that card could reserve via HyperMemory. So i obviously thought i had resolved the problem. I tried deactivating HyperMemory via ATi Tray Tools, but that didn't work.

I then put the Nvidia Card back in (Uninstalled the Driver, of course) and the problem got worse. Now i have only 2,75GB to work with.

If anyone has any idea what this could be, I'd be really greatful. This problem cost me a whole day already and i can't seem to figure it out.

Regards



[Layback Bear]

Your system has mismatched ram.
Corsair and Kingston plus different timing.
All ram should be match. Same brand, speed, timing, bought as matched.

Before we go to far lets start with something basic.
Complete this tutorial and post results here.

By Brink:

http://www.sevenforums.com/windows-...ne-activation-issue-posting-instructions.html



[Slyve]

I checked the RAM to be sure, and it's running at the same frequenzy and latency (800-5-5-5-18) or 400mhz when in dualchannel.

The only difference is that it's a different capacity. The Error also appears when i remove all the Kingston RAM (2x1GB Sticks are Kingston) and only use the 2x2GB Corsair Ram. There will still only be 2,75BG RAM available.

Also, here is the Windows Activation Report Data. I hope this helps.

Diagnostic Report (1.9.0027.0):
-----------------------------------------
Windows Validation Data-->

Validation Code: 0
Cached Online Validation Code: N/A, hr = 0xc004f012
Windows Product Key: *****-*****-GK4PY-FDWYH-7TP9F
Windows Product Key Hash: u3xU6PnmumgYLgUpnmbqEw9Q2OA=
Windows Product ID: 00371-OEM-8992671-00004
Windows Product ID Type: 2
Windows License Type: OEM SLP
Windows OS version: 6.1.7601.2.00010100.1.0.048
ID: {0F28DCB1-4611-400E-BCE1-CEE63C452284}(1)
Is Admin: Yes
TestCab: 0x0
LegitcheckControl ActiveX: N/A, hr = 0x80070002
Signed By: N/A, hr = 0x80070002
Product Name: Windows 7 Professional
Architecture: 0x00000009
Build lab: 7601.win7sp1_gdr.150928-1507
TTS Error:
Validation Diagnostic:
Resolution Status: N/A

Vista WgaER Data-->
ThreatID(s): N/A, hr = 0x80070002
Version: N/A, hr = 0x80070002

Windows XP Notifications Data-->
Cached Result: N/A, hr = 0x80070002
File Exists: No
Version: N/A, hr = 0x80070002
WgaTray.exe Signed By: N/A, hr = 0x80070002
WgaLogon.dll Signed By: N/A, hr = 0x80070002

OGA Notifications Data-->
Cached Result: N/A, hr = 0x80070002
Version: N/A, hr = 0x80070002
OGAExec.exe Signed By: N/A, hr = 0x80070002
OGAAddin.dll Signed By: N/A, hr = 0x80070002

OGA Data-->
Office Status: 109 N/A
OGA Version: N/A, 0x80070002
Signed By: N/A, hr = 0x80070002
Office Diagnostics: 025D1FF3-364-80041010_025D1FF3-229-80041010_025D1FF3-230-1_025D1FF3-517-80040154_025D1FF3-237-80040154_025D1FF3-238-2_025D1FF3-244-80070002_025D1FF3-258-3

Browser Data-->
Proxy settings: N/A
User Agent: Mozilla/4.0 (compatible; MSIE 8.0; Win32)
Default Browser: C:\Program Files (x86)\Mozilla Firefox\firefox.exe
Download signed ActiveX controls: Prompt
Download unsigned ActiveX controls: Disabled
Run ActiveX controls and plug-ins: Allowed
Initialize and script ActiveX controls not marked as safe: Disabled
Allow scripting of Internet Explorer Webbrowser control: Disabled
Active scripting: Allowed
Script ActiveX controls marked as safe for scripting: Allowed

File Scan Data-->
File Mismatch: C:\Windows\system32\wat\watadminsvc.exe[Hr = 0x80070003]
File Mismatch: C:\Windows\system32\wat\npwatweb.dll[Hr = 0x80070003]
File Mismatch: C:\Windows\system32\wat\watux.exe[Hr = 0x80070003]
File Mismatch: C:\Windows\system32\wat\watweb.dll[Hr = 0x80070003]

Other data-->
Office Details: <GenuineResults><MachineData><UGUID>{0F28DCB1-4611-400E-BCE1-CEE63C452284}</UGUID><Version>1.9.0027.0</Version><OS>6.1.7601.2.00010100.1.0.048</OS><Architecture>x64</Architecture><PKey>*****-*****-*****-*****-7TP9F</PKey><PID>00371-OEM-8992671-00004</PID><PIDType>2</PIDType><SID>S-1-5-21-1232844150-2918655291-2469672239</SID><SYSTEM><Manufacturer>Dell Inc.</Manufacturer><Model>Vostro 200</Model></SYSTEM><BIOS><Manufacturer>Dell Inc.</Manufacturer><Version>1.0.11</Version><SMBIOSVersion major="2" minor="5"/><Date>20080131000000.000000+000</Date></BIOS><HWID>45343D07018400F8</HWID><UserLCID>0407</UserLCID><SystemLCID>0407</SystemLCID><TimeZone>Mitteleuropäische Zeit(GMT+01:00)</TimeZone><iJoin>1</iJoin><SBID><stat>3</stat><msppid></msppid><name></name><model></model></SBID><OEM><OEMID>GBT   </OEMID><OEMTableID>GBTUACPI</OEMTableID></OEM><GANotification/></MachineData><Software><Office><Result>109</Result><Products/><Applications/></Office></Software></GenuineResults>

Spsys.log Content: 0x80070002

Licensing Data-->
Softwarelizenzierungsdienst-Version: 6.1.7601.17514

Name: Windows(R) 7, Professional edition
Beschreibung: Windows Operating System - Windows(R) 7, OEM_SLP channel
Aktivierungs-ID: 50e329f7-a5fa-46b2-85fd-f224e5da7764
Anwendungs-ID: 55c92734-d682-4d71-983e-d6ec3f16059f
Erweiterte PID: 00371-00178-926-700004-02-1031-7600.0000-1972014
Installations-ID: 013122779243770700034040696210049762791363371085030535
Prozessorzertifikat-URL: [URL="http://go.microsoft.com/fwlink/?LinkID=88338"]SpcService Web Service[/URL]
Computerzertifikat-URL: [URL="http://go.microsoft.com/fwlink/?LinkID=88339"]RacService Web Service[/URL]
Lizenz-URL verwenden: [URL="http://go.microsoft.com/fwlink/?LinkID=88341"]UseLicenseService Web Service[/URL]
Product Key-Zertifikat-URL: [URL="http://go.microsoft.com/fwlink/?LinkID=88340"]PkcService Web Service[/URL]
Teil-Product Key: 7TP9F
Lizenzstatus: Lizenziert
Verbleibende Windows Rearm-Anzahl: 4
Vertrauenswürdige Zeit: 20.10.2015 13:52:14

Windows Activation Technologies-->
HrOffline: 0x00000000
HrOnline: N/A
HealthStatus: 0x0000000000000000
Event Time Stamp: N/A
ActiveX: Not Registered - 0x80040154
Admin Service: Not Registered - 0x80040154
HealthStatus Bitmask Output:


HWID Data-->
HWID Hash Current: MAAAAAEABAABAAEAAAABAAAAAQABAAEAeqh8YEZvYCHmcoj9ZP6e4AQDri72jEbK

OEM Activation 1.0 Data-->
N/A

OEM Activation 2.0 Data-->
BIOS valid for OA 2.0: yes
Windows marker version: 0x20001
OEMID and OEMTableID Consistent: yes
BIOS Information:
  ACPI Table Name    OEMID Value    OEMTableID Value
  APIC            DELL          FX09
  FACP            DELL          FX09
  HPET            DELL          FX09
  MCFG            DELL          FX09
  SLIC            GBT           GBTUACPI
  DMY2            DELL          FX09

Edit: Put the text in a Box so it won't mess up the Thread as much.



[Layback Bear]

From your first post.

http://speccy.piriform.com/results/W...4d888BzOGv1cTB

This shows exactly what ram you have install and exactly the specs.

Physical Memory
Memory Usage:
64 %

Total Physical:
2,75 GB

Available Physical:
997 MB

Total Virtual:
5,49 GB

Available Virtual:
3,27 GB



SPD
Number Of SPD Modules:
4


Slot #1
Type:
DDR2

Size:
2048 MBytes

Manufacturer:
Corsair

Max Bandwidth:
PC2-6400 (400 MHz)

Part Number:
VS2GB800D2


Timing table

JEDEC #1
Frequency:
270,3 MHz

CAS# Latency:
4,0

RAS# To CAS#:
4

RAS# Precharge:
4

tRAS:
13

tRC:
15

Voltage:
1,800 V



JEDEC #2
Frequency:
400,0 MHz

CAS# Latency:
5,0

RAS# To CAS#:
5

RAS# Precharge:
5

tRAS:
18

tRC:
22

Voltage:
1,800 V





Slot #2
Type:
DDR2

Size:
1024 MBytes

Manufacturer:
Kingston

Max Bandwidth:
PC2-6400 (400 MHz)

Part Number:
KTC1G-UDIMM

Serial Number:
B20EA1E8

Week/year:
02 / 08


Timing table

JEDEC #1
Frequency:
200,0 MHz

CAS# Latency:
3,0

RAS# To CAS#:
3

RAS# Precharge:
3

tRAS:
9

tRC:
12

Voltage:
1,800 V



JEDEC #2
Frequency:
266,7 MHz

CAS# Latency:
4,0

RAS# To CAS#:
4

RAS# Precharge:
4

tRAS:
12

tRC:
16

Voltage:
1,800 V



JEDEC #3
Frequency:
400,0 MHz

CAS# Latency:
5,0

RAS# To CAS#:
5

RAS# Precharge:
5

tRAS:
18

tRC:
23

Voltage:
1,800 V





Slot #3
Type:
DDR2

Size:
2048 MBytes

Manufacturer:
Corsair

Max Bandwidth:
PC2-6400 (400 MHz)

Part Number:
VS2GB800D2


Timing table

JEDEC #1
Frequency:
270,3 MHz

CAS# Latency:
4,0

RAS# To CAS#:
4

RAS# Precharge:
4

tRAS:
13

tRC:
15

Voltage:
1,800 V



JEDEC #2
Frequency:
400,0 MHz

CAS# Latency:
5,0

RAS# To CAS#:
5

RAS# Precharge:
5

tRAS:
18

tRC:
22

Voltage:
1,800 V





Slot #4
Type:
DDR2

Size:
1024 MBytes

Manufacturer:
Kingston

Max Bandwidth:
PC2-6400 (400 MHz)

Part Number:
KTC1G-UDIMM

Serial Number:
B10EA1E8

Week/year:
02 / 08


Timing table

JEDEC #1
Frequency:
200,0 MHz

CAS# Latency:
3,0

RAS# To CAS#:
3

RAS# Precharge:
3

tRAS:
9

tRC:
12

Voltage:
1,800 V



JEDEC #2
Frequency:
266,7 MHz

CAS# Latency:
4,0

RAS# To CAS#:
4

RAS# Precharge:
4

tRAS:
12

tRC:
16

Voltage:
1,800 V



JEDEC #3

Also your install of Windows 7 is counterfeit.
You have a Gigabyte retail motherboard with a OEM/SLP for a Dell bios Dated Date>20080131000000.000000.

Can't be; Windows 7 didn't come out until 2009.

You need to start with proper ram and a Clean install of Windows 7 with the proper COA key.



[Slyve]

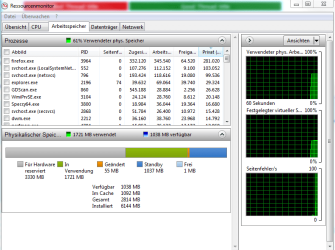

Maybe I am misreading something, then. I am currently looking at speecy and it shows multiple "JEDEC" for each Ram Block. Since all of them run at 400mhz dual channel, i am taking the latency from the JEDEC that say 400mhz. And they are all 5-5-5-18

Is this incorrect?

Also, the Problem still persists when i remove the Kingston Ram blocks. The Corsair ones are identical, they came out of the same Box.



[Slyve]

I took the HDD from another PC and switched the Board in because it had more RAM slots. Then i made it bootable with paragon adaptive restore.

Also, could you explain why exactly the RAMs are incompatible? I still don't understand. Even when i take the Kingston ram out, the Problem stays the same.



[Layback Bear]

Please read my post #4 again. I have updated it.

All ram specs should match just like I posted in my post #2.

All ram should be match. Same brand, speed, timing, bought as matched.

Until you install a legal Windows 7 I will not offer anymore help.



[Slyve]

The install is, to my knowledge, legal. The System was already set up when i started using the PC, i only changed the Hardware and made it bootable with Paragon Adaptive Restore.

How can i check if it isn't a legit copy? Shouldn't Windows Check for that by itself?



[Layback Bear]

The log you posted is how to check if a system with Windows 7 is proper or not.
Your log indicates your system is counterfeit.
It counterfeit is several ways.

Changing a motherboard is considered by Microsoft as a new system and a OEM/SLP COA key can not be used on any computer other than the one it was install first.

You can not have a proper OEM/SLP used on a system with your old bios date. Your bios date is 2008. Windows 7 didn't come out until 2009.

This boat won't float.



[Slyve]

So i have to change the Motherboard back? I still have the old hardware.



[Layback Bear]

You could try that. It might work. I have never tried. What method are you going to use to install Windows 7 with the proper COA key?
What operating system did you computer come with?

When I build a new system I just buy a new Windows 7 OEM/Builders and install it. You must be very careful where you buy Windows 7. Their are a lot of counterfeits being sold.



[Slyve]

I'll just try and change the Hardware back tomorrow. The Problem never occured on the old Board. Also, the new one isn't all that great anyway. Running at 85°C Idle.

In any case, that should solve the Problem. Thanks for your Help!



[Layback Bear]

You did not answer my question.
What operating system did your computer come with?



[Slyve]

Sorry, didn't read it all. I actually don't know. I only started to work here recently, not even 2 months ago.

The one i am using right now was already set up as a working computer.

The Dell PC i took the board from was basically unused for testing purposes, there was no HDD in there, but it originally came with XP (The Sticker was still on the Case)

When i change the hardware back as it was before, i will use paragon adaptive restore again, so the system will be able to boot on new hardware without re-installing windows. The same way i did it yesterday when i changed the board in the first place.

Because of that, i didn't need to re-install or re-activate windows. I managed to use the installation that was already there.



[Layback Bear]

That old of system might of come with Windows XP. If it did you will still have to buy Windows 7 with the proper COA key.

Is their a Windows 7 sticker on the computer. It will look something like this.



[Slyve]

There are stickers on both PCs. One for XP on the old one (the one i took the board out of) and one for win7 on the one i am currently using.

I assume this windows install came with the PC, although i can't be sure. I really hope that changing the Board back will resolve this issue. The System is running like crap with 2,75GB Ram.



[Layback Bear]

If your old motherboard came with XP then you can install XP on it.
In order to properly install Windows 7 you will need to buy Windows 7.



[Slyve]

If your old motherboard came with XP then you can install XP on it.
In order to properly install Windows 7 you will need to buy Windows 7.

Thought as much. Then it should, theoretically, work normally, once i put the board the Win 7 PC came with back in, right?

Then everything would be back the way it was before i tried to upgrade the system.



[Layback Bear]

Let me try again to explain.
If you use the old mother board or the new motherboard if you want Windows 7 you will need to buy Windows 7 with the proper COA key.

If you put the computer back the way it was when you started you should be able to use Windows XP. You will just have to install it unless you have the untouched hard drive that the system came with.



[Slyve]

I never had the drive with Windows XP came with.

I did have the complete and working PC with windows 7, though. Then i combined the hardware of both PCs so i could install more ram blocks and made windows 7 bootable with paragon adaptive restore (found the guide for that here on the forums, actually) and it worked. Except that i can only use 2,75GB of Ram.

My Idea now is that i will rebuild the system exactly the way it was before i started to fiddle with it, in the hopes of undoing whatever i f-ed up.

The Hardware of the Windows XP PC will not be used, since i don't even know if anything of it works (except the board)
