Overclocking CPU

[petko131]

I have a really old CPU. (Pentium 4 3.2 Ghz)

I just want to play around with my pc, and "tune" it a little
Have a Asus P5N-D MoBo, and i have entered the BIOS several times, and i have learned it very well, and i know what i am doing. I have a option to overclock the system by : 5, 10, 15 and 20%. I have started with 5%(3360 Mhz), and i used the pc for 9 hours-the temperatures have raised for 3-4 degreesC, i didn't notice anything else weird.
Then i went to 10% (3520 MHz). I opened CPU-Z and i noticed that the voltage is going from 1.216V to 1.312V. The Bus speed variates from 219.97MHz to 220.19MHz (when the cpu was 3.2 the bus speed was 200 MHZ)
Same variations appear with the FSB : 879.97 to 880.03 (bf OC-ing was 800)

I am using a stock intel 775 cooler, But i am going to buy a Cooler Master Hyper TX3.
My temps: CPU 59C
GPU 34C
MB 39C

I am pretty new in the pc world, but i am a fast learner and i already know a lot of things.
By opening this thread i want to find out, with your help, how far can i go. I will try to make a picture of my BIOS so that you can have a better overview of my situation.
Cheers!



[Pedroc1999]

I know it is quite a bit to ask but could you copy your system specs onto a post and send it as my phone aint showing them...


Yes you have managed to increase it 300 odd mhz.as long as your temperature stays lowish(under65-70) then keep going.but from here on in go up in 1s instead of 5s



[Pedroc1999]

Keep the temperature under 70 as that is the temperature it starts to throttle back



[Dwarf]

He's currently offline, so I've copied them for you:



[petko131]

While playing games, the CPU doesn't heat over 59C-with the stock cooler!-the temps increased 3-4 C after OC-ing! and i can set higher graphics!
I have a Cooler master Hyper TX3 coming soon (in like 2 days), or a Arctic Freezer 7 Pro- can't make the choice: the TX3 costs 2 times the 7PRO(here in Serbia), but i don't know if it's worth it.

Should i increase the CPU voltage? Can i go to 15% or 20%?



[petko131]

He's currently offline, so I've copied them for you:

View attachment 244241 View attachment 244242

Thanks



[Pedroc1999]

thank you, im back on pc now.So.... it has been known for those pus to reach 5.0+ I personalty dought you will reach that...Well this random guy randomly set the voltage to a random setting and the buss to a random setting and it randomly booted at 4.5. He was actually trying to kill the pc. ended up with a round of applause!!!

Dont be him!!!

take it slow, adjust the multiplier untill it wont boot,or if it is locked then adjust the bus untill it wont boot,then bump the voltage up a tiny bit remember to keep running stress test for every other adjustment, and whne it gets crictical then every adjusment. always write down you last know setup that booted



[petko131]

thank you, im back on pc now.So.... it has been known for those pus to reach 5.0+ I personalty dought you will reach that...Well this random guy randomly set the voltage to a random setting and the buss to a random setting and it randomly booted at 4.5. He was actually trying to kill the pc. ended up with a round of applause!!!

Dont be him!!!

take it slow, adjust the multiplier untill it wont boot,or if it is locked then adjust the bus untill it wont boot,then bump the voltage up a tiny bit remember to keep running stress test for every other adjustment, and whne it gets crictical then every adjusment. always write down you last know setup that booted

I don't know for any stress test, so if you could recommend me one ore two...

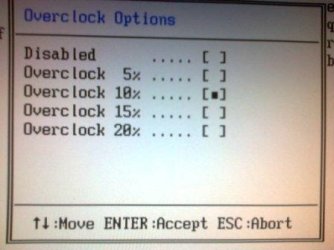

In my BIOS, i don't have an option (or i don't know were to find it ) to increase the clock for 5 Mhz, i just found how to increase the clock for 5%; 10%; 15%; 20%

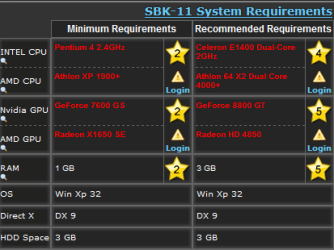

I am benchmarking my temps and CPU and GPU stresses while gaming. I am playing SBK 2011 at full settings (*without FSAA* have now idea what is that and i don't like it )



[Pedroc1999]

Firstly download prime95.10minutes of this will be enough for most overclockers tuning their rig.run it every other small adjustment.second.could you take a few pictures of your bios so we can have a look at what your leading with



[petko131]

I'm going to reboot my pc and make photos be back in 10 minuets!



[petko131]

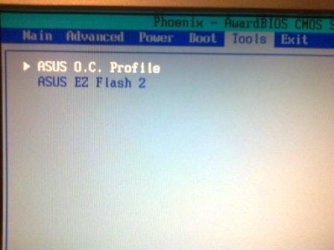

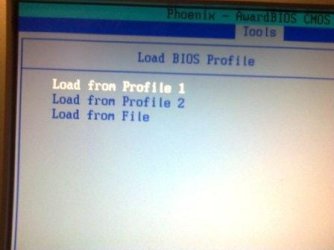

Here are the BIOS pictures



[petko131]

Here are the BIOS pictures

#2 of these pictures



[petko131]

Here are the BIOS pictures

#2 of these pictures

#3 of these pictures



[petko131]

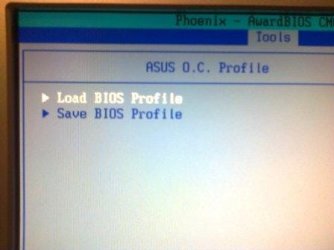

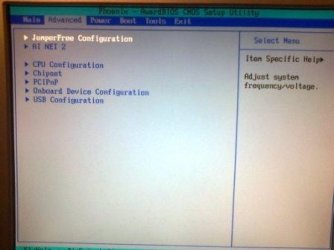

Here are the BIOS pictures

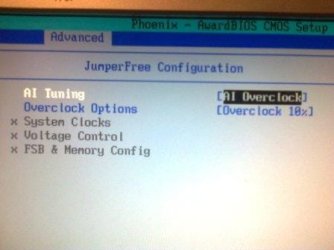

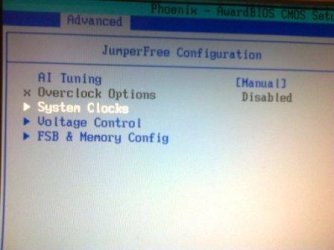

This is how the system is set now, then i changed AI Tuning to manual (5th image and further on), and went through the rest of the menu in order to show you what i see.



[Pedroc1999]

Ok. As far as i can see that board is not like ours made today.because you cant fully manually overclock.look for the cpu bus speed and adjust it higher.if you cant find it then just go up another 5%.thing is you will problably not get the best out of the cpu because the best might be 19% or 28% if you know what i mean



[petko131]

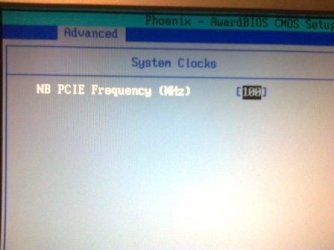

Yea, i understand. Just don't know weather to got to "System clocks", or "FSB & memory config". I watched several videos -How to OC, and every bios had a number (don't know what it presents) witch is multiplied with 16, and there you get your CPU frequency.
How can i get to "that number"?

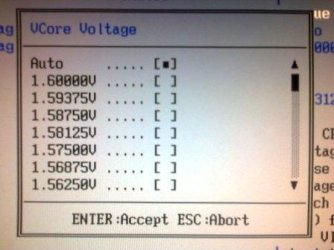

I want to OC my CPU to 3.8-3.9 GHz - is that safe??? don't know much about the voltage settings, but i hope someone will help me
today I'm going to run Prime95 for 8-10 hours in "safe mode and networking"

p.s. Since i overclocked my CPU, when i shut down the pc, it installs 3 updates every time. Is that normal?



[Pedroc1999]

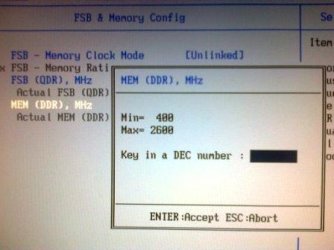

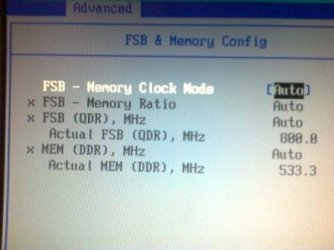

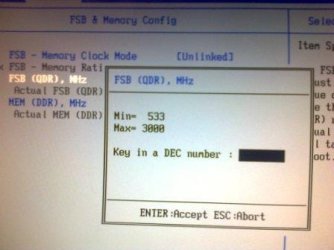

Go into cpuid and see the fsb.shutdoen pc.go in fsb and memory change the qdr from auto to manual.input a number slighlty higher than the one yoi read in cpuid.reboot.check if the fsb has chanhed in cpuid.if so report back with some pi tures of cpuid



[petko131]

Go into cpuid and see the fsb.shutdoen pc.go in fsb and memory change the qdr from auto to manual.input a number slighlty higher than the one yoi read in cpuid.reboot.check if the fsb has chanhed in cpuid.if so report back with some pi tures of cpuid

Don't quite understand this post :shock:



[petko131]

I have bought a Arctic Freezer 7 Pro, mounted it, and the temps doped for 15 C, so now i can OC further



[Pedroc1999]

Have fun.go untill it wo t boot and keep controlllong the temperature
