Power Efficiency Diagnostics Report

How to Run a Power Efficiency Diagnostics Report in Windows 7 and Windows 8​

   Information

The Power Efficiency Diagnostics will analyze your system for common energy efficiency and battery life problems, and report any errors, warnings, and informational details found.

This tutorial will show you how to run a power efficiency diagnostics report of your computer in Windows 7 and Windows 8.

   Warning

You should run this report when your computer is idle and with no open programs or documents for the best results.

Here's How:

1. Open an elevated command prompt in Windows 7 or Windows 8.

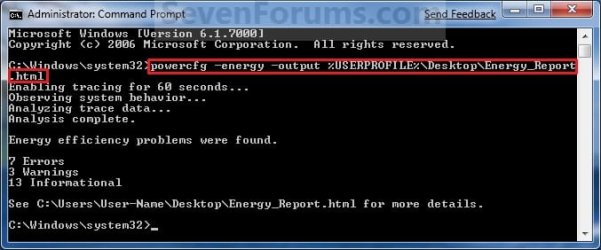

2. In the elevated command prompt, copy and paste the command below, and press Enter. (see screenshot below)
NOTE: This will take 60 seconds to run by default. When done it will give you a quick report of any poroblems found and place a detailed Energy_Report.html file on your desktop.
powercfg -energy -output %USERPROFILE%\Desktop\Energy_Report.html

   Note

You could also change the command to be able to use your own location for where you want the Energy_Report.html file to be placed (outputted) at.

powercfg -energy -output "C:\Full Path\Energy_Report.html"

3. Double click on the Energy_Report.html file on your desktop to open and see the power efficiency diagnostics report in Internet Explorer. (See screenshot below)

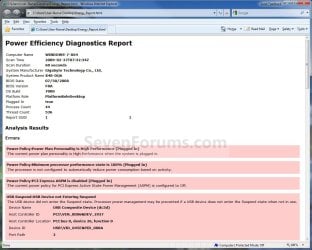

4. This is a copy of my power efficiency diagnostics report in Internet Explorer as an example of what you can see. (See screenshots below)

   Tip

For more information about how to read Powercfg energy reports, you can read the paper "Using PowerCfg to Evaluate System Energy Efficiency" available from the following Microsoft website below as a .docx file.

Using PowerCfg to Evaluate System Energy Efficiency

That's it,
Shawn

Related Tutorials

---

• How to Select a Power Plan in Windows 7
• How to Create or Delete a Custom Power Plan in Windows 7 and Windows 8
• How to Change the Power Plan Settings in Windows 7
• How to Change Power Plan Settings in Windows 8
• How to Restore the Default Power Plan Settings in Windows 7
• How to Enable or Disable Hibernate in Windows 7 and Windows 8
• How to Create a Shortcut to Change Power Plans in Windows 7 and Windows 8
• How to Create a "Power Options" Shortcut in Windows 7 and Windows 8
• How to Create a Power Troubleshoot Shortcut in Windows 7
• How to See Available Sleep States on Your System in Windows 7
• How to See Available Sleep States on Your Windows 8 PC
• How to Generate a Battery Usage Report in Windows 8 and 8.1
• How to View and Override Power Availability Requests in Windows
• How to Generate a Sleep Study Diagnostic Report in Windows 8.1
• How to Generate and View a System Health Report in Windows 8.1
• How to Generate and View a System Performance Report in Windows



[BLISSR]

Can someone tell me what all this means please

[B]Analysis Results[/B]

  [B]Errors[/B]

      Power Policy:Display timeout disabled (On Battery)
    The display is not configured to turn off after a period of inactivity.



      Power Policy:Display timeout disabled (Plugged In)
    The display is not configured to turn off after a period of inactivity.



      CPU Utilization:Processor utilization is high
    The average processor utilization  during the trace was high.  The system will consume less power when the  average processor utilization is very low.  Review processor utilization  for individual processes to determine which applications and services  contribute the most to total processor utilization.
      Average Utilization (%)  10.01


      Platform Power Management Capabilities:PCI Express Active-State Power Management (ASPM) Disabled
    PCI Express Active-State Power  Management (ASPM) has been disabled due to a known incompatibility with  the hardware in this computer.



  [B]Warnings[/B]

      Platform Timer Resolution:Platform Timer Resolution
    The default platform timer resolution  is 15.6ms (15625000ns) and should be used whenever the system is idle.   If the timer resolution is increased, processor power management  technologies may not be effective.  The timer resolution may be  increased due to multimedia playback or graphical animations.
      Current Timer Resolution (100ns units)  10000      Maximum Timer Period (100ns units)  156001


      Platform Timer Resolution:Outstanding Timer Request
    A program or service has requested a timer resolution smaller than the platform maximum timer resolution.
      Requested Period  10000      Requesting Process ID  2280      Requesting Process Path  \Device\HarddiskVolume3\Program Files (x86)\Mozilla Firefox\firefox.exe


      Platform Timer Resolution:Outstanding Timer Request
    A program or service has requested a timer resolution smaller than the platform maximum timer resolution.
      Requested Period  100000      Requesting Process ID  512      Requesting Process Path  \Device\HarddiskVolume3\Windows\System32\svchost.exe


      Power Policy:802.11 Radio Power Policy is Maximum Performance (Plugged In)
    The current power policy for 802.11-compatible wireless network adapters is not configured to use low-power modes.



      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  svchost.exe      PID  1020      Average Utilization (%)  1.38                            Module                                          Average Module Utilization (%)                        \SystemRoot\system32\ntoskrnl.exe  0.64      \Device\HarddiskVolume3\Windows\System32\sysmain.dll  0.35      \SystemRoot\system32\drivers\fltmgr.sys  0.11


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  firefox.exe      PID  2280      Average Utilization (%)  1.00                            Module                                          Average Module Utilization (%)                        \Device\HarddiskVolume3\Program Files (x86)\Mozilla Firefox\xul.dll  0.44      \SystemRoot\system32\ntoskrnl.exe  0.19      \SystemRoot\System32\Drivers\Ntfs.sys  0.04


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  mcshield.exe      PID  2068      Average Utilization (%)  0.94                            Module                                          Average Module Utilization (%)                        \SystemRoot\system32\ntoskrnl.exe  0.24      \Device\HarddiskVolume3\Program Files\Common Files\McAfee\AMContent\scanners\x86_64\avengine\5700.7163\mscan64a.dat  0.13      \Device\HarddiskVolume3\Windows\System32\bcryptprimitives.dll  0.11


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  System      PID  4      Average Utilization (%)  0.50                            Module                                          Average Module Utilization (%)                        \SystemRoot\system32\ntoskrnl.exe  0.24      \SystemRoot\system32\DRIVERS\iaStor.sys  0.04      \SystemRoot\system32\DRIVERS\athrx.sys  0.04


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  dwm.exe      PID  3224      Average Utilization (%)  0.32                            Module                                          Average Module Utilization (%)                        \Device\HarddiskVolume3\Windows\System32\dwmcore.dll  0.09      \Device\HarddiskVolume3\Windows\System32\igd10umd64.dll  0.05      \SystemRoot\system32\ntoskrnl.exe  0.04


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  svchost.exe      PID  5220      Average Utilization (%)  0.32                            Module                                          Average Module Utilization (%)                        \SystemRoot\system32\ntoskrnl.exe  0.15      \SystemRoot\System32\Drivers\Ntfs.sys  0.07      \SystemRoot\system32\drivers\fltmgr.sys  0.04


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  ASDSrv.exe      PID  1588      Average Utilization (%)  0.31                            Module                                          Average Module Utilization (%)                        \Device\HarddiskVolume3\Program Files (x86)\Anvisoft\Anvi Smart Defender\Swordfish.dll  0.13      \Device\HarddiskVolume3\Windows\SysWOW64\ntdll.dll  0.11      \SystemRoot\system32\ntoskrnl.exe  0.02


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  FlashPlayerPlugin_17_0_0_134.exe      PID  856      Average Utilization (%)  0.31                            Module                                          Average Module Utilization (%)                        \SystemRoot\system32\ntoskrnl.exe  0.08      \Device\HarddiskVolume3\Windows\SysWOW64\Macromed\Flash\NPSWF32_17_0_0_134.dll  0.07      \Device\HarddiskVolume3\Windows\SysWOW64\Macromed\Flash\FlashPlayerPlugin_17_0_0_134.exe  0.04


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  olicenseheartbeat.exe      PID  5840      Average Utilization (%)  0.30                            Module                                          Average Module Utilization (%)                        \SystemRoot\system32\ntoskrnl.exe  0.11      \Device\HarddiskVolume3\Program Files\Microsoft Office  15\root\vfs\ProgramFilesCommonX86\Microsoft  Shared\OFFICE15\AppVIsvSubsystems32.dll  0.04      \Device\HarddiskVolume3\Windows\SysWOW64\ntdll.dll  0.03


      CPU Utilization:Individual process with significant processor utilization.
    This process is responsible for a significant portion of the total processor utilization recorded during the trace.
      Process Name  lsass.exe      PID  744      Average Utilization (%)  0.23                            Module                                          Average Module Utilization (%)                        \SystemRoot\system32\ntoskrnl.exe  0.10      \Device\HarddiskVolume3\Windows\System32\bcryptprimitives.dll  0.06      \Device\HarddiskVolume3\Windows\System32\rpcrt4.dll  0.03


  [B]Information[/B]

      Platform Timer Resolution:Timer Request Stack
    The stack of modules responsible for the lowest platform timer setting in this process.
      Requested Period  10000      Requesting Process ID  2280      Requesting Process Path  \Device\HarddiskVolume3\Program Files (x86)\Mozilla Firefox\firefox.exe                                Calling Module Stack                        \Device\HarddiskVolume3\Windows\SysWOW64\ntdll.dll
 \Device\HarddiskVolume3\Windows\SysWOW64\winmm.dll
 \Device\HarddiskVolume3\Program Files (x86)\Mozilla Firefox\xul.dll


      Platform Timer Resolution:Timer Request Stack
    The stack of modules responsible for the lowest platform timer setting in this process.
      Requested Period  10000      Requesting Process ID  512      Requesting Process Path  \Device\HarddiskVolume3\Windows\System32\svchost.exe                                Calling Module Stack                        \Device\HarddiskVolume3\Windows\System32\ntdll.dll
 \Device\HarddiskVolume3\Windows\System32\mmcss.dll
 \Device\HarddiskVolume3\Windows\System32\ntdll.dll
 \Device\HarddiskVolume3\Windows\System32\mmcss.dll
 \Device\HarddiskVolume3\Windows\System32\svchost.exe
 \Device\HarddiskVolume3\Windows\System32\sechost.dll
 \Device\HarddiskVolume3\Windows\System32\kernel32.dll
 \Device\HarddiskVolume3\Windows\System32\ntdll.dll


      Power Policy:Active Power Plan
    The current power plan in use
                            Plan Name                                              OEM Balanced                            Plan GUID  {381b4222-f694-41f0-9685-ff5bb260df2e}


      Power Policy:Power Plan Personality (On Battery)
    The personality of the current power plan when the system is on battery power.
      Personality                            Balanced


      Power Policy:Video Quality (On Battery)
    Enables Windows Media Player to optimize for quality or power savings when playing video.
      Quality Mode                            Balance Video Quality and Power Savings


      Power Policy:Power Plan Personality (Plugged In)
    The personality of the current power plan when the system is plugged in.
      Personality                            Balanced


      Power Policy:Video quality (Plugged In)
    Enables Windows Media Player to optimize for quality or power savings when playing video.
      Quality Mode                            Optimize for Video Quality


      System Availability Requests:Analysis Success
    Analysis was successful. No energy efficiency problems were found.  No information was returned.



      USB Suspend:Analysis Success
    Analysis was successful. No energy efficiency problems were found.  No information was returned.



      Battery:Battery Information
          Battery ID  3FBFSimplo Li_Ion_4000mA       Manufacturer  Simplo       Serial Number  3FBF      Chemistry  Lion      Long Term  1      Design Capacity  48840      Last Full Charge  43834


      Platform Power Management Capabilities:Supported Sleep States
    Sleep states allow the computer to  enter low-power modes after a period of inactivity.  The S3 sleep state  is the default sleep state for Windows platforms.  The S3 sleep state  consumes only enough power to preserve memory contents and allow the  computer to resume working quickly.  Very few platforms support the S1  or S2 Sleep states.
      S1 Sleep Supported  false      S2 Sleep Supported  false      S3 Sleep Supported  true      S4 Sleep Supported  true


      Platform Power Management Capabilities:Adaptive Display Brightness is supported.
    This computer enables Windows to automatically control the brightness of the integrated display.



      Platform Power Management Capabilities:Processor Power Management Capabilities
    Effective processor power management enables the computer to automatically balance performance and energy consumption.
      Group  0      Index  0      Idle (C) State Count  3      Performance (P) State Count  14      Throttle (T) State Count  8


      Platform Power Management Capabilities:Processor Power Management Capabilities
    Effective processor power management enables the computer to automatically balance performance and energy consumption.
      Group  0      Index  1      Idle (C) State Count  3      Performance (P) State Count  14      Throttle (T) State Count  8


      Platform Power Management Capabilities:Processor Power Management Capabilities
    Effective processor power management enables the computer to automatically balance performance and energy consumption.
      Group  0      Index  2      Idle (C) State Count  3      Performance (P) State Count  14      Throttle (T) State Count  8


      Platform Power Management Capabilities:Processor Power Management Capabilities
    Effective processor power management enables the computer to automatically balance performance and energy consumption.
      Group  0      Index  3      Idle (C) State Count  3      Performance (P) State Count  14      Throttle (T) State Count  8



[Brink]

Hello Blissr, and welcome to Seven Forums.

It's an analysis of your PC's power management. There's to much to listed to explain every bit of it here. Most of it is pretty much straight forward for what it says, but did you have anything specific in mind?



[BLISSR]

Hi was just wondering anything of concern to be worried about main reason for doing it was to check battery power
thank You



[Brink]

I don't see anything that stands out as unusual or would be an issue.



[BLISSR]

Thank You



[originaljgf]

Apologies for creating a Lazarus thread, but this was one of the first links when researching this. I have never run this program on my system (Vista desktop upgraded to Win7), but just noticed something has been running it periodically since Sept. 2022 and saving the xml files in a "Power Efficiency Diagnostics" folder in windows (the oldest report is "energy-report-2022-09-09.xml", the most recent is June 5 this year, file size varies from 21k-74k, anywhere from one to three reports per month).

What is doing this, and why? Are these reports local or being sent somewhere? Can I (should I) disable it?



[file3456]

You might want to run Autoruns and Process Explorer or Process Hacker to narrow down what it is. Don't disable anything in Autoruns you no nothing about. Feel free to open a separate help thread here.

Note: Process Hacker may trip your anti-virus. It's a false positive.
