Solved RAM Speed Queries

a5hm

New member
Local time
7:12 AM
Messages
20
Location
Swansea
Hi i got 8gb of ram off my brother for christmas along with that i had a new motherboard. now everything seems to run ok but i can't help but get the feeling that my ram is not running at it's correct speed.

The mother board is a gigabyte GA-880GM-UD2H

And the ram is Corsair 4GB (2x2GB) DDR3 1600MHz/PC3-12800 XMS3 i5.. | Ebuyer.com

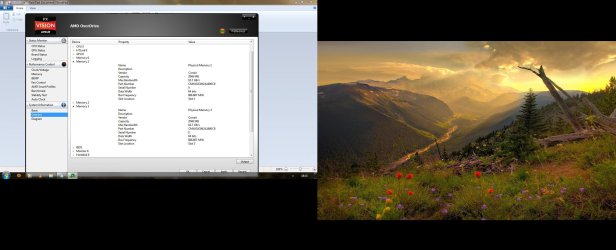

But everywhere it says all over my pc it's running at 666 mhz for example : Untitled.jpg


Any help is appreciated


My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate x64
CPU
Amd Phenom II X4 965 BE. (3.8 GHz)
Motherboard
Gigabyte GA-880GM-UD2H
Memory
8GB DDR3 1600MHZ
Graphics Card(s)
ATI Radeon HD 5830
Sound Card
Creative X-Fi XtremeGamer Fatal1ty Pro Series
Monitor(s) Displays
32" LCD TV
Hard Drives
1x465GB
1x150GB
PSU
Corsair 650W TX
Case
Antec 900
Cooling
Stock
Internet Speed
10 MB/s
Running right where it is supposed to when you consider the default memory speed supported by the memory controller built into the CPU is 1333 MHZ. Also that 666/667 MHz you're seeing needs to be doubled; don't forget DDR stands for double data rate.

VERY IMPORTANT INFORMATION REGARDING AMD AM3 CPU's and RAM SPEEDS

Now with that said, to get the memory to run at 1600 Mhz (800) you will have to manually set it to that speed in that speed in the bios.


My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Me
OS
Win 7 Ultimate x64
CPU
FX-8350 @ 4.6 GHz so far
Motherboard
Asus M5A97 EVO
Memory
ADATA XPG V1 Series Black 8GB DDR3 1600
Graphics Card(s)
Sapphire R9 270x Dual-X
Sound Card
Xonar DGX w/ Corsair Vengence 1300
Monitor(s) Displays
Acer S232HL Abid
Screen Resolution
1920x1080
Hard Drives
120 GB OCZ Vertex 3
500 GB Seagate 7200.12
PSU
Antec Earthwatts 650W Green
Case
Antec Three Hundred
Cooling
Cooler Master 212 EVO
Keyboard
Logitech G510
Mouse
Logitech G500s
Internet Speed
35000/3000
Thanks


My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate x64
CPU
Amd Phenom II X4 965 BE. (3.8 GHz)
Motherboard
Gigabyte GA-880GM-UD2H
Memory
8GB DDR3 1600MHZ
Graphics Card(s)
ATI Radeon HD 5830
Sound Card
Creative X-Fi XtremeGamer Fatal1ty Pro Series
Monitor(s) Displays
32" LCD TV
Hard Drives
1x465GB
1x150GB
PSU
Corsair 650W TX
Case
Antec 900
Cooling
Stock
Internet Speed
10 MB/s
