Sharing a single MB SATA Connector between two Hard Drives?

[Mike Lynch]

Is it possible?

Other than an add in PCI Card, is there any adapter that allows this?

Sort of like the old Master / Slave IDE Cables?

Your feedback is appreciated.

Mike Lynch



[Barman58]

Mike, they do the splitter cables but not sure what other bits you may need ...

503 - Amazon UK Link



[Mike Lynch]

Thank you for researching and replying!

Both of my Motherboards SATA Connectors are in use.
One for the Hard Drive and one for the DVD Drive.
There are no PCI expansion Slots.

I was hoping for some solution that would allow me to Daisy Chain or Connect two SATA Disk Drives off of one Motherboard SATA Connector.
This would allow me to have an additional Hard Drive.

Mike



[Barman58]

My Dell XPS 17 laptop has a jack Plug for headphones/speakers Etc, An SD card reader as Bespoke connectors and Four full function USB-C sockets /ports for everything else

My desktop is currently offline waiting for me to find time to rebuild it so I am running the laptop as a desktop This involves a number of external adaptors daisy-chained into others to run several external drives, up to two external 4K monitors, Ethernet network and is running well, OK this is not a cheap laptop but it shows that the technology is keeping up with current user needs



[SIW2]

Thank you for researching and replying!

Both of my Motherboards SATA Connectors are in use.
One for the Hard Drive and one for the DVD Drive.
There are no PCI expansion Slots.

I was hoping for some solution that would allow me to Daisy Chain or Connect two SATA Disk Drives off of one Motherboard SATA Connector.
This would allow me to have an additional Hard Drive.

Mike

what is the motherboard ?

I dont know a way to split a sata port to two disks.

are you sure there are only 2 sata ports ?

otherwise a pcie adapter or an adapter from m2 a/e wifi port



[Mike Lynch]

Found an Example that is somewhat like what I'm searching for:

Dual+docking+station+with+cloning

It is a Docking Station with two External Mounts for Internal Disk Drives.

Somehow it can differentiate between the two Disk Drive, allowing the O/S to assign them different Drive Letters, on ONE USB Cable.

I does what I want HOWEVER, I'm looking for a Cable WITHOUT all the Hardware!

I need just an intelligent Cable, one end attaching to the MB and two Sata Connectors at the other end.

This Device, the Drive Duplicator, does what I want but it has ALL the mounting Hardware I do not need.

I will use a 2.5 inch mounting device with two SATA Hard Drives mounted in it and just attach the Cable to them.

If anyone knows of such a Cable, please let me know!

Mike Lynch



[Barman58]

All modern Drives have a unique device ID and although the basic windows software could not specifically decode the ID on the drive to provide all the data encoded there It knows enough to know that there are multiple drives in a system and allocate them different Drive letters inside Windows so you would simply select the drive you want to save to as with any other drive in a multi Drive system



[Mike Lynch]

Thank you but that is not what I was looking for!

If a manufacture can identify two unique drives in the end of a single USB Cable why cannot it be done from a single SATA Adapter on a MotherBoard?



[MisterEd]

If a manufacture can identify two unique drives in the end of a single USB Cable why cannot it be done from a single SATA Adapter on a MotherBoard?

Because the SATA standard was NOT designed for more than one drive per port. There is no workaround that I know of.

Other possible solutions:

• Use an external USB/SATA hard drive
• Replace your hard drive with a larger capacity one
• Connect a hard drive where the DVD is connected now. Then use an external DVD drive.



[Mike Lynch]

SIW2,

what is the motherboard ? I have searched but have been unable to find it.

I dont know a way to split a sata port to two disks. That's my dilemma.


are you sure there are only 2 sata ports ? From all I have read and seen, YES!

otherwise a pcie adapter or an adapter from m2 a/e wifi port

I'll paste what I have found below:

[h=1]EliteOne 800 G1 All-in-One PC - Document List[/h]HP EliteOne 800 G1 All-in-One PC Product Specifications
[h=1]HP EliteOne 800 G1 All-in-One PC - Identifying Co[/h][h=1][/h][h=1]HP EliteOne 800 G1. AIO Desktop. i5 2.90GHz - 8GB ram - Win 10 Pro - 120 SSD 887758592045 | eBay[/h]​

[FONT=&quot][/FONT][FONT=&quot][/FONT]



[SIW2]

looks like blue, white, black that is 3

HP (697289-001) EliteOne 800 G1 AIO Motherboard (739680-001)



[Mike Lynch]

I follow that however it's not the Motherboard for the following:

HP EliteOne 800 G1 All-in-One Computer - Intel Core i5 i5-4670S 3.1GHz - Desktop

Why it's so difficult to find amazes me!

- - - Updated - - -

While I'm afraid to disassemble the Unit, I'll give it a try and post a photo and number if available.

Mike Lynch



[SIW2]

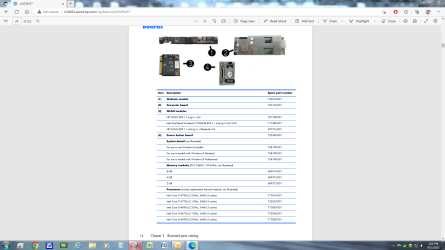

according to your screenshot it is one of these three



I would assume the difference is the firmware msdm table on the latter two. And that the first one ( non windows 8) has a slic table.

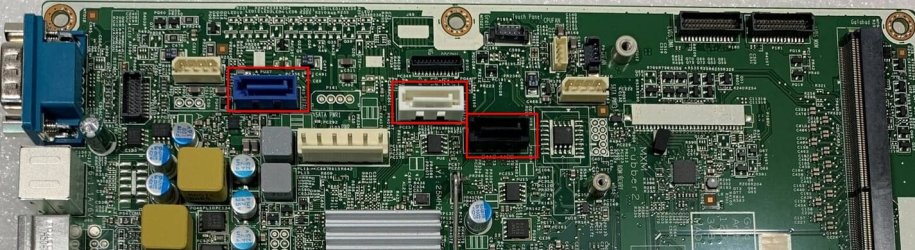

758190-001 is available online in several places and they all match the picture I posted with 3 sata ports.

same 3 sata ports on this one as well

HP ElitePro 800G1 AiO System Motherboard 758190-601 758190-001 758190-501

Probably one of them is attached to the dvdrom drive.



[wither 2]

If you have a desktop, how many SATA connections are available on your power supply? Perhaps you can add an additional connector cable.



[Mike Lynch]

SIW2,

I'm close to having some direction.
I began taking the AIO apart however it's a daunting task.
I got far enough to see a third unused SATA Adapter "under" an almost inaccessible are of the AIO.
I'm trying to discover how to remove the parts that are in the way.
I've taken several photos to help explain my dilemma.
I need to transfer them to the PC from my phone.
Later!

Mike Lynch



[SIW2]

Apparently there is also an msata connector next to the cmos battery

HP EliteOne 800 AiO Graphics Card Upgrade - HP Support

[url]http://h10032.www1.hp.com/ctg/Manual/c03916056Community - 8011122[/url]

adapters are available

mSATA to SATA HDD / SSD Adapter

the machine is probabaly not worth much more than the cost of that adapter.



[Mike Lynch]

"the machine is probably not worth much more than the cost of that adapter."

True but it has a place in my life!

In 1967 I was able to purchase my first car, a 1967 Olds 442, directly from the factory.

It was my pride and joy for about 18 months.

Then Camille, my bride of 59 years and 7 months told me she was expecting again.

The 442 was a down payment on a 1969 Olds Vista Cruiser Station wagon.

I guess I'm reliving my 442 dreams through this HP AIO.

I'll start working on the photos now that I've had a good nights sleep.

Mike Lynch



[MisterEd]

Your best solution may be to replace your hard disk with one of larger capacity.



[Mike Lynch]

Thank GOD I was able to remove the Lower Plastic Cover, exposing the Metal Plate that exposed the SATA Connectors.
As it turned out, there were two Blue and one White Connectors on the Mother Board.
One Blue and one White were in use, probably for the DVD and Hard Drive.
I do not know if there is some type of "difference" based upon the Color, might You?

I need to purchase a USB C to USB C cable to connect my Camera where I have the pictures of what I found.
I'll have it later today.

WOW! Getting the Plastic off without breaking it was scarry.

I'll try and make any and all Upgrades I can before replacing it even if it's just installing a Cable.

Thanks again to SWI2 for the documentation and "encouragement"!

Mike Lynch

- - - Updated - - -

A big thank you to Mr. Ed for his suggestion regarding adding a larger drive.
My objective was to have two independent internal hard drives.
One for the O/S, etc., the second for Picasa and it's Photo Gallery.

Again, just personal preference.

Now it "appears" that I'll be able to do just that by installing two 2.5" drives vs. one 3.5" using a disk caddy I have located.
It fits / installs in place of a single 3.5" drive.

Mike Lynch

- - - Updated - - -

Need another assist.
I do not understand what might be the densest MSata Card / Stick that will fit in this PC's Motherboard?
It appears that only a 2220 will fit, is that correct?
I'd like to find a 4TB Card / Stick that will.

Mike Lynch

- - - Updated - - -

I searched for an HP SATA cable to attach the second hard drive.
They ranged from about $50 to $250.
I'll buy one at Wal-Wart.

Mike Lynch



[SIW2]

any sata data cable should do, they are cheap as chips, a couple of bucks. A right angle connector on one end might be easier.



***************************************************************************************

msata is not used much nowadays. You might still find a few 2tb for sale
