Show Us Your Rig [5]

[Britton30]

Great work there Ryan, where are the push fans on the H100? You wife and daughter should like that quite well.



[paulpicks21]

Cheers chap! I'm happy with it but those sleeved cable's are a bitch to arrange in order so they look the same. I gave up in the end
I didn't have time to sharpee the Cougar's yet so i'll still have to do that at some point. Maybe!

Oh yeah, I bet you end up with more on your hands than the fans lol.



[essenbe]

Looks nice, Ryan. Great job.



[ganjiry]

Great work there Ryan, where are the push fans on the H100?

Cheers chap
The push fans are ontop of the rad mate pushing air from outside in.

You wife and daughter should like that quite well.

Yeah the mr's likes it but my daughter doesn't really have any interest.

Oh yeah, I bet you end up with more on your hands than the fans lol.

Hehe! Yeah i hadn't thought of that.

Edit: Cheers Steve



[paulpicks21]

Get some latex gloves mate, it's the safest option for sure!



[ganjiry]

Get some latex gloves mate, it's the safest option for sure!

Already got boxes of em



[Solarstarshines]

Cheers chap! I'm happy with it but those sleeved cable's are a bitch to arrange in order so they look the same. I gave up in the end
I didn't have time to sharpee the Cougar's yet so i'll still have to do that at some point. Maybe!

You bough ta H100 didn't you get the new fans they put in there packages now

I have 2 Sp fans that were better then the one's I bought SP 4.4 mine are 3.1 heavy duty I tell ya



[Dude]

Great job Ryan!



[ganjiry]

You bough ta H100 didn't you get the new fans they put in there packages now

I have 2 Sp fans that were better then the one's I bought SP 4.4 mine are 3.1 heavy duty I tell ya

Yeah i bought the H100i but out of all the Hydro's i've had the fan's never left the box.
I won't replace my Cougar's cos they're just too good at 1000-1100rpm they keep my coolant temp @ 28-30c ish.
The only fan's i hear are the stock AF140's(untill my gpu's crank up) and they're not loud at all but they're not silent either as they put lower quality baring's in the stock one's among other thing's.

Great job Ryan!

Cheers Doug



[silverstormz]

Well well it's a saturday tomorow and I have all day today!

Also I spent 2 hours looking for my screws for my h60 for intel mounting and they were in the one place I didn't look... my bag of screws/mounting things haha ^^



[paulpicks21]

Well well it's a saturday tomorow and I have all day today!

Awesome mate!



[Lady Fitzgerald]

Someone is going to have fun!



[linnemeyerhere]

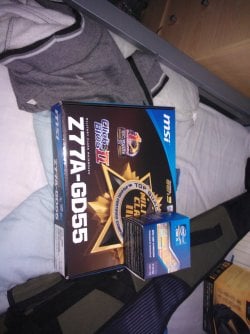

Well well it's a saturday tomorow and I have all day today!

Also I spent 2 hours looking for my screws for my h60 for intel mounting and they were in the one place I didn't look... my bag of screws/mounting things haha ^^

That looks like a great build but do you really need to protect your components in such an manner? lol
Great mobo and CPU and we demand tons of pictures !



[andrew129260]

Here is my rig:

forum upload isnt working?



[paulpicks21]

Here is my rig:

forum upload isnt working?

Working fine for me

Maybe your rig is so darn good the forum won't allow you to post it



[andrew129260]

here is my rig:

I got an internal server error.
Rebooted modem and router still the same.
Weird, I can upload to skydrive no issues.

Skydrive:


https://skydrive.live.com/redir?resid=8D063682B3D3CCF2!5190&authkey=!AM_6NfO5-SKsuFI



[paulpicks21]

here is my rig:

I got an internal server error.
Rebooted modem and router still the same.
Weird, I can upload to skydrive no issues.

Skydrive:


https://skydrive.live.com/redir?resid=8D063682B3D3CCF2!5190&authkey=!AM_6NfO5-SKsuFI

Yeah I can view them on there Andrew.

I don't know if you want comments/suggestions? Basically your cables, in the screenshots I can see you have cut outs for cable management, if you look at my pic above you will see I have routed all the cables out back and then back in through the cutouts, this not only makes it look much nicer but it also helps with airflow in the case as it is less restricted.

My suggestion would be to strip it down a bit and route all ya cables, it's not great fun but very rewarding my friend



[andrew129260]

Thanks

here is my rig:

I got an internal server error.
Rebooted modem and router still the same.
Weird, I can upload to skydrive no issues.

Skydrive:


https://skydrive.live.com/redir?resid=8D063682B3D3CCF2!5190&authkey=!AM_6NfO5-SKsuFI

Yeah I can view them on there Andrew.

I don't know if you want comments/suggestions? Basically your cables, in the screenshots I can see you have cut outs for cable management, if you look at my pic above you will see I have routed all the cables out back and then back in through the cutouts, this not only makes it look much nicer but it also helps with airflow in the case as it is less restricted.

My suggestion would be to strip it down a bit and route all ya cables, it's not great fun but very rewarding my friend

I have actually put as much cables as I can fit behind the second panel haha. (I know it does not look like it.) Back where in the bottom right where all those cables are, I have a ton of them going back behind there. Then then loop back and go into the empty drive bays to prevent the intake fans at the front from getting blocked. I have tried also putting all the cables from the power supply like yours and sticking them behind their, but it seems like there is too many, as I cannot get the cables to fit back there....
It seems to be the best I can do. A lot of the cables are pushed to the back right there, the pics just do not do it justice.
All in all, I am not sure on how to improve upon it more. The back panel just cannot seem to fit anything more back there...(as in close it)

I wish I could get mine to look like yours



[Britton30]

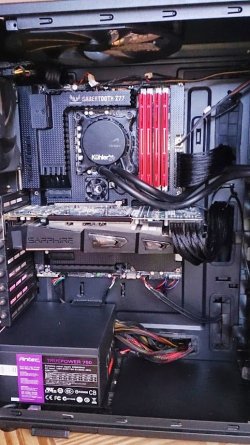

Paul do you have you Kuhler rad mounted to the front of your case somehow?



[paulpicks21]

here is my rig:

I got an internal server error.
Rebooted modem and router still the same.
Weird, I can upload to skydrive no issues.

Skydrive:


https://skydrive.live.com/redir?resid=8D063682B3D3CCF2!5190&authkey=!AM_6NfO5-SKsuFI

Yeah I can view them on there Andrew.

I don't know if you want comments/suggestions? Basically your cables, in the screenshots I can see you have cut outs for cable management, if you look at my pic above you will see I have routed all the cables out back and then back in through the cutouts, this not only makes it look much nicer but it also helps with airflow in the case as it is less restricted.

My suggestion would be to strip it down a bit and route all ya cables, it's not great fun but very rewarding my friend

I have actually put as much cables as I can fit behind the second panel haha. (I know it does not look like it.) Back where in the bottom right where all those cables are, I have a ton of them going back behind there. Then then loop back and go into the empty drive bays to prevent the intake fans at the front from getting blocked. I have tried also putting all the cables from the power supply like yours and sticking them behind their, but it seems like there is too many, as I cannot get the cables to fit back there....
It seems to be the best I can do. A lot of the cables are pushed to the back right there, the pics just do not do it justice.
All in all, I am not sure on how to improve upon it more. The back panel just cannot seem to fit anything more back there...(as in close it)

I wish I could get mine to look like yours

If it don't take 2 people to force the back panel on then you ain't crammed enough cables in lol
