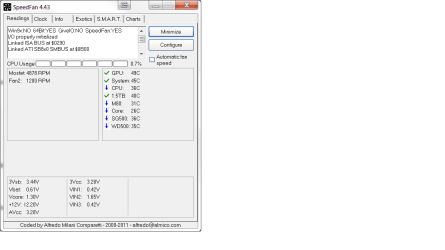

I have touched on this a bit previously, but I have been trying to sort this out since, without any success. I'm totally confused by voltages displayed in SpeedFan, as shown in the screenshot. The only ones that I think that I understand are the 12v, 3Vsb and 3Vcc. I looking for a value for the 5v circuit, and the only thing that I think might be it, is the AVcc, but if it is, it is far too low...the same is true for Vbat.

I don't think that it is a power supply problem, because it was working perfectly on my old rig, and these numbers popped up from the very beginning with the new.

I'm also confused by Vin 1-3, as the only vague reference that I found said that Vin 1 is the RAM voltage, but the only one even close is Vin 2, and it is somewhat too low.

I have been looking for a comprehensive reference to define each of these values without any luck. Can someone point me in the right direction?



[Dwarf]

I'll download and have a play with it when I get home.



[Dwarf]

Here is what I get with SpeedFan:



These figures look OK to me.

I notice that you are using Version 4.43. As you can see, I am using Version 4.44. You could try that to see if it makes a difference.



[stormy13]

Looks like you're not the only one with that motherboard and odd readings,

0001689: Support for Nuvoton NCT6775F - Almico's Bug Tracker

Alfredo says it should be supported no problem, but it doesn't look like it. Maybe post there as well and see what he has to say about it.



[seekermeister]

Here is what I get with SpeedFan:

View attachment 166299

These figures look OK to me.

I notice that you are using Version 4.43. As you can see, I am using Version 4.44. You could try that to see if it makes a difference.

I just updated, but it didn't help.



[seekermeister]

Looks like you're not the only one with that motherboard and odd readings,

0001689: Support for Nuvoton NCT6775F - Almico's Bug Tracker

Alfredo says it should be supported no problem, but it doesn't look like it. Maybe post there as well and see what he has to say about it.

Yes, I did not understand how he could consider that report to be resolved either. Instead of posting another bug report, I just sent him an email to see what he might say about it.
