what is your GPU's Asic Value

[Dude]

Right click on the top of GPU-Z and choose read ASIC quality

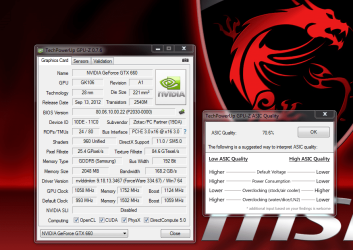

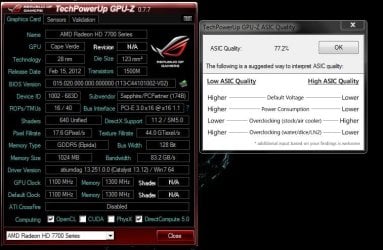

Here is mine



[OvenMaster]

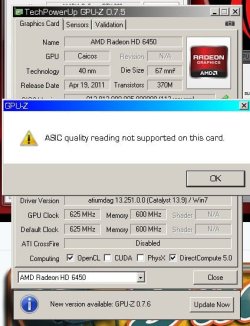

I burst out laughing at my results.



[Solarstarshines]

Mine is pretty low but seems not to bother overclocking



[paulpicks21]

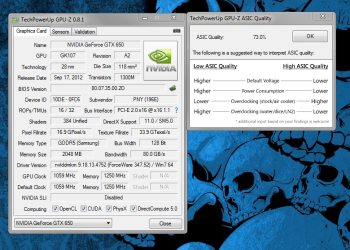

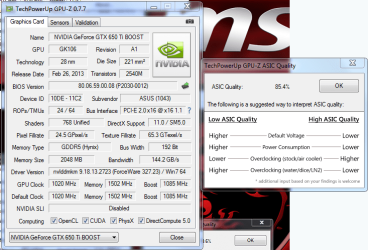

Here is mine.

I don't think we need a leaderboard for this one :roflmao:



[Lava King]

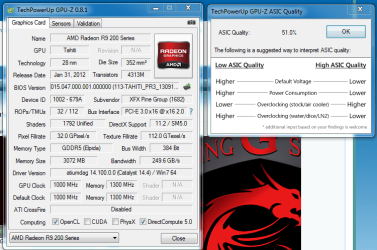

Here's mine. Compared to y'all, it's like I'm trying to compete with Formula 1 cars while driving a NASCAR stocker.



[Britton30]

Higher must mean worse.



[NoN]

Got that asic...for a VaporX Oc edition. Just the average?

The ASIC Quality screenshot on the right can be evoked from GPU-Z's context menu and is individual for each graphics card and GPU. This feature has been developed for Nvidia’s Fermi (GX10x and GF11x) and AMD’s Southern Islands chips (Radeon HD 78xx and HD 79xx) and is supposed to indicate the quality of the specific GPU, in percent, based on electrical leakage data.

The GPU of our sample of the card has an ASIC quality of 76.6%. The higher this number, the lower voltage the GPU needs to work at the default clock rate and the higher overclocking results you can get with it by increasing its voltage.


According to Alexey Nikolaichuk (the author of RivaTuner and MSI Afterburner), the correlation between voltage and quality is like follows:

ASIC quality < 75% - 1.1750 V;
ASIC quality < 80% - 1.1125 V;
ASIC quality < 85% - 1.0500 V;
ASIC quality < 90% - 1.0250 V;
ASIC quality ≤ 100% - 1.0250 V.



[smarteyeball]

One of mine is 70% and the other is 78.6%

Makes some sort of sense. One of my cards default max volts are 1.12, the other is 1.62



[Dude]

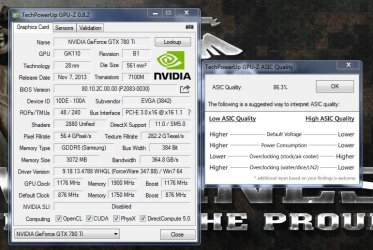

Updated with my new GPU



[Solarstarshines]

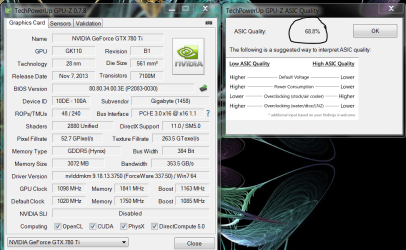

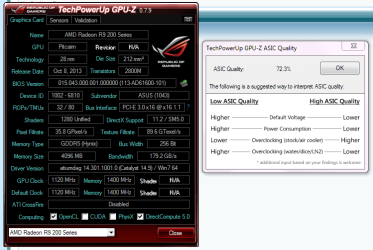

Again ,Mine is so low that the Asic scale doesn't compute lol 68%



[Boozad]

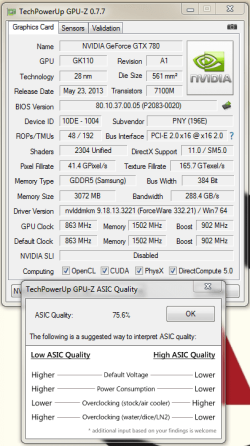

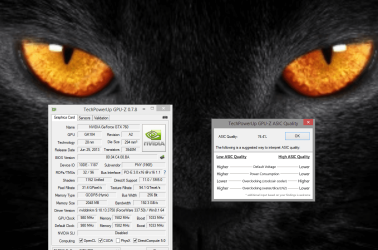

Here's mine.



[HarriePateman]

That is a cool background!



[NoN]

Forgot about that one...here it is:



[Boozad]

That is a cool background!

Here's the 1920x1080 version if you want it.



[essenbe]



[paulpicks21]

Pretty good Steve. Mine is only 71.9 on this card.



[Solarstarshines]

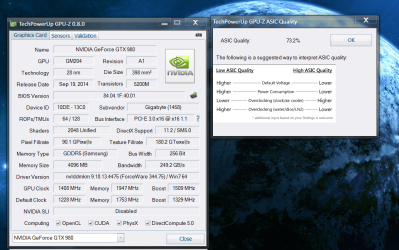

The 980 Asic



[Monster212]

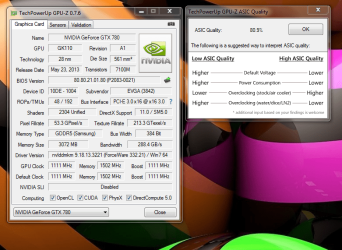

here is mine..



[Mellon Head]

Boy, this is bad:



[N00berG00ber]

my new 780 Ti kingpin
