Where would I find this driver in device mgr

[nate42nd]

What would my back panel e-sata controller be listed as in device manager?

It's not controlled by the PCH on my P55 board. It's controlled by a J-Micron chip that also controls two of my other SATA ports on my motherboard. (I think) I may have 3 SATA controllers))

I am trying to find out which driver I have now so I can update it. Which one of these would it be? (if any)



[zigzag3143]

What would my back panel e-sata controller be listed as in device manager?

It's not controlled by the PCH on my P55 board. It's controlled by a J-Micron chip that also controls two of my other SATA ports on my motherboard. (I think) I may have 3 SATA controllers))

I am trying to find out which driver I have now so I can update it. Which one of these would it be? (if any)

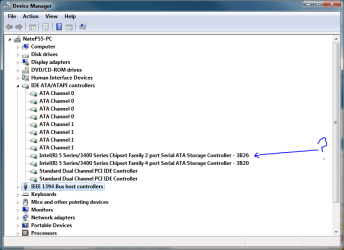

View attachment 32059

Nate I might be mistaken but I believe they already have working drivers. Do you want to upgrade because they aren't working.



[nate42nd]

I ran into a guy on the net with my same setup. His e-sata drive would not work. He even has a similar drive as mine. I am without my e-sata drive for another week so I can't test it. I would just like to know which one it is so if I have the same problem I will know.

He claims he went to J-Micron and installed their latest drivers (instead of MS or Intel's) and now his e-sata drive works fine. He told me to do the same and gave me the link. I just don't know which one it is......


These are the drivers I need he says (I have the link)

// [Package Description]
// RX.XX.XX - Driver would get eSATA setting from BIOS/Option Rom.
// RX.XX.XX_eSATA - Driver would report all Device connected as Removable Device with WriteCache Enabled.
// RX.XX.XX_eSATA_WriteCacheDisabled - Driver would report all Device connected as Removable Device with WriteCache Disabled.
// RX.XX.XX_No_eSATA - Driver would report all Device connected as Fix Device.

I clearly need to do some research. I just thought someone may knwo just by looking. I have to go for a few hours but if anyone knows which one is the JMB362 controller, let me know.



[zigzag3143]

Nate

If you need to find out you can go into device manager. Go to the device, right click> properties>details>pull down the bar that says device description till you see hardware ID's. cut the id and paste into google. It will find you the vendor

see pic



[nate42nd]

So, you would paste that "value" into google. I will give that a try. I know the vendor it's JMicron. Thanks for the help

I will test my e-sata drive when I get it back and see if I have the same problem as this guy had. If I do, I will be back for some help. haha



[zigzag3143]

Nate

you paste the portion that starts VEN (for vendor) and it will find it PM me if you are having trouble cause Im over in vista right now

Ken



[Antman]

It ain't the Intel, so it must be the other. My JMicron also shows as standard PCI controller. It does not matter which of the two non-Intel controllers you choose. They are the same one and the driver will apply to the set.



[nate42nd]

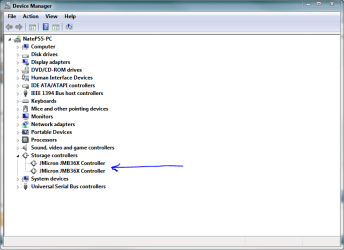

Okay, so that's the one. Now I remember he said the MS driver was not working. That makes sense. Thanks again Antman.



[nate42nd]

I got them installed. Looks like I will be ready for the W7 DVD I (hopefully) get this weekend!
