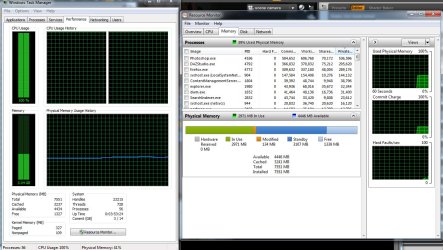

Resource Monitor is your friend.
WIN | type RESMON | ENTER key | Memory tab
Different people will how different values, but as long as you are not adding/removing devices then Hardware Reserved should stay constant. Mine is 259 MB.
Your Installed Memory should stay constant.
To get more insight into your physical memory, then I would like for you to run a PowerShell script which will put a file onto your Desktop. Please attach that file to your next post.
# **********************INSTRUCTIONS**************************
# STEP 1 ** RUN POWERSHELL AS ADMINISTRATOR ******************
# ************************************************************
#
# WIN key | type POWERSHELL | do NOT hit ENTER |
# in the PROGRAMS list, right-click on WINDOWS POWERSHELL |
# choose "Run as administrator" |
# Click on the YES button (if such appears)
#
# WIN key = key with Microsoft log on top
#
# for the guru:
# WIN | type POWERSHELL | CTRL+SHIFT+ENTER key combo | ALT+Y keycombo
# ************************************************************
# STEP 2 ** COPY AND PASTE ***********************************
# ************************************************************
#
# COPY the script using CTRL+C,
# COPY every line of script down thru both EXIT statements
#
# PASTE into Powershell
#----Right-Click at the PowerShell Prompt
#----(Ctrl+V does not work)
#
# Start copying with first script line without a # at start of the line
# Note: Actually, you can paste the entire file if you rather
#-------Lines starting with a # are ignored by PowerShell
# ************************************************************
# STEP 3 ** SCRIPT OUTPUT & SCRIPT PURPOSE *******************
# ************************************************************
# --The script output and purpose is given at the very front of the script
#
# --The script output and purpose is given at the very front of the script
#
# ************************************************************
# ***************** NOTE - POWERSHELL VERSION*****************
# if you receive this error msg:
#--The system can not find the path specified
# you may need to update your PowerShell
# you must be using Powershell 2.0 or later.
#
# To determine your Powershell version:
#---Run PowerShell
#---enter $host.version
#---you should see at least:
# Major Minor Build Revision
# ----- ----- ----- --------
# 2......0......-1.....-1
#
# If you do not see the above, update your Vista/Win 7.
# ************************************************************
# *************** NOTE - EXECUTION POLICY*********************
# If you haven't set the execution policy, you may need to:
#---Run PowerShell
#---enter SET-EXECUTIONPOLICY -EXECUTIONPOLICY REMOTESIGNED
# ************************************************************
PHP:
# ***********************************************
# OUTPUT: MemInfo.TXT file on your desktop
# contains info about your memory
# ***********************************************
function get-ID {
param ([string]$title, [int]$arraycnt, [int]$arrayndx)
$id = " " + $title + " "
If ($arraycnt -ne 1) {$id = $id + [string]$arrayndx + " "}
$id }
function get-title { param ([string]$id)
$hashes = ([int](51 - $id.length)/2)
$hashstr = '#' * $hashes
$title = $hashstr + $id + $hashstr
If ($title.length -le 51) {$title += "#"}
$title }
$sterne = "*" * 79
$obj = New-Object PSObject
$os = gwmi win32_operatingsystem
$id = get-id "OS" 1 0
$PhyMemArray = @(gwmi win32_PhysicalMemoryArray)
$cnt = $phymemarray.count
for ($ndx=1; $ndx -le $cnt; $ndx++) {
$d = $phymemarray[$ndx -1]
$id = get-id "PHYSICAL MEMORY ARRAY" $cnt $ndx
$obj | add-member -membertype noteproperty -name ( Get-title $Id ) -value $sterne
$obj | add-member -membertype noteproperty -name (" Maximum Memory Capacity") -value([string][int]($d.maxcapacity/1048576) + " GB")
$obj | add-member -membertype noteproperty -name (" Number of Memory Devices") -value($d.memorydevices)
}
$arr = @(gwmi win32_PhysicalMemory)
$cnt = $arr.count
for($i=1; $i -le $cnt; $i++){
$d = $arr[$i-1]
$id = get-id "PHYSICAL MEMORY" $cnt $i
$obj | add-member -membertype noteproperty -name (get-title $id) -value $sterne
$obj | add-member -membertype noteproperty -name ($id + "Bank Label") -value($d.banklabel)
# $obj | add-member -membertype noteproperty -name ($id + "Tag") -value($d.tag)
$obj | add-member -membertype noteproperty -name ($id + "Manufacturer") -value($d.manufacturer)
$obj | add-member -membertype noteproperty -name ($id + "Part Number") -value($d.partnumber)
$obj | add-member -membertype noteproperty -name ($id + "Serial Number") -value($d.serialnumber)
$obj | add-member -membertype noteproperty -name ($id + "Capacity") -value([string][int]($d.capacity/1073741824) + " GB")
$obj | add-member -membertype noteproperty -name ($id + "Device Locator") -value($d.devicelocator)
$obj | add-member -membertype noteproperty -name ($id + "Data Width") -value($d.datawidth)
$obj | add-member -membertype noteproperty -name ($id + "Speed") -value($d.speed)
}
$Arr = @(gwmi win32_memoryarray)
$cnt = $arr.count
for($i=1; $i -le $cnt; $i++){
$d = $arr[$i-1];
$id = get-id "MEMORY ARRAY" $CNT $I
$obj | add-member -membertype noteproperty -name (get-title $id) -value $sterne
$obj | add-member -membertype noteproperty -name ($id + "Device ID") -value($d.deviceid)
$obj | add-member -membertype noteproperty -name ($id + "Starting Address") -value($d.startingaddress)
$obj | add-member -membertype noteproperty -name ($id + "Ending Address") -value($d.endingaddress)
}
$Arr = @(gwmi win32_memorydevice)
$cnt = $arr.count
for($i=1; $i -le $cnt; $i++){
$d = $arr[$i-1];
$id = get-id "MEMORY DEVICE" $cnd $i
$obj | add-member -membertype noteproperty -name (get-title $id) -value $sterne
# $obj | add-member -membertype noteproperty -name ($id + "Device ID") -value($d.deviceid)
$obj | add-member -membertype noteproperty -name ($id + "Starting Address") -value($d.startingaddress)
$obj | add-member -membertype noteproperty -name ($id + "Ending Address") -value($d.endingaddress)
}
$obj > $env:userprofile\desktop\MemInfo.txt
EXIT
EXIT
