Hi everyone.



Sometimes when playing games, my display shuts off and looses signal, and there's a weird noise in headphones but tower still running.Windows is completely freezed and I have to reset the tower. And also I have to switch the monitor cable (aka switch from HDMI to VGA or VGA to HDMI) once the tower is reset to get the monitor to get the signal back.


I think it started after I modded the game Skyrim but I'm not 100% sure.
Need help :)

Thank you very much for replies.


My Computer My Computer

At a glance

Windows 7 integrale x64 SP1Intel core i5 760 @2.8GHz 4 coeurs 1156LGA8GB Kingston DDR3 @666.51.MHzNvidia GeForce GTX 1650
Computer type
PC/Desktop
Computer Manufacturer/Model Number
custom build
OS
Windows 7 integrale x64 SP1
CPU
Intel core i5 760 @2.8GHz 4 coeurs 1156LGA
Motherboard
GA-H55-UD3H version du bios F10
Memory
8GB Kingston DDR3 @666.51.MHz
Graphics Card(s)
Nvidia GeForce GTX 1650
Hard Drives
SSD WDCWDS480G2G0A-00JH30 de 447.13 Go SATA III
Firmware: UG400400
Version du SATA: SATA Rev 2.6
Numéro de série: 20109F809207
Antivirus
Kaspersky Free
Browser
Mozilla Firefox
Welcome to the Forum

It can be due to CPU and / or GPU high temperatures.
Do you have a hardware monitor?
Don't need to install. Download, extract and run. You can configure what to see on the taskbar and on the gadget. Very good.



Lets do the basic.
Open a CMD window as administrator and type:
chkdsk c: /f
It will say your disk is in use and if you want to schedule to next start = yes
Restart
Pay attention on the results, specially bad blocks, bad clusters, bad sectors etc

Back to Windows, Open a CMD window as administrator and type:
sfc /scannow

If it finds any problems, reboot and run it again.


My Computers My Computers

System One System Two

  • At a glance

    Windows 7 HP 64i5 6600K - 800MHz to 4200MHz4+4G GSkill DDR4 3000IG - Intel 530
    Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    custom build
    OS
    Windows 7 HP 64
    CPU
    i5 6600K - 800MHz to 4200MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500Mb/s
    Browser
    Firefox 64
    Other Info
    TinyWall firewall

  • At a glance

    Windows 7 Proi7-4500U 800MHz to 3.0GHz(4+4)G DDR3 1600IG intel 4400 + NVIDIA GeForce GT 745M
    Computer type
    Laptop
    System Manufacturer/Model Number
    Asus Q550LF
    OS
    Windows 7 Pro
    CPU
    i7-4500U 800MHz to 3.0GHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics Card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs +
    1T HDD for data
    Internet Speed
    500 Mb/s
    Browser
    Firefox
    Other Info
    TinyWall firewall
Hi Megahertz and thank you for your reply.


Here is the CHKDSK log :



La vérification des fichiers est terminée. (Files check)
1394 enregistrements de grand fichier traités. 0 enregistrements de fichier incorrect traités. 2 enregistrements EA traités. 71 enregistrements d’analyse traités.



La vérification des index est terminée (index check) 586382 entrées d’index traitées.
0 fichiers non indexés analysés. 0 fichiers non indéxés récupérés.



CHKDSK est en train de vérifier les descripteurs de sécurité (étape 3 sur 3)
481536 SD/SID de fichiers traités.

Nettoyage en cours de 338 entrées d’index inutilisées à partir de l’index $SII du fichier 0x9.
Nettoyage en cours de 338 entrées d’index inutilisées à partir de l’index $SDH du fichier 0x9.
Nettoyage en cours de 338 descripteurs de sécurité non utilisés.
La vérification des descripteurs de sécurité est terminée.
52424 fichiers de données traités. CHKDSK vérifie le journal USN...
37299256 octets USN traités. Vérification du journal USN terminée.
CHKDSK a découvert de l’espace libre marqué alloué dans la bitmap de la table de fichiers maîtres (MFT).
CHKDSK a découvert de l’espace libre marqué alloué dans la bitmap du volume.
Windows a effectué des corrections sur le système de fichiers.

468336639 Ko d’espace disque au total.
395607984 Ko dans 367836 fichiers.
206180 Ko dans 52425 index.
0 Ko dans des secteurs défectueux.
599143 Ko utilisés par le système.
65536 Ko occupés par le fichier journal.
71923332 Ko disponibles sur le disque.

4096 octets dans chaque unité d’allocation.
117084159 unités d’allocation au total sur le disque.
17980833 unités d’allocation disponibles sur le disque.

Informations internes :
00 59 07 00 b0 69 06 00 ed 44 0c 00 00 00 00 00 .Y...i...D......
e0 00 00 00 47 00 00 00 00 00 00 00 00 00 00 00 ....G...........
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................



sfc/scannow showed no error.

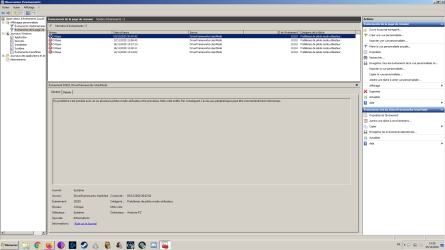

Also, I found this while hanging around in windows : see attachment. Maybe it is irrelevant but maybe it could help.


What's next? :)


Edit : sorry about french... My technical english is really bad, can't translate the log.


Attachments

  • Sans titre.png
    Sans titre.png
    51.5 KB · Views: 1

My Computer My Computer

At a glance

Windows 7 integrale x64 SP1Intel core i5 760 @2.8GHz 4 coeurs 1156LGA8GB Kingston DDR3 @666.51.MHzNvidia GeForce GTX 1650
Computer type
PC/Desktop
Computer Manufacturer/Model Number
custom build
OS
Windows 7 integrale x64 SP1
CPU
Intel core i5 760 @2.8GHz 4 coeurs 1156LGA
Motherboard
GA-H55-UD3H version du bios F10
Memory
8GB Kingston DDR3 @666.51.MHz
Graphics Card(s)
Nvidia GeForce GTX 1650
Hard Drives
SSD WDCWDS480G2G0A-00JH30 de 447.13 Go SATA III
Firmware: UG400400
Version du SATA: SATA Rev 2.6
Numéro de série: 20109F809207
Antivirus
Kaspersky Free
Browser
Mozilla Firefox
No problem, I can read French.
Windows a effectué des corrections sur le système de fichiers. So it did correct some problems.
The good news is that 0 Ko dans des secteurs défectueux.

What about the temperatures?


My Computers My Computers

System One System Two

  • At a glance

    Windows 7 HP 64i5 6600K - 800MHz to 4200MHz4+4G GSkill DDR4 3000IG - Intel 530
    Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    custom build
    OS
    Windows 7 HP 64
    CPU
    i5 6600K - 800MHz to 4200MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500Mb/s
    Browser
    Firefox 64
    Other Info
    TinyWall firewall

  • At a glance

    Windows 7 Proi7-4500U 800MHz to 3.0GHz(4+4)G DDR3 1600IG intel 4400 + NVIDIA GeForce GT 745M
    Computer type
    Laptop
    System Manufacturer/Model Number
    Asus Q550LF
    OS
    Windows 7 Pro
    CPU
    i7-4500U 800MHz to 3.0GHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics Card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs +
    1T HDD for data
    Internet Speed
    500 Mb/s
    Browser
    Firefox
    Other Info
    TinyWall firewall
Megahertz07 said:
No problem, I can read French.
Windows a effectué des corrections sur le système de fichiers. So it did correct some problems.
The good news is that 0 Ko dans des secteurs défectueux.

What about the temperatures?
Click to expand...


Right now, CPU about 50-55°C and GPU around 30.


My Computer My Computer

At a glance

Windows 7 integrale x64 SP1Intel core i5 760 @2.8GHz 4 coeurs 1156LGA8GB Kingston DDR3 @666.51.MHzNvidia GeForce GTX 1650
Computer type
PC/Desktop
Computer Manufacturer/Model Number
custom build
OS
Windows 7 integrale x64 SP1
CPU
Intel core i5 760 @2.8GHz 4 coeurs 1156LGA
Motherboard
GA-H55-UD3H version du bios F10
Memory
8GB Kingston DDR3 @666.51.MHz
Graphics Card(s)
Nvidia GeForce GTX 1650
Hard Drives
SSD WDCWDS480G2G0A-00JH30 de 447.13 Go SATA III
Firmware: UG400400
Version du SATA: SATA Rev 2.6
Numéro de série: 20109F809207
Antivirus
Kaspersky Free
Browser
Mozilla Firefox
On post #1 you wrote that when playing games it freezes etc.
50º C is a high temperature for idle. When playing games it probably will get much hotter and then it shuts down to protect itself.

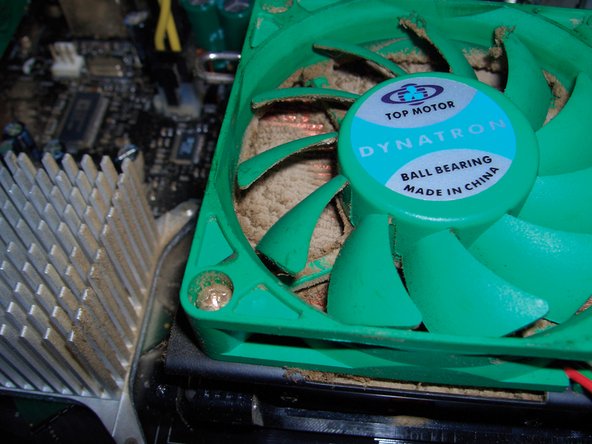

Open the case and have a look at the heat sink to see if it is clogged with dust.
aKO2m1XYnbxnGTXb.medium


My Computers My Computers

System One System Two

  • At a glance

    Windows 7 HP 64i5 6600K - 800MHz to 4200MHz4+4G GSkill DDR4 3000IG - Intel 530
    Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    custom build
    OS
    Windows 7 HP 64
    CPU
    i5 6600K - 800MHz to 4200MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500Mb/s
    Browser
    Firefox 64
    Other Info
    TinyWall firewall

  • At a glance

    Windows 7 Proi7-4500U 800MHz to 3.0GHz(4+4)G DDR3 1600IG intel 4400 + NVIDIA GeForce GT 745M
    Computer type
    Laptop
    System Manufacturer/Model Number
    Asus Q550LF
    OS
    Windows 7 Pro
    CPU
    i7-4500U 800MHz to 3.0GHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics Card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs +
    1T HDD for data
    Internet Speed
    500 Mb/s
    Browser
    Firefox
    Other Info
    TinyWall firewall
It is yeah, not as much as on the photo though


My Computer My Computer

At a glance

Windows 7 integrale x64 SP1Intel core i5 760 @2.8GHz 4 coeurs 1156LGA8GB Kingston DDR3 @666.51.MHzNvidia GeForce GTX 1650
Computer type
PC/Desktop
Computer Manufacturer/Model Number
custom build
OS
Windows 7 integrale x64 SP1
CPU
Intel core i5 760 @2.8GHz 4 coeurs 1156LGA
Motherboard
GA-H55-UD3H version du bios F10
Memory
8GB Kingston DDR3 @666.51.MHz
Graphics Card(s)
Nvidia GeForce GTX 1650
Hard Drives
SSD WDCWDS480G2G0A-00JH30 de 447.13 Go SATA III
Firmware: UG400400
Version du SATA: SATA Rev 2.6
Numéro de série: 20109F809207
Antivirus
Kaspersky Free
Browser
Mozilla Firefox
Don't take out the heat sink from the CPU.

Take the fan from the heat sink and clean all with a paintbrush and a vacuum cleaner.


My Computers My Computers

System One System Two

  • At a glance

    Windows 7 HP 64i5 6600K - 800MHz to 4200MHz4+4G GSkill DDR4 3000IG - Intel 530
    Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    custom build
    OS
    Windows 7 HP 64
    CPU
    i5 6600K - 800MHz to 4200MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500Mb/s
    Browser
    Firefox 64
    Other Info
    TinyWall firewall

  • At a glance

    Windows 7 Proi7-4500U 800MHz to 3.0GHz(4+4)G DDR3 1600IG intel 4400 + NVIDIA GeForce GT 745M
    Computer type
    Laptop
    System Manufacturer/Model Number
    Asus Q550LF
    OS
    Windows 7 Pro
    CPU
    i7-4500U 800MHz to 3.0GHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics Card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs +
    1T HDD for data
    Internet Speed
    500 Mb/s
    Browser
    Firefox
    Other Info
    TinyWall firewall
You must log in or register to reply here.

Similar threads

Display shuts off, lost signal, widows freezes, tower stays running.
2 3
Replies
43
Views
12K
ICIT2LOL
ICIT2LOL
Back
Top
