disk management wont allow me to extend my partition

tremaine

New member
Local time
12:59 PM
Messages
56

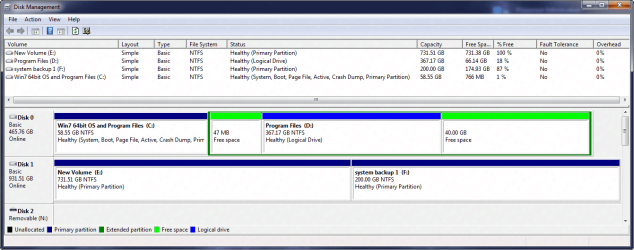

why wont disk management allow me to extend my C: partition ??? when i right click on the c: drive the extend volume is grayed out.


Attachments

  • disk management.png
    disk management.png
    36.6 KB · Views: 342

My Computer My Computer

At a glance

windows 7 64bitAMD phenom 9950 X4 BE overclocked from 2.6Ghz...OCZ XTC SLI DDR2 800MHz 2 Gig x 2ATI Radeon HD 4890 overclocked 20%
Computer Manufacturer/Model Number
Custom Build
OS
windows 7 64bit
CPU
AMD phenom 9950 X4 BE overclocked from 2.6Ghz to 3.1Ghz
Motherboard
Asus m3a78-em
Memory
OCZ XTC SLI DDR2 800MHz 2 Gig x 2
Graphics Card(s)
ATI Radeon HD 4890 overclocked 20%
Sound Card
n/a
Monitor(s) Displays
22" DCLCD
Screen Resolution
1680 x 1050
Hard Drives
500 gig Western Digital,1000 Gig Seagate, 500 Gig external Seagate
PSU
Ultra 650 W
Case
Antec 1200
Cooling
Cooler Master V8
Keyboard
Logitech Cordless EX110
Mouse
Logitech Optical Mouse
Internet Speed
10Mbs
Hello Tremaine,

That is because your partition is out of space. The next 47MB are part of an extended partition. Basically, it sees from the 47MB partition on to the end as one, larger partition.

Hope this helps,
~JK


My Computer My Computer

At a glance

Windows 7 Professional x64Intel i7 2600K OC'd @ 4620 MHz16GB GSkill Sniper 2133 Mhz (4x4GB)EVGA GeForce GTX 480 SuperClocked+
Computer Manufacturer/Model Number
Custom
OS
Windows 7 Professional x64
CPU
Intel i7 2600K OC'd @ 4620 MHz
Motherboard
Asus P8Z68-V Pro
Memory
16GB GSkill Sniper 2133 Mhz (4x4GB)
Graphics Card(s)
EVGA GeForce GTX 480 SuperClocked+
Sound Card
Realtek High Definition Audio
Monitor(s) Displays
2x Acer S273HLbmii 27"
Screen Resolution
2 x 1920x1080
Hard Drives
64GB Crucial M4 SSD

Storage: Hitachi 1TB 5400RPM, Samsung 1.5TB 5400RPM
PSU
Corsair HW Series 750w (modular)
Case
Cooler Master HAF 932 Advanced Blue Edition
Cooling
CM Hyper 212+ CPU cooler, 3x 230mm + 1x 140mm case fans
Keyboard
Logitech MK320 (wireless)
Mouse
Logitech MK320 (wireless)
Internet Speed
30 Mb/s : 2 Mb/s
Hello Tremaine,

That is because your partition is out of space. The next 47MB are part of an extended partition. Basically, it sees from the 47MB partition on to the end as one, larger partition.

Hope this helps,
~JK


hit the nail on the head. how did you manage to only have 1% free on c if all of your program files are on d? and the next question is why did you setup an extended partition?

i believe that you can remove the extended partition envelope from around the last three partitions with out messing up d.


My Computer My Computer

At a glance

windows
OS
windows

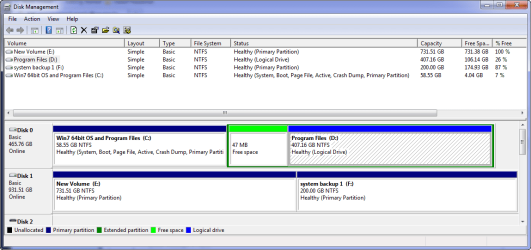

sorry the space on the c drive was from me downloading files when i took the screen shot there is actually alot more space free there.also ive had this issue for awhile now.i took space from the d drive and freed it up hoping that i could combine the two 47mb free space with the rest but that didnt work.Heres another screen of how my partitions actually look.Oh and i actually have my programs on C: drive.


Attachments

  • dm2.png
    24.7 KB · Views: 186

My Computer My Computer

At a glance

windows 7 64bitAMD phenom 9950 X4 BE overclocked from 2.6Ghz...OCZ XTC SLI DDR2 800MHz 2 Gig x 2ATI Radeon HD 4890 overclocked 20%
Computer Manufacturer/Model Number
Custom Build
OS
windows 7 64bit
CPU
AMD phenom 9950 X4 BE overclocked from 2.6Ghz to 3.1Ghz
Motherboard
Asus m3a78-em
Memory
OCZ XTC SLI DDR2 800MHz 2 Gig x 2
Graphics Card(s)
ATI Radeon HD 4890 overclocked 20%
Sound Card
n/a
Monitor(s) Displays
22" DCLCD
Screen Resolution
1680 x 1050
Hard Drives
500 gig Western Digital,1000 Gig Seagate, 500 Gig external Seagate
PSU
Ultra 650 W
Case
Antec 1200
Cooling
Cooler Master V8
Keyboard
Logitech Cordless EX110
Mouse
Logitech Optical Mouse
Internet Speed
10Mbs
and going to move everything from D: to E: and then try to reformat D:


My Computer My Computer

At a glance

windows 7 64bitAMD phenom 9950 X4 BE overclocked from 2.6Ghz...OCZ XTC SLI DDR2 800MHz 2 Gig x 2ATI Radeon HD 4890 overclocked 20%
Computer Manufacturer/Model Number
Custom Build
OS
windows 7 64bit
CPU
AMD phenom 9950 X4 BE overclocked from 2.6Ghz to 3.1Ghz
Motherboard
Asus m3a78-em
Memory
OCZ XTC SLI DDR2 800MHz 2 Gig x 2
Graphics Card(s)
ATI Radeon HD 4890 overclocked 20%
Sound Card
n/a
Monitor(s) Displays
22" DCLCD
Screen Resolution
1680 x 1050
Hard Drives
500 gig Western Digital,1000 Gig Seagate, 500 Gig external Seagate
PSU
Ultra 650 W
Case
Antec 1200
Cooling
Cooler Master V8
Keyboard
Logitech Cordless EX110
Mouse
Logitech Optical Mouse
Internet Speed
10Mbs

My Computers My Computers

  • At a glance

    Windows 11 Pro x64 [Latest Release and Releas...Ryzen 9 5950X, 3.8 - 5.2 MHz64GB [2 x 32GB] DDR4 3200MHz4GB NVIDIA GEFORCE GTX 1650 Ti
    Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    ChillBlast - Custom to my design
    OS
    Windows 11 Pro x64 [Latest Release and Release Preview]
    CPU
    Ryzen 9 5950X, 3.8 - 5.2 MHz
    Motherboard
    Asus Prime X570-Pro
    Memory
    64GB [2 x 32GB] DDR4 3200MHz
    Graphics Card(s)
    4GB NVIDIA GEFORCE GTX 1650 Ti
    Sound Card
    On-board SPDIF to 5.1 System + HDMI [5.1 system]
    Monitor(s) Displays
    32" UHD 32 Bit HDR Monitor + 43" UHD 4K 32Bit HDR TV
    Screen Resolution
    2 x 3840 x 2160 @60Hz
    Hard Drives
    1TB M2 SSD OS, 500GB Fast Access SSD, 2 x 8TB Data + Various Externals from 1TB to 4TB, 10TB NAS
    PSU
    NZXT C750 80 PLUS Gold 750W Modular PSU
    Case
    Workstation Case [Matt Black]
    Cooling
    NZXT Kraken X63 280mm CPU Cooler +2x Quiet Case fans
    Keyboard
    Logitech Wireless MX Keys & K400 + others
    Mouse
    Logitech Wireless MX Master 3S
    Internet Speed
    920 MB Down 50 MB Up
    Antivirus
    BitDefender Total Security Pro
    Browser
    Chrome (always run latest Non-Beta)
    Other Info
    Also run ...
    Laptop - Quad 8GB - Windows 10 Pro x64
    Nexus 7 Android tablet x2
    Samsung 10.2" tablet
    Blackview TAB 8 4G Android Tablet c/w Keyboard
    Wacom Intuos Pro Medium Pen Pad
    Wacom Intuos Pro Small Pen Pad
    Wacom Expresskeys Remote
    Loopdeck+ Graphics Controller
    Shuttle Pro v2 Control
  • At a glance

    Windows 11 Pro x64 Latest RPIntel I7 10750H 5.0GHz32GB [2x16GB] DDR4 2933 MHznVidia GTX1650Ti 4 GB GDDR6
    Computer type
    Laptop
    System Manufacturer/Model Number
    Dell XPS 17 10750H
    OS
    Windows 11 Pro x64 Latest RP
    CPU
    Intel I7 10750H 5.0GHz
    Motherboard
    Dell XPS
    Memory
    32GB [2x16GB] DDR4 2933 MHz
    Graphics Card(s)
    nVidia GTX1650Ti 4 GB GDDR6
    Sound Card
    Stock [Realtek] 4 Speaker
    Monitor(s) Displays
    17" IPS UHD+ Infinity Edge Touchscreen
    Screen Resolution
    3840 x 2400
    Hard Drives
    2TB M2 NVMe, 4TB External + various 500GB & 1TB External NVMe (also have access to spinner HDD from
    PSU
    Stock
    Case
    Stock XPS Aluminium & Carbon Fibre
    Cooling
    Stock - Active Fan Control
    Keyboard
    Backlit + Various Logitech
    Mouse
    Stock Track Pad + Logitech MX Trackball
    Internet Speed
    72 MB Down 18MB Up
    Browser
    Chrome
    Other Info
    Also run ...
    Laptop - Quad 8GB - Windows 10 Pro x64
    Nexus 7 Android tablet x2
    10.2" tablet
    Sony Z3 Android Smartphone
    Wacom Intuos Pro Medium Pen Pad
    Wacom Intuos Pro Small Pen Pad
    Wacom Expresskeys Remote
    Loopdeck+ Graphics Controller
    Shuttle Pro v2 Control Pad
    10TB NAS
I had the same setup on my system and used Partition Wizard and it worked fine.

I did get an error I believe about the mbr but it was easy to fix, but I don't remember what I ran to correct it. I have CRS (Can't Remember Stuff) :p

I did do an Image before hand just in case.

Jim :cool:
