Trying to get to my webstar's modem's webpage. 192.168.1.1 brings me to my linksys router.

Not sure what ip I need to enter to get the the modem? Any ideas


My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate 64bit
CPU
Intel Core i7 920
Motherboard
GA-EX58-UD3R Rev 1 F11 Bios
Memory
8 Gigs DDR3 RAM @ 1600mhz per stic
Graphics Card(s)
GTX 285
Sound Card
Realtek HD Audio
Monitor(s) Displays
Dell 19inch 16:10
Screen Resolution
1440x900
Hard Drives
Western Digital x2 500gig 7200rpm in Raid 0
PSU
OCZ Modular Extreme 700W PSU
Case
Antec 1200
Internet Speed
15mbps down 2 up
Other Info
Coolermaster V8 Cpu Cooler

My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Lenovo IdeaCenter 450
OS
Windows 10 Pro X64
CPU
Intel Quad Core i7-4770 @ 3.4Ghz
Memory
16.0GB PC3-12800 DDR3 SDRAM 1600 MHz
Graphics Card(s)
Intel Integrated HD Graphics
Sound Card
Realtek HD Audio
Monitor(s) Displays
HP 22" LCD
Screen Resolution
1680 x 1050
Hard Drives
250GB Samsung EVO SATA-3 SSD
2TB Seagate ST2000DM001 SATA-2
1.5TB Seagate ST3150041AS SATA
Keyboard
Dell USB
Mouse
Lenovo USB
Internet Speed
Cable via Road Runner 3MB Upload, 30MB Download
Antivirus
Windows Defender, MBAM Pro, MBAE
Browser
Seamonkey
Other Info
UEFI/GPT
PLDS DVD-RW DH16AERSH
Try 192.168.100.1.


My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Me
OS
Win 7 Ultimate x64
CPU
FX-8350 @ 4.6 GHz so far
Motherboard
Asus M5A97 EVO
Memory
ADATA XPG V1 Series Black 8GB DDR3 1600
Graphics Card(s)
Sapphire R9 270x Dual-X
Sound Card
Xonar DGX w/ Corsair Vengence 1300
Monitor(s) Displays
Acer S232HL Abid
Screen Resolution
1920x1080
Hard Drives
120 GB OCZ Vertex 3
500 GB Seagate 7200.12
PSU
Antec Earthwatts 650W Green
Case
Antec Three Hundred
Cooling
Cooler Master 212 EVO
Keyboard
Logitech G510
Mouse
Logitech G500s
Internet Speed
35000/3000

My Computer

Computer Manufacturer/Model Number
N/A - Custom Rig
OS
Win 7 Pro x64
CPU
AMD Phenom II X6 1090T (3200 Mhz)
Motherboard
ASUS M4N98TD EVO
Memory
Corsair DOMINATOR 8 GB PC310666 (1333Mhz) CAS: 7-7-7-20
Graphics Card(s)
2x NVIDIA GeForce 9800 GTX/9800 GTX+ (in SLI Mode)
Sound Card
N/A; Onboard VIA VT1708S chipset is good enuff
Monitor(s) Displays
23" LG W2361V (2ms Response Time) / 20" ASUS VE205N (5ms)
Screen Resolution
1920x1080 & 1600x900 respectively
Hard Drives
3x crappy ~150gb 7200rpm drives in fakeraid 5
PSU
Ultra X3 1000-Watt ATX/Modular/SLI&SATA Ready PSU (ULT40311)
Case
SILVERSTONE TEMJIN TJ06S-W (Silver) ATX Full Tower Case
Cooling
Nothing special; no overclocking. Stock heatsink & case fans
Keyboard
Saitek Eclipse II [broken due to numerous RaGe qUiTs] >:(
Mouse
some iHome laser (not optical) mouse
Internet Speed
I can only get ~1MBps sustained
Other Info
A+/N+/Security+ Certified. I break a lot of computer equipment because i get FURIOUSLY ANGRY! The next time some moron gloats about his SSD, ask him if it's SLC or MLC. Not only will he not know, it WILL be MLC because that kid at BestBuy took him to the CLEANERS!! If you don't know the response time on your primary monitor, you got owned. If you do and it's 5ms, you owned yourself.

My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate 64bit
CPU
Intel Core i7 920
Motherboard
GA-EX58-UD3R Rev 1 F11 Bios
Memory
8 Gigs DDR3 RAM @ 1600mhz per stic
Graphics Card(s)
GTX 285
Sound Card
Realtek HD Audio
Monitor(s) Displays
Dell 19inch 16:10
Screen Resolution
1440x900
Hard Drives
Western Digital x2 500gig 7200rpm in Raid 0
PSU
OCZ Modular Extreme 700W PSU
Case
Antec 1200
Internet Speed
15mbps down 2 up
Other Info
Coolermaster V8 Cpu Cooler
interesting... what's your subnet mask? is it 255.255.255.0 or 255.255.0.0? i assume you can't ping 192.168.100.1 either then.


My Computer

Computer Manufacturer/Model Number
N/A - Custom Rig
OS
Win 7 Pro x64
CPU
AMD Phenom II X6 1090T (3200 Mhz)
Motherboard
ASUS M4N98TD EVO
Memory
Corsair DOMINATOR 8 GB PC310666 (1333Mhz) CAS: 7-7-7-20
Graphics Card(s)
2x NVIDIA GeForce 9800 GTX/9800 GTX+ (in SLI Mode)
Sound Card
N/A; Onboard VIA VT1708S chipset is good enuff
Monitor(s) Displays
23" LG W2361V (2ms Response Time) / 20" ASUS VE205N (5ms)
Screen Resolution
1920x1080 & 1600x900 respectively
Hard Drives
3x crappy ~150gb 7200rpm drives in fakeraid 5
PSU
Ultra X3 1000-Watt ATX/Modular/SLI&SATA Ready PSU (ULT40311)
Case
SILVERSTONE TEMJIN TJ06S-W (Silver) ATX Full Tower Case
Cooling
Nothing special; no overclocking. Stock heatsink & case fans
Keyboard
Saitek Eclipse II [broken due to numerous RaGe qUiTs] >:(
Mouse
some iHome laser (not optical) mouse
Internet Speed
I can only get ~1MBps sustained
Other Info
A+/N+/Security+ Certified. I break a lot of computer equipment because i get FURIOUSLY ANGRY! The next time some moron gloats about his SSD, ask him if it's SLC or MLC. Not only will he not know, it WILL be MLC because that kid at BestBuy took him to the CLEANERS!! If you don't know the response time on your primary monitor, you got owned. If you do and it's 5ms, you owned yourself.

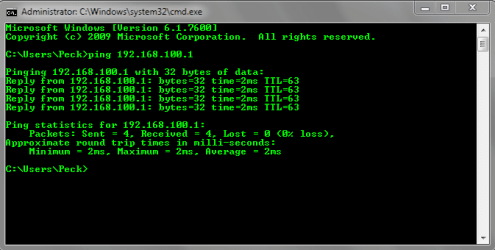

Just pinged it no problem, subnet mask is 255.255.255.0

Somehow there blocking me from accessing my page... : ( I want in!


Attachments

  • Capture.PNG
    9.4 KB · Views: 65

My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate 64bit
CPU
Intel Core i7 920
Motherboard
GA-EX58-UD3R Rev 1 F11 Bios
Memory
8 Gigs DDR3 RAM @ 1600mhz per stic
Graphics Card(s)
GTX 285
Sound Card
Realtek HD Audio
Monitor(s) Displays
Dell 19inch 16:10
Screen Resolution
1440x900
Hard Drives
Western Digital x2 500gig 7200rpm in Raid 0
PSU
OCZ Modular Extreme 700W PSU
Case
Antec 1200
Internet Speed
15mbps down 2 up
Other Info
Coolermaster V8 Cpu Cooler
(they're -> contraction)

what browser are you using to get to the page? what exactly comes up on the screen when you navigate to that URL? is there any (http)source(code) to the page? any SS of what it looks like when you navigate there?


My Computer

Computer Manufacturer/Model Number
N/A - Custom Rig
OS
Win 7 Pro x64
CPU
AMD Phenom II X6 1090T (3200 Mhz)
Motherboard
ASUS M4N98TD EVO
Memory
Corsair DOMINATOR 8 GB PC310666 (1333Mhz) CAS: 7-7-7-20
Graphics Card(s)
2x NVIDIA GeForce 9800 GTX/9800 GTX+ (in SLI Mode)
Sound Card
N/A; Onboard VIA VT1708S chipset is good enuff
Monitor(s) Displays
23" LG W2361V (2ms Response Time) / 20" ASUS VE205N (5ms)
Screen Resolution
1920x1080 & 1600x900 respectively
Hard Drives
3x crappy ~150gb 7200rpm drives in fakeraid 5
PSU
Ultra X3 1000-Watt ATX/Modular/SLI&SATA Ready PSU (ULT40311)
Case
SILVERSTONE TEMJIN TJ06S-W (Silver) ATX Full Tower Case
Cooling
Nothing special; no overclocking. Stock heatsink & case fans
Keyboard
Saitek Eclipse II [broken due to numerous RaGe qUiTs] >:(
Mouse
some iHome laser (not optical) mouse
Internet Speed
I can only get ~1MBps sustained
Other Info
A+/N+/Security+ Certified. I break a lot of computer equipment because i get FURIOUSLY ANGRY! The next time some moron gloats about his SSD, ask him if it's SLC or MLC. Not only will he not know, it WILL be MLC because that kid at BestBuy took him to the CLEANERS!! If you don't know the response time on your primary monitor, you got owned. If you do and it's 5ms, you owned yourself.

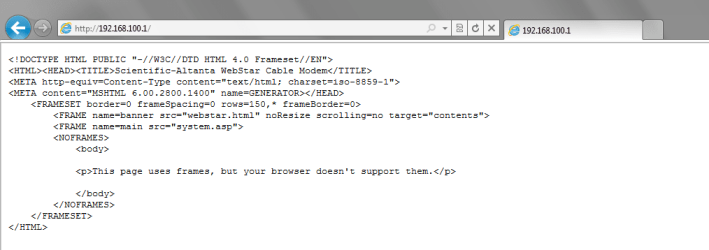

I was using chrome just tried IE9 and I got this....

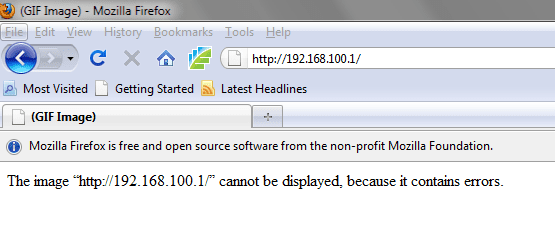

and Firefox


Attachments

  • Capture.PNG
    14.9 KB · Views: 59
  • 1.PNG
    11.2 KB · Views: 24

My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate 64bit
CPU
Intel Core i7 920
Motherboard
GA-EX58-UD3R Rev 1 F11 Bios
Memory
8 Gigs DDR3 RAM @ 1600mhz per stic
Graphics Card(s)
GTX 285
Sound Card
Realtek HD Audio
Monitor(s) Displays
Dell 19inch 16:10
Screen Resolution
1440x900
Hard Drives
Western Digital x2 500gig 7200rpm in Raid 0
PSU
OCZ Modular Extreme 700W PSU
Case
Antec 1200
Internet Speed
15mbps down 2 up
Other Info
Coolermaster V8 Cpu Cooler
based on that, youre definitely getting to the modem...

try:

http://192.168.100.1/webstar.html
http://192.168.100.1/system.asp

usually, the only reason your browser would try to interpret that page as an image is if the modem is telling your browser that the page it's sending you is a different content type (gif). you'd need to look at the HTTP response header to be sure though.

edit -- i see that you said you tried a bunch of stuff already... if they're ALL trying to open it as images, maybe they ARE blocking you from it.

if you want to get hardcore about this, create a port forward on your router pointing port 80 TCP to 192.168.100.1 TCP and give me your ISP address... ill see if i can get to your modem.

for instance, you can get to mine:

http://70.95.153.70:1234


My Computer

Computer Manufacturer/Model Number
N/A - Custom Rig
OS
Win 7 Pro x64
CPU
AMD Phenom II X6 1090T (3200 Mhz)
Motherboard
ASUS M4N98TD EVO
Memory
Corsair DOMINATOR 8 GB PC310666 (1333Mhz) CAS: 7-7-7-20
Graphics Card(s)
2x NVIDIA GeForce 9800 GTX/9800 GTX+ (in SLI Mode)
Sound Card
N/A; Onboard VIA VT1708S chipset is good enuff
Monitor(s) Displays
23" LG W2361V (2ms Response Time) / 20" ASUS VE205N (5ms)
Screen Resolution
1920x1080 & 1600x900 respectively
Hard Drives
3x crappy ~150gb 7200rpm drives in fakeraid 5
PSU
Ultra X3 1000-Watt ATX/Modular/SLI&SATA Ready PSU (ULT40311)
Case
SILVERSTONE TEMJIN TJ06S-W (Silver) ATX Full Tower Case
Cooling
Nothing special; no overclocking. Stock heatsink & case fans
Keyboard
Saitek Eclipse II [broken due to numerous RaGe qUiTs] >:(
Mouse
some iHome laser (not optical) mouse
Internet Speed
I can only get ~1MBps sustained
Other Info
A+/N+/Security+ Certified. I break a lot of computer equipment because i get FURIOUSLY ANGRY! The next time some moron gloats about his SSD, ask him if it's SLC or MLC. Not only will he not know, it WILL be MLC because that kid at BestBuy took him to the CLEANERS!! If you don't know the response time on your primary monitor, you got owned. If you do and it's 5ms, you owned yourself.

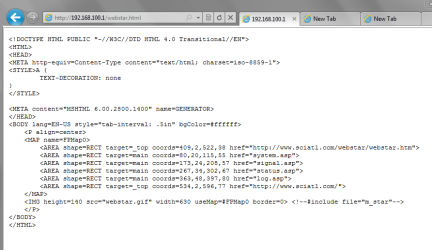

Thanks TooCrooked, seems I am getting to the router now buts its all just HTML rubbish. Shoudent there be a baisc GUI?

This one was the /system html link you provided.

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<HTML><HEAD>
<META http-equiv=Refresh content="30; url=system.asp">
<META http-equiv=Content-Type content="text/html; charset=iso-8859-1">
<META content="MSHTML 6.00.2800.1400" name=GENERATOR>
<SCRIPT language=javascript>
<!-- hide me
function setAPMode(mode)
{
//window.document.log.SnmpClearEventLog.value = 1;
thebox = window.document.system;
thebox.SAAccessProtectionMode.value = mode;
if( mode == 3 )
thebox.SAAutoActivationMinutes.disabled = false;
else
thebox.SAAutoActivationMinutes.disabled = true;
}

// show me -->

</SCRIPT>

</HEAD>
<BODY bgColor=#ffffff leftMargin=0 topMargin=0 marginheight="0" marginwidth="0" target="_top" >
<P style="MARGIN-LEFT: 20px" align=left><FONT face=Arial color=#000000
size=3><B>About Your Modem</B></FONT><BR><FONT face=Arial color=#000000
size=2>This page provides the basic information about your cable modem.</FONT>

<CENTER>

<TABLE width=530 border=1>
<TBODY>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Name</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> WebSTAR DPC2100</FONT></TD></TR>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Modem Serial Number</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> 200010274</FONT></TD></TR>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Cable Modem MAC Address</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> 00:0f:21:c2:c0:7d</FONT></TD></TR>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Hardware Version</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> 2.0</FONT></TD></TR>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Software Version</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> v2.0.2r1242</FONT></TD></TR>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Receive Power Level</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> -7.4 dBmV</FONT></TD></TR>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Transmit Power Level</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> 39.2 dBmV</FONT></TD></TR>
<TR>
<TD width=255 bgColor=#99ff99>
<P style="MARGIN-LEFT: 5px" align=left><FONT face=Arial color=#000000
size=2><B>Cable Modem Status</B></FONT></P></TD>
<TD width=275><FONT face=Arial size=2> Operational</FONT></TD></TR>
</TBODY>
</TABLE>
</CENTER>
<FORM name=system action=/goform/system method=post>

<P></P>

<Input type=hidden name=SAAccessProtectionMode value=01 >
<!-- 00 -->
<P align=left><FONT face=Arial color=#000000 size=1>WebSTAR is a trademark of
Scientific-Atlanta. Scientific-Atlanta and the Scientific-Atlanta logo are
registered trademarks of Scientific-Atlanta, Inc. 2004 Scientific-Atlanta, Inc.
All rights reserved.</FONT></P>
</FORM>
</BODY></HTML>
Click to expand...


Attachments

  • Capture.PNG
    20.8 KB · Views: 50

My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate 64bit
CPU
Intel Core i7 920
Motherboard
GA-EX58-UD3R Rev 1 F11 Bios
Memory
8 Gigs DDR3 RAM @ 1600mhz per stic
Graphics Card(s)
GTX 285
Sound Card
Realtek HD Audio
Monitor(s) Displays
Dell 19inch 16:10
Screen Resolution
1440x900
Hard Drives
Western Digital x2 500gig 7200rpm in Raid 0
PSU
OCZ Modular Extreme 700W PSU
Case
Antec 1200
Internet Speed
15mbps down 2 up
Other Info
Coolermaster V8 Cpu Cooler
that's very strange. the only time i've seen a web server serve raw HTML is because the web server doesn't know how to tell the client to view the page as HTML.

but if ALL your browsers are doing it, i can't even BEGIN to wonder what the problem is. it would obviously be an issue with your system. perhaps a firewall is sanitizing the request somehow...

try to get to it by going into safe mode w/ networking. if the page shows up as expected, something in normal mode is messing up the web page...


My Computer

Computer Manufacturer/Model Number
N/A - Custom Rig
OS
Win 7 Pro x64
CPU
AMD Phenom II X6 1090T (3200 Mhz)
Motherboard
ASUS M4N98TD EVO
Memory
Corsair DOMINATOR 8 GB PC310666 (1333Mhz) CAS: 7-7-7-20
Graphics Card(s)
2x NVIDIA GeForce 9800 GTX/9800 GTX+ (in SLI Mode)
Sound Card
N/A; Onboard VIA VT1708S chipset is good enuff
Monitor(s) Displays
23" LG W2361V (2ms Response Time) / 20" ASUS VE205N (5ms)
Screen Resolution
1920x1080 & 1600x900 respectively
Hard Drives
3x crappy ~150gb 7200rpm drives in fakeraid 5
PSU
Ultra X3 1000-Watt ATX/Modular/SLI&SATA Ready PSU (ULT40311)
Case
SILVERSTONE TEMJIN TJ06S-W (Silver) ATX Full Tower Case
Cooling
Nothing special; no overclocking. Stock heatsink & case fans
Keyboard
Saitek Eclipse II [broken due to numerous RaGe qUiTs] >:(
Mouse
some iHome laser (not optical) mouse
Internet Speed
I can only get ~1MBps sustained
Other Info
A+/N+/Security+ Certified. I break a lot of computer equipment because i get FURIOUSLY ANGRY! The next time some moron gloats about his SSD, ask him if it's SLC or MLC. Not only will he not know, it WILL be MLC because that kid at BestBuy took him to the CLEANERS!! If you don't know the response time on your primary monitor, you got owned. If you do and it's 5ms, you owned yourself.

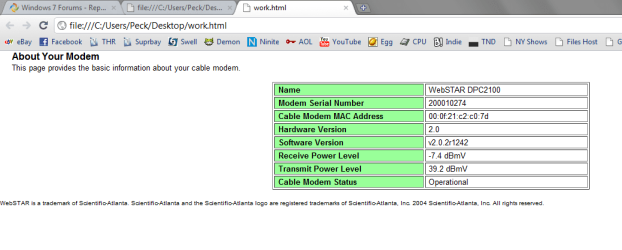

Well I just took all the html saved in notepad as a .html link and presto! TADA! This will do for know! Thanks for all the help!

Now as far as my signal strengths how does it look?


Attachments

  • Capture.PNG
    18.4 KB · Views: 92

My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate 64bit
CPU
Intel Core i7 920
Motherboard
GA-EX58-UD3R Rev 1 F11 Bios
Memory
8 Gigs DDR3 RAM @ 1600mhz per stic
Graphics Card(s)
GTX 285
Sound Card
Realtek HD Audio
Monitor(s) Displays
Dell 19inch 16:10
Screen Resolution
1440x900
Hard Drives
Western Digital x2 500gig 7200rpm in Raid 0
PSU
OCZ Modular Extreme 700W PSU
Case
Antec 1200
Internet Speed
15mbps down 2 up
Other Info
Coolermaster V8 Cpu Cooler
my values read:

NameWebSTAR DPC2100R2
​
Hardware Version2.1
Software Versionv2.0.2r1256-060303​
Receive Power Level-12.6 dBmV​
Transmit Power Level51.0 dBmV​
Cable Modem StatusOperational

other than that, i know NOTHING about the signal that the internet rides over. your ISP can tell you what the normal levels are.
​


My Computer

Computer Manufacturer/Model Number
N/A - Custom Rig
OS
Win 7 Pro x64
CPU
AMD Phenom II X6 1090T (3200 Mhz)
Motherboard
ASUS M4N98TD EVO
Memory
Corsair DOMINATOR 8 GB PC310666 (1333Mhz) CAS: 7-7-7-20
Graphics Card(s)
2x NVIDIA GeForce 9800 GTX/9800 GTX+ (in SLI Mode)
Sound Card
N/A; Onboard VIA VT1708S chipset is good enuff
Monitor(s) Displays
23" LG W2361V (2ms Response Time) / 20" ASUS VE205N (5ms)
Screen Resolution
1920x1080 & 1600x900 respectively
Hard Drives
3x crappy ~150gb 7200rpm drives in fakeraid 5
PSU
Ultra X3 1000-Watt ATX/Modular/SLI&SATA Ready PSU (ULT40311)
Case
SILVERSTONE TEMJIN TJ06S-W (Silver) ATX Full Tower Case
Cooling
Nothing special; no overclocking. Stock heatsink & case fans
Keyboard
Saitek Eclipse II [broken due to numerous RaGe qUiTs] >:(
Mouse
some iHome laser (not optical) mouse
Internet Speed
I can only get ~1MBps sustained
Other Info
A+/N+/Security+ Certified. I break a lot of computer equipment because i get FURIOUSLY ANGRY! The next time some moron gloats about his SSD, ask him if it's SLC or MLC. Not only will he not know, it WILL be MLC because that kid at BestBuy took him to the CLEANERS!! If you don't know the response time on your primary monitor, you got owned. If you do and it's 5ms, you owned yourself.
Awesome, thanks for all the help TooCrooked!

Marked thread as SOLVED...... : )


My Computer

Computer Manufacturer/Model Number
Custom
OS
Windows 7 Ultimate 64bit
CPU
Intel Core i7 920
Motherboard
GA-EX58-UD3R Rev 1 F11 Bios
Memory
8 Gigs DDR3 RAM @ 1600mhz per stic
Graphics Card(s)
GTX 285
Sound Card
Realtek HD Audio
Monitor(s) Displays
Dell 19inch 16:10
Screen Resolution
1440x900
Hard Drives
Western Digital x2 500gig 7200rpm in Raid 0
PSU
OCZ Modular Extreme 700W PSU
Case
Antec 1200
Internet Speed
15mbps down 2 up
Other Info
Coolermaster V8 Cpu Cooler
You must log in or register to reply here.
Back
Top
