Network - Add or Remove from Navigation Pane

How to Add or Remove "Network" from the Windows 7 Navigation Pane​

   Information

This will show you how to add or remove Network in the Windows Explorer Navigation Pane in Windows 7.

   Warning

• You can only do this while logged into an administrator account.
• This will affect all user account's on the computer.
• This will also add or remove the default Network desktop icon as well.

EXAMPLE: Network in Navigation Pane

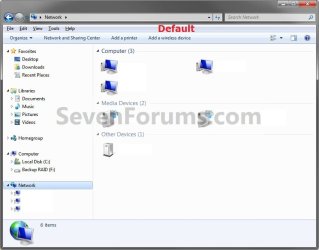

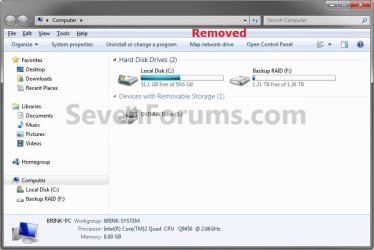

NOTE: This is the Network group added (default) (left screenshot below) and removed (right screenshot below) from the Navigation Pane.






Here's How:
1. Open the Start Menu and type regedit.exe in the search line, then press enter.

2. If prompted by UAC, then click on Yes.

3. In Regedit, go to the location below: (See screenshot below step 4)

HKEY_CLASSES_ROOT\CLSID\{F02C1A0D-BE21-4350-88B0-7367FC96EF3C}\ShellFolder

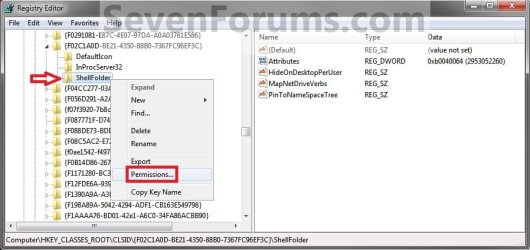

4. In the left pane of regedit, right click on the ShellFolder key and click on Permissions. (See screenshot below)

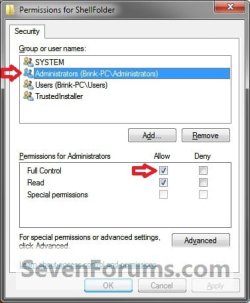

5. At the top, select the Administrators group. At the bottom, check the Allow box to the right of Full Control and click on OK. (See screenshot below)

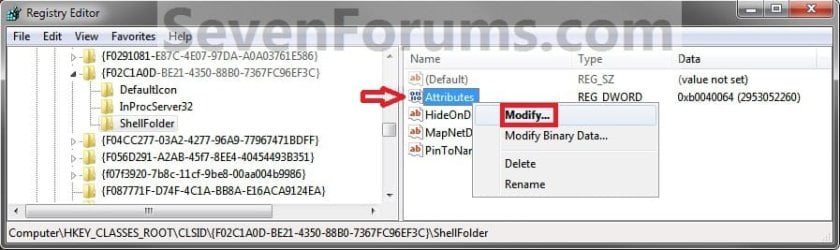

6. In the right pane of regedit, right click on Attributes and click on Modify. (See screenshot below)

7. To Add Network to the Navigation Pane
NOTE: This is the default setting.

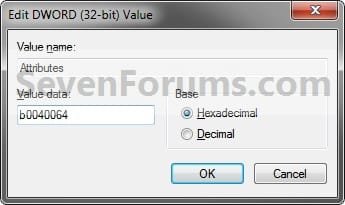

A) Type in b0040064 and click on OK. (see screenshot below)

B) Go to step 9.
8. To Remove Network from the Navigation Pane

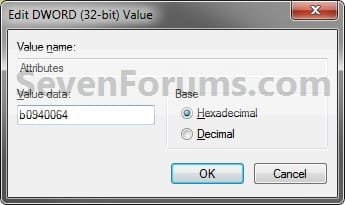

A) Type in b0940064 and click on OK. (see screenshot below)

9. If you have 64-bit Windows 7 Installed

   Note

CREDIT TO: Kookster for this addition.

To also add or remove Network from the "Open" and "Save as" type windows as well in 64-bit Windows 7, you will also need to do this step.

If you have a 32-bit Windows 7 installed, then skip this step since doing steps 1 to 7/8 will add or remove Network from the "Open" and "Save as" type windows as well.

A) In Regedit, go to the location below:

HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Classes\CLSID\{F02C1A0D-BE21-4350-88B0-7367FC96EF3C}\ShellFolder

B) Repeat steps 4 to 7/8 above.
10. Close regedit.

11. Restart the computer to fully apply.
That's it,
Shawn

Related Tutorials

---

• How to Add or Remove the "Libraries" Folder from the Windows 7 Navigation Pane
• How to Add or Remove "Favorites" from the Windows 7 Navigation Pane
• How to Add or Remove "Computer" from the Windows 7 Navigation Pane
• How to Add or Remove "Homegroup" from the Windows 7 Navigation Pane
• How to Add or Remove "Control Panel" from the Windows 7 Navigation Pane
• How to Add or Remove your "User Folder" from the Windows 7 Navigation Pane
• How to Add or Remove the "Recycle Bin" from the Windows 7 Navigation Pane
• How to Show or Not Show All Folders in the Windows 7 Navigation Pane
• How to Turn On or Off Expand to Current Folder in Windows 7 Navigation Pane
• How to Create a Network Folder Shortcut in Windows 7
• How to Create a "Network (WORKGROUP)" Folder Shortcut in Windows 7
• How to Turn the Navigation Pane On or Off in Windows 7
• How to Rename "Network" in the Windows 7 Explorer Navigation Pane



[claytoncarney]

Excellent, thanks for the tip! Is there a way to remove Control Panel from the Navigation Pane? There seems to be a tutorial for everything but that...



[Brink]

Hello Clayton,

I'll get on that tonight for you, but for now, unchecking the Show all folders option in the Navigation Pane will remove it. I'll post back with a link for it when done.



[Brink]

Well, it didn't take as long as I thought for me to find the correct CLSID key for it. Here it is.

http://www.sevenforums.com/tutorials/47341-control-panel-add-remove-navigation-pane.html#post445128



[sanchea]

Shawn,

Hi this works great. But how do I put this registry code on a script so I can send it over the network to all my windows 7 machines? Any ideas?



[Brink]

Hello Sanchea, and welcome to Seven Forums.

That's something I'll have to look at to see if there may be a way. I'll post back if I come up with a way to.



[CrimsonTide15X]

Remove Network and Libraries from "Open" and "Save to" type windows.

remove Network from the "Open" and "Save as" type windows as well in 64-bit Windows 7,

I am unable to find the value F02C1A0Detc under the CLSID folder in the regitry string below.


HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Classes\CLSID\{F02C1A0D-BE21-4350-88B0-7367FC96EF3C}\ShellFolder

Likewise, I am also unable to find the { 031E4825etc} string value below from removing the Libraries icon from the "Open" and "Save to" type windows as well. Any help is greatly appreciated!


9. If you have 64-bit Windows 7 Installed

Note
To also add or remove Libraries from the "Open" and "Save as" type windows as well in 64-bit Windows 7, you will also need to do this step.

If you have a 32-bit Windows 7 installed, then skip this step since doing steps 1 to 7/8 will add or remove Libraries from the "Open" and "Save as" type windows as well.

A) In Regedit, go to the location below:

Code:
HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Classes\CLSID\{031E4825-7B94-4dc3-B131-E946B44C8DD5}\S



[Brink]

Hello CrimsonTide, and welcome to Seven Forums.

Please post back with screenshots of your registry showing where these locations should be at to see if it may help ID what the issue may be.

http://www.sevenforums.com/tutorials/9733-screenshots-files-upload-post-seven-forums.html

Step 9 in your post is not for this tutorial though. It's for Libraries instead of Network.



[CrimsonTide15X]

ReRemove Network and Libraries from "Open" and "Save to" type windows.

Hello CrimsonTide, and welcome to Seven Forums.

Please post back with screenshots of your registry showing where these locations should be at to see if it may help ID what the issue may be.

Screenshots and Files - Upload and Post in Seven Forums

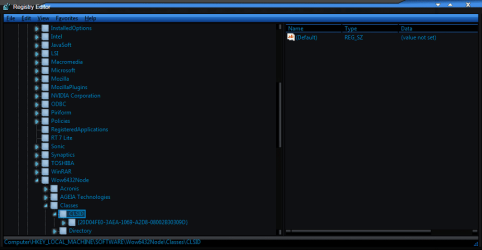

Sorry, thought I remembered to to include them. Here is the registry for Network location.



[Brink]

Wow, you have a very large portion of your registry missing at that location.

This is on a 64-bit Windows 7, and not a 32-bit?
http://www.sevenforums.com/tutorials/515-system-type-32-bit-x86-64-bit-x64.html

Is it like that in the HKEY_CLASSES_ROOT\CLSID location as well?

Did you run some sort of registry cleaning program or something that may have deleted them?
