How to Set Time Limit for Active Remote Desktop Sessions
Information
This allows you to specify the maximum amount of time that a Remote Desktop Services session can be active before it is automatically disconnected.
If a time limit is set, the user receives a warning two minutes before the Remote Desktop Services session disconnects, which allows the user to save open files and close programs.
If you have a console session, active session time limits do not apply.
You must be logged in as an administrator to be able to do this tutorial.
If a time limit is set, the user receives a warning two minutes before the Remote Desktop Services session disconnects, which allows the user to save open files and close programs.
If you have a console session, active session time limits do not apply.
You must be logged in as an administrator to be able to do this tutorial.
Warning
While all editions of Vista, Windows 7, and Windows 8 can be a remote desktop client...
- Only the Vista Business, Ultimate, and Enterprise editions can host a remote desktop connection.
- Only the Windows 7 Professional, Ultimate, and Enterprise editions can host a remote desktop connection.
- Only the Windows 8 Pro and Enterprise editions can host a remote desktop connection.
OPTION ONE
Through the Local Group Policy Editor

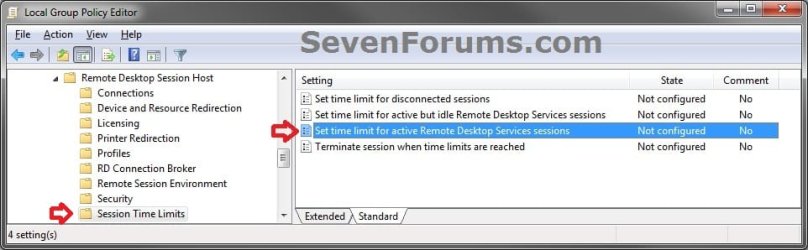

2. In the left pane, click on to expand User Configuration, Administrative Templates, Windows Components, Remote Desktop Services, Remote Desktop Session Host, and Session Time Limits. (see screenshot below)
3. In the right pane, right click on Set time limit for active Remote Desktop Services sessions and click on Edit. (see screenshot above)
4. To Remove Time Limit for Active Remote Desktop Services Sessions A) Select (dot) either Not Configured or Disabled. (see screenshot below step 6)
NOTE: Not Configured is the default setting.
B) Go to step 6.
5. To Set Time Limit for Active Remote Desktop Services Sessions A) Select (dot) Enabled. (see screenshot below step 6)
B) Under Options, click on the Active session limit drop down box and select an amount of time you would like to set as the time limit. (see screenshot below step 6)
6. Click on OK. (see screenshot below)
7. Close the Local Group Policy Editor window.
OPTION TWO
Manually in Registry Editor
2. If prompted by UAC, then click on Yes.

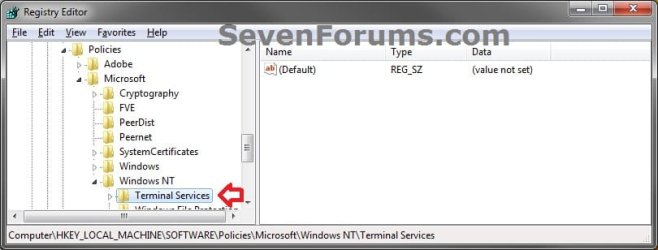

3. In regedit, navigate to the location below: (see screenshot below)
Code:
HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services
4. To Set Time Limit for Active Remote Desktop Services Sessions A) In the right pane of Terminal Services, right click on a empty space, click on New and DWORD (32-bit) Value, type MaxConnectionTime and press Enter. (see screenshot below)
B) In the right pane, right click MaxConnectionTime and click on Modify. (see screenshot above)

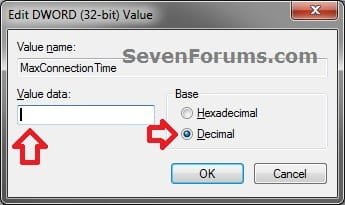

C) Select (dot) Decimal, then type in the registry Value data in the table below for the amount of time you want to set as the time limit and click on OK. (see screenshot below)
Never| 0 (number zero)
1 minute| 60000
5 minutes| 300000
10 minutes| 600000
15 minutes| 900000
30 minutes| 1800000
1 hour| 3600000
2 hours| 7200000
3 hours| 10800000
6 hours| 21600000
8 hours| 28000000
12 hours| 43200000
16 hours| 57600000
18 hours| 64800000
1 day| 86400000
2 days| 172800000
3 days| 259200000
4 days| 345600000
5 days| 432000000
5. To Remove Time Limit for Active Remote Desktop Services Sessions A) In the right pane, right click MaxConnectionTime and click on Delete. (see screenshot below step 4A)

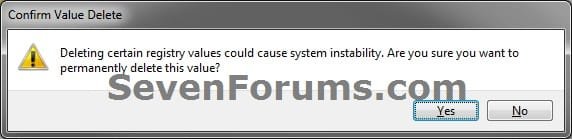

B) Click on Yes. (see screenshot below)
6. Close regedit.
7. Log off and log on, or restart the computer to apply the changes.
That's it,
Shawn
