Solved Second HDD Not recognized, not showed in "Equipment window". Help!

R

rickhunter

New member
Local time
1:46 AM
Messages
4
Second HDD Not recognized, not showed in "Equipment window". Help!

Hello, thanks for let me in.

I have a brandnew pc. HP Compaq Pro 6300 MT with Windows 7 Pro 64bits, 4 days ago.
I've been using 1TB(NTFS) Seagate hdd in another pc with windows XP and in a third pc with windows 7 ultimate and works just fine, with no problem at all.

Yesterday, I installed that HDD in my new pc and my surprise when I opened the "Equipment" window was the second HDD was not listed.

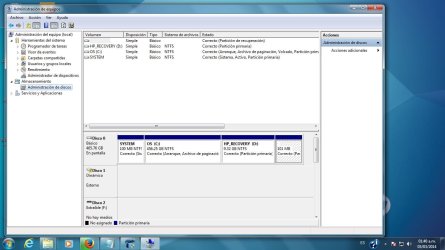

When I go to "Manage/storage/Disk Management" the second HDD is listed as: "DISK 1, Dinamic, External" and has a little yellow triangle. If I go to "Properties" almost all options are disabled (please, see the caps attached bellow).

I have cheked the Bios set up and the option for sata AHCI is anabled.

Any sugestion will be really apreciated.

Many thanks


Attachments

  • diskmanagment.jpg
    94.2 KB · Views: 9
  • properties.jpg
    27.9 KB · Views: 23

My Computer My Computer

At a glance

Windows 7 Professional x64 SP1i5-3470 3.20Ghz4 GBIntel HD Graphics (onboard)
Computer type
PC/Desktop
Computer Manufacturer/Model Number
HP Compaq 6300 Microtower
OS
Windows 7 Professional x64 SP1
CPU
i5-3470 3.20Ghz
Motherboard
??
Memory
4 GB
Graphics Card(s)
Intel HD Graphics (onboard)
Hard Drives
hd0: ST500DM002-1BD142
HD1: ST1000DM003-1CH162
Antivirus
NOD32 V.4.2.264
Browser
FIREFOX
It seems to be giving you the option of converting the disk to basic. Do you have any data on the disk that you want to keep?


My Computer My Computer

At a glance

Win 7 Pro x64/Win 10 Pro x64 dual bootAMD FX 8350 Vishera @ 420016 GB Mushkin Blackline DDR3-2400 @ 1866 (9-1...XFX Radeon R9 280 Double D Black Edition
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Mellon Labs (custom build)
OS
Win 7 Pro x64/Win 10 Pro x64 dual boot
CPU
AMD FX 8350 Vishera @ 4200
Motherboard
ASUS M5A97 R2.0
Memory
16 GB Mushkin Blackline DDR3-2400 @ 1866 (9-10-10-10-31)
Graphics Card(s)
XFX Radeon R9 280 Double D Black Edition
Sound Card
Realtek HD Audio on MB. Sounds great.
Monitor(s) Displays
Acer 24", Acer 22"
Screen Resolution
3840 x 1080
Hard Drives
1 x Mushkin Chronos 120 GB SSD (Win 10)
1 x Samsung 850 EVO 250 GB SSD (Win 7)
1 x WD 1TB SATA Blue
1 x WD 1TB SATA Green
PSU
Corsair TX-750
Case
CoolerMaster HAF 912+
Cooling
Coolermaster Seidon 240M Liquid AIO. 6 case fans
Keyboard
Logitech G710+
Mouse
Logitech G500s
Internet Speed
Much better since I got fiber, but still way overpriced.
Antivirus
MSE, Malware Bytes for scanning
Browser
Firefox
Other Info
Corsair VOID USB headphones.

A Mellon Labs X-1 - LCD Smartie driven system status display.

Brought to you by the letter E
Hey, thanks for your answer.

That`s the problem. I have almost 900GB of useful data that want to keep. Hope you can help me.
Thanks in advance!


My Computer My Computer

At a glance

Windows 7 Professional x64 SP1i5-3470 3.20Ghz4 GBIntel HD Graphics (onboard)
Computer type
PC/Desktop
Computer Manufacturer/Model Number
HP Compaq 6300 Microtower
OS
Windows 7 Professional x64 SP1
CPU
i5-3470 3.20Ghz
Motherboard
??
Memory
4 GB
Graphics Card(s)
Intel HD Graphics (onboard)
Hard Drives
hd0: ST500DM002-1BD142
HD1: ST1000DM003-1CH162
Antivirus
NOD32 V.4.2.264
Browser
FIREFOX
Don't give up hope.

Dynamic discs are generally to be avoided at all costs. I have no idea why you suddenly have dynamic discs.

Dynamic discs can be converted, but I cannot recall details of the method. I believe it involves third party programs, possibly Paragon? I don't think it can be easily done with Windows alone.

Pound on the search functions of this web site to see if you can find info on it. I know others have faced the issue, but I don't fully recall the solution.


My Computer My Computer

At a glance

Windows 7 Home Premium SP1, 64-bitIntel Skylake i5-6600K, not overclocked8 GB HyperX DDR4-2666 (2 x 4 GB)none; graphics are integrated on CPU
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
You just gave me good info to start. No I know where to start searching to read. If I find something will post it here.

Regards


My Computer My Computer

At a glance

Windows 7 Professional x64 SP1i5-3470 3.20Ghz4 GBIntel HD Graphics (onboard)
Computer type
PC/Desktop
Computer Manufacturer/Model Number
HP Compaq 6300 Microtower
OS
Windows 7 Professional x64 SP1
CPU
i5-3470 3.20Ghz
Motherboard
??
Memory
4 GB
Graphics Card(s)
Intel HD Graphics (onboard)
Hard Drives
hd0: ST500DM002-1BD142
HD1: ST1000DM003-1CH162
Antivirus
NOD32 V.4.2.264
Browser
FIREFOX

My Computer My Computer

At a glance

Windows 7 Home Premium SP1, 64-bitIntel Skylake i5-6600K, not overclocked8 GB HyperX DDR4-2666 (2 x 4 GB)none; graphics are integrated on CPU
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
Many thanks both of you. I have converted from to dynamic to basic disc and I could keep all my data-
My problem is solved!!!!
