Windows 7: External hard drive not showing up in my computer

Majstor1994

New member
Local time
2:28 AM
Messages
1
my external hard drive not showing up in my computer and it is working fine before.
I can see my external hard drive in Disk Management and Device Management, but not in my computer.
I need help and i doesn't won't lose any data.

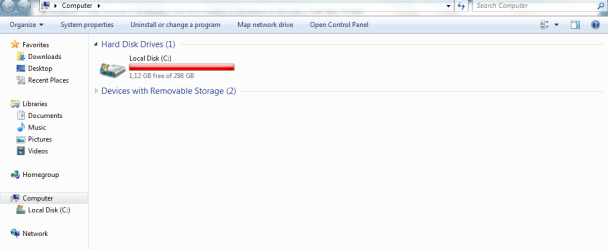

my computer.png

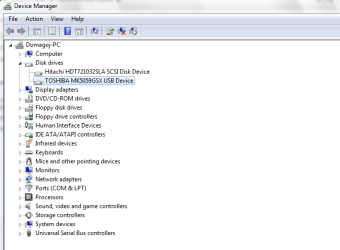

Device manager.png

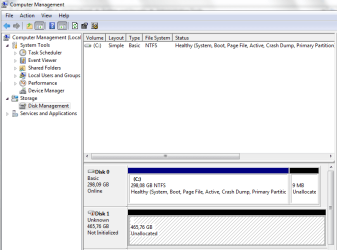

disk managment.png

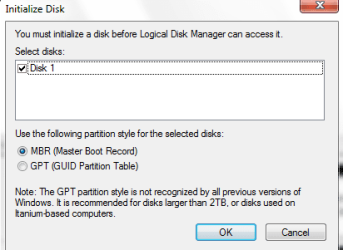

and when i go to the disk managment they they said you must initialize a disk before Logical Disk Manager can access it. I dont want to initialize because i will lose all my data.
initialize disk.png


My Computer My Computer

At a glance

Windows 7 Home Premium 32bit.
Computer type
PC/Desktop
OS
Windows 7 Home Premium 32bit.
Antivirus
AVG 2014
Browser
Google Chrome
People have been able to recover from "drive gone unallocated" by using MiniTool Partition Wizard.
Download here: Best Free Partition Manager Freeware and free partition magic for Windows 7, Windows 8, Windows Vista and Windows XP 32 bit & 64 bit. MiniTool Free Partition Manager Software Home Edition.
You can install the program in Windows, or run it off a Bootable CD or flash drive.

You then use the tool to Rebuild the MBR (assuming the disk was originally initiated MBR and not GPT.)
Directions here: How to Rebuild MBR with partition magic? Partition Wizard Rebuild MBR Video Help.

If the rebuild is successful then you need to give the partition(s) a drive letter, which you can do in PW also.

See if that works.


My Computer My Computer

At a glance

Windows 7 64 Bit Home Premium SP1i7-3820GSkill F3-14900CL9Q - 16GBEVGA GeForce GTX660 - Driver 352.86
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Home Built - Jan 2013
OS
Windows 7 64 Bit Home Premium SP1
CPU
i7-3820
Motherboard
Asus P9X79-PRO - Bios 4608
Memory
GSkill F3-14900CL9Q - 16GB
Graphics Card(s)
EVGA GeForce GTX660 - Driver 352.86
Sound Card
On board Realtek ALC898
Monitor(s) Displays
Acer S271HL
Screen Resolution
1920 x 1080
Hard Drives
#1- Samsung 840 Pro Series
#2- Western Digital WD1002FAEX Sata3 Black
#3- Western Digital WD1002FAEX Sata3 Black
PSU
Corsair CMPSU-850TX-V2 - 850 watt (by Seasonic)
Case
Corsair Obsidian 550D
Cooling
Standard 3 120mm case fans, Cooler Master Hyper 212 EVO
Keyboard
MS KC-0405
Mouse
Intellimouse 5-button
Internet Speed
56 Mbits/Sec (on a good day)
Antivirus
Avast & Malwarebytes
Browser
Firefox
Other Info
Asus DVD - DRW-24B1ST 24X
I am having the same problem with a 2 terabyte external drive but I do not have a "rebuild MBR" in Minitool Partition Wizard. what do I do now?


My Computer My Computer

At a glance

Windows 7 Ultimate 64-bit SP1Intel Core 2 Duo E8400 @ 3.00GHz8.00GB Single-Channel DDR3 @ 531MHz (7-7-7-20)Intel Q45/Q43 Express Chipset (Dell)
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Dell Optiplex 780
OS
Windows 7 Ultimate 64-bit SP1
CPU
Intel Core 2 Duo E8400 @ 3.00GHz
Motherboard
Dell Inc. 03NVJ6 (CPU)
Memory
8.00GB Single-Channel DDR3 @ 531MHz (7-7-7-20)
Graphics Card(s)
Intel Q45/Q43 Express Chipset (Dell)
Sound Card
SoundMAX Integrated Digital High Definition Audio
Monitor(s) Displays
Viore
Screen Resolution
1920x1080
Hard Drives
149GB Seagate ST3160318AS (SATA)
Keyboard
Dell
Mouse
Dell
Internet Speed
up to 7 Mbps (average 3.2 Mbps)
Antivirus
AVG IS
Browser
Firefox, Chrome
Are you saying that your version of Partition Wizard does not have a Rebuild MBR option, or that the option is greyed out, or that it will not work with your drive?
