Hi All,

Just now I installed 2+2 = 4Gb of RAM on my system. And the system properties shows 2.96 GB Usable. I would like to use 4 Gigabyte tunning to increase this 2.96 and would like to take full advantage of the 4GB. Does 4GT option available in Windows 7?? If so can you please explain me the process of enabling it.......

Thanks,
NVSP


My Computer My Computer

At a glance

Windows 7 Ultimate 32 bitIntel Core 2 Duo 2.8 GHz4 GB
Computer Manufacturer/Model Number
Lenovo
OS
Windows 7 Ultimate 32 bit
CPU
Intel Core 2 Duo 2.8 GHz
Memory
4 GB
Sound Card
Conexiant
Hard Drives
260 GB
You won't see the full 4GB (minus whatever memory is set aside for graphics) unless you install the 64 bit version of windows. There is no other solution

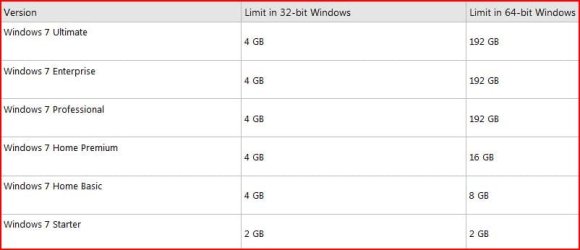

Here is a chart of memory access. With 32-bit, you will never take advantage of 4GB. Usually around 3 GB or so.


Attachments

  • Capture.JPG
    29.3 KB · Views: 229

My Computer My Computer

At a glance

Systems 1 and 2: Windows 7 Enterprise x64, Wi...System 1: i7 [email protected], System 2: AMD FX-41...System 1: 8GB System 2: 8GBSystem 1: ATI FirePro V4800 System 2: Radeon ...
Computer Manufacturer/Model Number
Dell and Custom
OS
Systems 1 and 2: Windows 7 Enterprise x64, Win 8 Developer
CPU
System 1: i7 [email protected], System 2: AMD FX-4100 Zambezi 3.6G
Motherboard
System 1:Dell 06NWYK System 2: ASUS M5A97 AM3+
Memory
System 1: 8GB System 2: 8GB
Graphics Card(s)
System 1: ATI FirePro V4800 System 2: Radeon HD 6850
Sound Card
System 1: onboard System 2: onboard
Monitor(s) Displays
System1: Viewsonic HDMI 24"
Screen Resolution
System 1: 1920x1080 System 2: 1920x1080
Hard Drives
System 1: Mirrored .5B drives System 2: Seagate Barracuda ST1000DM003 1TB 7200 RPM 64MB Cache SATA 6.0Gb/s
Case
System 1: Dell System 2: Cooler Master
Internet Speed
10 MBPS
Thanks guys for the replies.

Can I use PAE, or 4GT on Windows 7???

Thanks,
NVSP


My Computer My Computer

At a glance

Windows 7 Ultimate 32 bitIntel Core 2 Duo 2.8 GHz4 GB
Computer Manufacturer/Model Number
Lenovo
OS
Windows 7 Ultimate 32 bit
CPU
Intel Core 2 Duo 2.8 GHz
Memory
4 GB
Sound Card
Conexiant
Hard Drives
260 GB
I believe it is possible, but you can kiss stability goodbye. I'm not sure why there's so much resistence, but the only real solution is to go x64. If you want to use 4 GB or more...that's the solution. Besides, it's not like it would cost you anything...so why not?


My Computer My Computer

At a glance

Windows 7 Ultimate x64 SP1Intel Core i7-260012 GB Patriot Extreme DDR3-1333Nvidia GTX 470
OS
Windows 7 Ultimate x64 SP1
CPU
Intel Core i7-2600
Motherboard
Gigabyte GA-P67A-UD3P-B3
Memory
12 GB Patriot Extreme DDR3-1333
Graphics Card(s)
Nvidia GTX 470
Monitor(s) Displays
Dell UltraSharp 2209WA
Hard Drives
OCZ Agility3 240 GB, WD5001AALS, WD7501AALS
PSU
OCZ ModStream 700W
Case
CoolerMaster HAF 912 Advanced
Cooling
CoolerMaster Hyper 212 Plus
What part of "32 bit operating systems can't see more than about 3 GB RAM" don't people understand? I challenge anyone to show me a computer with a 32 bit operating system that has more than 3.2 GB of usable RAM. There may be 4GB of addressable space, but the difference is required for addins. For god's sake people, unless you actually have a computer that runs a 32 bit operating system which shows 3.3GB of usable memory or more, (in which case people would immediately line up at your door offering you money), stop telling people it can be done.

Thanks guys for the replies.

Can I use PAE, or 4GT on Windows 7???

Thanks,
NVSP

Only applications having native support for PAE will benefit this, most applications do not support PAE
This could make your system unstable, x64 seems a better choice


My Computer My Computer

At a glance

Windows 10 Pro x64, Arch LinuxIntel Core 2 Quad Q8200 OC'd 3.08GHz8GB DDR2 900MhzMSI GT730 2GB GDDR5 (Kepler)
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom Build
OS
Windows 10 Pro x64, Arch Linux
CPU
Intel Core 2 Quad Q8200 OC'd 3.08GHz
Motherboard
Asus Rampage formula LGA775
Memory
8GB DDR2 900Mhz
Graphics Card(s)
MSI GT730 2GB GDDR5 (Kepler)
Sound Card
Supreme FX2
Monitor(s) Displays
Samsung LS22F350 LED
Screen Resolution
1080P
Hard Drives
Kingston SSDNow UV400 120GB, 500GB Hitachi, 2TB Samsung, 500GB Seagate FreeAgent, 640GB Samsung, 160GB Toshiba (Arch)
PSU
AeroCool 500W Bronze
Cooling
Cooler Master V6 + 3X fans
Keyboard
Prolink keyboard
Mouse
Logitech M705
Internet Speed
1MiB/s
Browser
Chrome Beta
stop telling people it can be done.
Technically, it can be done, in the interest of facts. Does that mean it should be done? Absolutely not. There are plenty of good reasons why Microsoft doesn't enabled PAE, support it, or recommend it, lack of stability being the primary one. Add in the fact that pretty much none of the consumer-level drivers support PAE, and you won't be left with a usable system. You might be able to boot and show that more memory is being used...but that's about all you'll be doing with the system.

As I said, it can be done, but this is yet another example (of many) that prove the age-old addage....just because it can be done, doesn't mean it should be done. I could take a swan dive off a building....but that doesn't mean I should.

There's no need to be yelling or whatnot, because we're actually in agreement. There's a very simple solution to using 4 GB of memory, and that's to run an x64 OS.


My Computer My Computer

At a glance

Windows 7 Ultimate x64 SP1Intel Core i7-260012 GB Patriot Extreme DDR3-1333Nvidia GTX 470
OS
Windows 7 Ultimate x64 SP1
CPU
Intel Core i7-2600
Motherboard
Gigabyte GA-P67A-UD3P-B3
Memory
12 GB Patriot Extreme DDR3-1333
Graphics Card(s)
Nvidia GTX 470
Monitor(s) Displays
Dell UltraSharp 2209WA
Hard Drives
OCZ Agility3 240 GB, WD5001AALS, WD7501AALS
PSU
OCZ ModStream 700W
Case
CoolerMaster HAF 912 Advanced
Cooling
CoolerMaster Hyper 212 Plus
Does anyone remember DOS, with extended and expanded memory? What a trip back then. Fun times - lol. QEMM and Upper Memory Area (UMA), expanded memory (EMS) and extended memory (XMS).


My Computer My Computer

At a glance

Systems 1 and 2: Windows 7 Enterprise x64, Wi...System 1: i7 [email protected], System 2: AMD FX-41...System 1: 8GB System 2: 8GBSystem 1: ATI FirePro V4800 System 2: Radeon ...
Computer Manufacturer/Model Number
Dell and Custom
OS
Systems 1 and 2: Windows 7 Enterprise x64, Win 8 Developer
CPU
System 1: i7 [email protected], System 2: AMD FX-4100 Zambezi 3.6G
Motherboard
System 1:Dell 06NWYK System 2: ASUS M5A97 AM3+
Memory
System 1: 8GB System 2: 8GB
Graphics Card(s)
System 1: ATI FirePro V4800 System 2: Radeon HD 6850
Sound Card
System 1: onboard System 2: onboard
Monitor(s) Displays
System1: Viewsonic HDMI 24"
Screen Resolution
System 1: 1920x1080 System 2: 1920x1080
Hard Drives
System 1: Mirrored .5B drives System 2: Seagate Barracuda ST1000DM003 1TB 7200 RPM 64MB Cache SATA 6.0Gb/s
Case
System 1: Dell System 2: Cooler Master
Internet Speed
10 MBPS
Hi or Lo?

Does anyone remember DOS, with extended and expanded memory? What a trip back then. Fun times - lol. QEMM and Upper Memory Area (UMA), expanded memory (EMS) and extended memory (XMS).


Yeah, I remember memory managers and such. Your right there was a considerable amount of tweaking goin' on.


My Computer My Computer

At a glance

win 7 X64 Ultimate SP1I3770KG Skill F3-14900CL9-4GBXL x 4NVIDIA GeForce GTX670 + Intel 4000
Computer Manufacturer/Model Number
BGC (Bob's Garage Crew)
OS
win 7 X64 Ultimate SP1
CPU
I3770K
Motherboard
Asus P8Z77-V Deluxe
Memory
G Skill F3-14900CL9-4GBXL x 4
Graphics Card(s)
NVIDIA GeForce GTX670 + Intel 4000
Sound Card
Realtek HD 5.1 (MOB)
Monitor(s) Displays
Asus VW224T (1)
Screen Resolution
1920 x 1080
Hard Drives
SATA Corsair Force GT 2.5" 180GB (System) Sata 3
OCZ Vertex3 120GB
OCZ Vertex 2 120GB 2.5" SATA II
ST31000524AS 1000.2GB
WD15EARS (External)
PSU
CoolerMaster 1000 Watt
Case
CoolerMaster HAF X
Cooling
CPU -- CoolerMaster 520N
Keyboard
MS Wireless 3000 V2
Mouse
MS Wireless 3000 V2
Internet Speed
Cable
Antivirus
Norton Internet Security
Browser
IE9
Other Info
AMI Bios 1805
OC'd 3%
I remember those days. :)


My Computer My Computer

At a glance

Windows 7 Ultimate 32 bitIntel(R) Pentium(R) 4 CPU 3.00GHz2.50 GB RAMNVIDIA GeForce 7600 GS
Computer Manufacturer/Model Number
Home built
OS
Windows 7 Ultimate 32 bit
CPU
Intel(R) Pentium(R) 4 CPU 3.00GHz
Motherboard
ASUS P4P800-VM Motherboard Chipset: Intel 865G + ICH5
Memory
2.50 GB RAM
Graphics Card(s)
NVIDIA GeForce 7600 GS
Sound Card
SoundMax Integrated Digital Audio (Chip)
Monitor(s) Displays
ViewSonic VX 1962 wm
Screen Resolution
1680 X 1050
Hard Drives
Seagate Barracuda 7200.10 80 GB
ST380215A ATA Device 18.6 GB
Western Digital "My Book" external hard drive 750 GB
Cooling
Fan based
Keyboard
Microsoft Comfort Curve Keyboard 2000 v10 USB
Mouse
Logitec optic USB
Internet Speed
3.01 Mb/s download 0.64 Mb/s upload
Linux uses the full amount on a 32bit system - it's only the restraints put in by Microsoft that give this issue.

This is also now true with 64bit installs and the restrictions MS have added depending on what flavour of W7 you have bought.


My Computer My Computer

At a glance

openSUSE 13.1 64biti76gb Gskill matched DDR3Radeon HD4600
Computer type
PC/Desktop
OS
openSUSE 13.1 64bit
CPU
i7
Motherboard
Gigabyte UD5
Memory
6gb Gskill matched DDR3
Graphics Card(s)
Radeon HD4600
Sound Card
All onboard
Monitor(s) Displays
HP 2159v
Hard Drives
120gb Samsung SSD for the OS
2 * 1tb WD Caviar Black for storage
PSU
Corsair 750w
Case
Antec 920
Cooling
Aksas Nero
It's simple to me, let Windows 7 handle your ram and page filing. I know of any good way to do otherwise. If one wants the use of more ram go to 64 bit. IMHO the tweaks we did in older system don't apply in Windows 7. Do your self a favor don't use any 3 party programs to try and change what Windows 7 already does quite well.
