Am wondering what system means
Confusion Therapist
Guru
Gold Member
VIP
I was I should say doing a clean all on a spare drive ready to use it and I inadvertently cut the power the power to that machine
Now a) does that mean I have irreparably wrecked that drive b) have to do it all over again (don't mind that) c) when I Googled to see if I have done something rather nasty to the drive I came across the command "detail disk" from a fascinating Microsoft reference to a description of the diskpart command line .

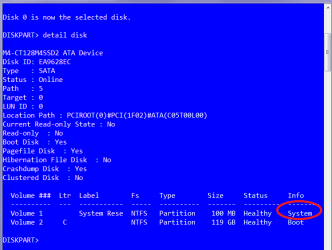

Now as most know I am not the sharpest knife in the drawer when to comes to anything much let alone the nitty gritty of the software system, and tried this on another machine and it comes up with this and I ma just curious as what "system" means. The boot part is all too obvious to me I just need to know those two things please.
12.1 KB
· Views: 12
Computer type PC/Desktop Computer Manufacturer/Model Number Own build (new) Desk1 / Asus ROG Win 7 / Desk2 1st build OS Desk1 7 Home Prem / Desk2 10 Pro / Main lap Asus ROG 10 Pro 2 laptop Toshiba 7 Pro Asus P2520 7 & 10 CPU Desk1 i5 3750K / Laptop i7 GTX 860M / Desk2 i5 2500 Motherboard Desk1 Asus P877-V / Desk2 Gigabyte H67 UD3H / Laptop ? Memory Desk1 8GB (1866) / Desk2 16GB (1333) / Laptop 8Gb DDR3 Graphics Card(s) Desk 1& 2NVidia GTX 650 & Laptops on board Intel Sound Card Desk 1 & 2 -XONAR DG Realtek High Def audio Laptop Monitor(s) Displays Desk 1 Benq HD 2450 / Desk2 Philips 24" / Laptop 17.5" Screen Resolution 1920x1080 D1 & D2 & Laptop 1 Hard Drives Desk1 Samsung 120GB 830 SSD PSU Desk 1 Corsair HX 1050/ Laptop ? / Desk 2 Corsair HX 650 Case Desk 1 Cooler HAF XM ? Toshiba laptop / Desk2 Coolermaster Cooling Fans on all Desk1 -2 Desk2 - all Coolermasters 5 Laptop ? Keyboard Desk 1 MS Sidewinder X6 Desk 2 MS Sidewinder X 4 Mouse Desk 1&2 - Gigabyte MS 900 gamer - laptop - Logitec wireless Internet Speed ADSL2+ Other Info One other Desktop (tester) and spare Toshba laptop both with SSD's
As far as I know "System disc" means it's bootable.
Computer type PC/Desktop Computer Manufacturer/Model Number Custom, Dell and Lenono LT's OS Win8/8.1,Win7-U64, Vista U64, uncounted Linux distor's CPU AMD and Intell, 9590, 8350, i5 3570k Motherboard CFVFZ, GA990FXA, Z77e-itx Memory Corsair G Skill Graphics Card(s) Crossfired Sapphire HD 7950 Vapor-X, ASUS R9 280X TOP Sound Card Realtek ALC889 Monitor(s) Displays ViewSonic VX2770SMH 27" / ViewSonic VX2433 LCD 24" Screen Resolution 1080i HD Hard Drives Samsung SSD 840 Pro PSU Corsair AX1200i, Seasonice 850 Gold Case Cooler Master HAF 922 & HAF 932, Lian Li Train case. Cooling Air, Glacer 240L expanded, custom EK loop with duel D5's Keyboard Microsoft SideWinder X4 USB Keyboard / Logitech 250 PS2 Mouse Logitech G500 / MS wireless 5000 Internet Speed Best of 5ms / 75+ dn / 12+ up More or less. Antivirus MS esentials-MalwareBytes Browser Firefox Chromebook
3 Brain Cells
Guru
Gold Member
VIP

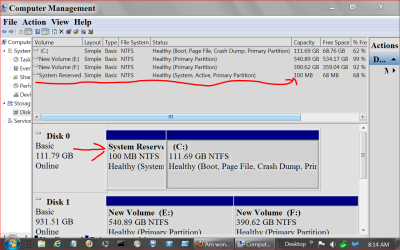

If you go into Disk Management you will find out that is System reserve. It is created when you install windows.
Computer type PC/Desktop Computer Manufacturer/Model Number Home made Desktop OS Windows 10 Pro. 64/ version 1709 Windows 7 Pro/64 CPU Intel i7-6800K @ 4.3 Motherboard ASUS X-99 Deluxe II Memory Corsair Platinum 16 gig @2400 Graphics Card(s) EVGA GTX 1070 OC Monitor(s) Displays Asus 27" LED LCD/VE278Q Screen Resolution 1920-1080 or 1280-720 HDMI Hard Drives INTEL SSD 730-240 Gb Sata 3.0/ PSU EVGA Platium 1200W Case Phanteks Luxe Tempered Glass 8 fans/ one radiator Cooling XSPC/ Water Cooled CPU Keyboard Das 4 Professional Mouse Logitech M705/MX Anywhere 2-S Internet Speed 100 mbits Antivirus Microsoft Security Essentials/ Malwarebytes Premium 3.0/ SAS Browser I.E. 11 default/Firefox/ ISP Time Warner Cable/Spectrum Other Info LG BluRay Burner/
System Reserved holds the bootmanger......without it, the system will not boot.
Computer type PC/Desktop Computer Manufacturer/Model Number Golden Mk. I.4 OS Windows 10 Pro x64 ; Xubuntu x64 CPU Intel i7 860 @ 2.80 GHz O/C'ed to 4.0GHz Motherboard Gigabyte P55A-UD3R Rev.1. Award BIOS F13 Memory 16GB Corsair Vengance DDR3 @ 661 MHz Dual Channel (9-9-9-24) Graphics Card(s) EVGA NVidia GTX 560 1024MB Sound Card Realtek Integrated Monitor(s) Displays Dual Samsung SyncMaster 2494HS Screen Resolution 1920*1080 and 1920*1080 Hard Drives 1*Samsung 840 EVO 120GB SSD; PSU Thermaltake ToughPower QFan 750W Case Thermaltake Element S VK60001W2Z Cooling Corsair H60 Water Cooling, 2*230mm and 2*80mm case fans Keyboard Logitech G110 Mouse Logitech MX518
New member
Guru
Gold Member
VIP
"system" means that partition is ACTIVE and that it booted from that partition. It has the bootmanager and bootmenu. system
Computer type Laptop Computer Manufacturer/Model Number ACER ASPIRE 5742G OS Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1 CPU Intel(R) Core(TM) i3 CPU M 370 @ 2.40GHz Motherboard Acer Aspire 5742G Memory 4,00 GB Graphics Card(s) ATI Mobility Radeon HD 5400 Series Sound Card (1) AMD High Definition Audio Device (2) Realtek High Defi Screen Resolution 1366 x 768 x 32 bits (4294967296 colors) @ 60 Hz Hard Drives WDC WD5000BEVT-22ZAT0
New member
Guru
Gold Member
VIP
"diskpart clean all" overrides all sectors on physical disk with zeros. So no data recovery is possible whatsoever. Takes hours to complete.
Computer type Laptop Computer Manufacturer/Model Number ACER ASPIRE 5742G OS Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1 CPU Intel(R) Core(TM) i3 CPU M 370 @ 2.40GHz Motherboard Acer Aspire 5742G Memory 4,00 GB Graphics Card(s) ATI Mobility Radeon HD 5400 Series Sound Card (1) AMD High Definition Audio Device (2) Realtek High Defi Screen Resolution 1366 x 768 x 32 bits (4294967296 colors) @ 60 Hz Hard Drives WDC WD5000BEVT-22ZAT0
Confusion Therapist
Guru
Gold Member
VIP
Thread Starter
Thanks to all I always thought the boot was located in the larger partition - will redo the drive tomorrow when I get home and before bed
