Display driver stopped responding but has recovered then crash

[ringzano]

I have just formatted and installed windows 7 from XP, but I cant do anything unless I am in safe mode networking or uninstall graphics driver while in safe mode and then boot up normally without any graphics driver installed.

Reason behind this is, No matter what I do computer freezes screen goes black then comes on again with the error message, Display driver stopped responding but has recovered, It can do this a few times in a row or just instantly crash and reset or BSOD, this never happened with XP ever, my pc is clean, my graphics card works fine. I have tried installing latest ATI catalyst but still the same problem, I cant even use my computer to just browse things, nevermind play a game havent been able to even get that far. This happens as soon as it loads up with drivers installed.

My graphics card is an ATI Radeon HD 4850 ASUS Custom.

All i wanted to do was install windows 7 since XP isnt supported anymore and now my pc is screwed I dont know what to do I Have tried many different solutions if anybody could help it would be great.

Thanks.



[Maguscreed]

Are you certain the power cables are secure on the graphics card and it is properly seated?
This often occurs when there is a power supply issue.

Meanwhile since you've apparently been messing with the graphics driver already let's clean that up.
First boot up safe mode as you have been and use this tool to make sure you've removed all the ati drivers, and the catalyst control center in it's entirety (the uninstaller doesn't actually remove it all)
Phyxion.net - Driver Sweeper

After that you want to download again (this can be done booting safe mode with networking)
A fresh install of the latest driver for your graphics card gpu.
that can be found here.
for 32 bit windows 7-
ATI Radeon

for 64bit windows 7 -
ATI Radeon

amd/ati is where you should be getting those drivers from, if you are going to asus for them, you are getting horribly outdated graphics drivers.

Have a look at those possibilities and we'll move on from there.



[ringzano]

Thank you for replying, its not a power issue, as it was working perfectly fine today when I had XP on my system. I have also used driver sweeper a few times and installed the correct drivers from ATI/AMD website not ASUS.
And yes I am running windows 64bit home premium, not windows ultimate i put that in wrong on my profile. This was a fresh install of windows 7 so I assumed there shouldnt of been any problems but apparantly there is. Is there any files that I can upload for you to determine the problem more precisely or is it just a trial and error thing.? I have never witnessed this problem before in my life with XP. I continuously played games with no problems there.



[Maguscreed]

If you were getting bluescreens there would be a significant amount of data you could upload that would be helpful.
It wouldn't hurt (though I can't promise I'll get anything useful from it.) for you to go ahead and follow the bsod posting instructions it will at least give me a copy of the system error logs.
http://www.sevenforums.com/crashes-debugging/96879-blue-screen-death-bsod-posting-instructions.html



[ringzano]

Here it is



[ringzano]

oh and incase you needed to know ive also tried TDR delay in registry etc. still no progress



[ringzano]

anything?



[Maguscreed]

Sorry I had to leave my desk here.
I'll have a look over it and post again shortly.



[ringzano]

ah ok no problem.. thank you very much



[Maguscreed]

Okay well you do have some crash dumps and they are pointing to the ati driver.
This is rather curious as typically the driver sweeper + reinstall solves this kind of problem.
(you did get driver sweeper from my link and not from the guru3d site right?, guru no longer supports it their version is heavily outdated now)

However, the error logs are showing indications of a botched installation.
Windows update and live kernel failures are spamming the log at several a minute, this is not normal behavior.
You should run this command just for good measure.
http://www.sevenforums.com/tutorials/1538-sfc-scannow-command-system-file-checker.html

Unfortunately unless you've been using the outdated driver sweeper I can't really come up with a specific reason for the graphics driver to be crashing.
The number of errors in your log and the rate at which they are being generated is kind of making me think something may be screwy with your win 7 installation disc. Or the install process met with some sort of unexpected interruption.

At any rate the crash dump info follows:

Probably caused by : atikmdag.sys ( atikmdag+12d9c )

Followup: MachineOwner
---------

0: kd> !analyze -v
*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

VIDEO_TDR_FAILURE (116)
Attempt to reset the display driver and recover from timeout failed.
Arguments:
Arg1: fffffa8001c234e0, Optional pointer to internal TDR recovery context (TDR_RECOVERY_CONTEXT).
Arg2: fffff88003c59d9c, The pointer into responsible device driver module (e.g. owner tag).
Arg3: 0000000000000000, Optional error code (NTSTATUS) of the last failed operation.
Arg4: 0000000000000002, Optional internal context dependent data.

Debugging Details:
------------------


FAULTING_IP:
atikmdag+12d9c
fffff880`03c59d9c 48895c2408      mov     qword ptr [rsp+8],rbx

DEFAULT_BUCKET_ID:  GRAPHICS_DRIVER_TDR_FAULT

CUSTOMER_CRASH_COUNT:  1

BUGCHECK_STR:  0x116

PROCESS_NAME:  System

CURRENT_IRQL:  0

STACK_TEXT:
fffff880`02c289c8 fffff880`0392e000 : 00000000`00000116 fffffa80`01c234e0 fffff880`03c59d9c 00000000`00000000 : nt!KeBugCheckEx
fffff880`02c289d0 fffff880`0392dd0a : fffff880`03c59d9c fffffa80`01c234e0 fffffa80`030c0d50 fffffa80`0308f010 : dxgkrnl!TdrBugcheckOnTimeout+0xec
fffff880`02c28a10 fffff880`0380ff07 : fffffa80`01c234e0 00000000`00000000 fffffa80`030c0d50 fffffa80`0308f010 : dxgkrnl!TdrIsRecoveryRequired+0x1a2
fffff880`02c28a40 fffff880`03839b75 : 00000000`ffffffff 00000000`00001878 00000000`00000000 00000000`00000002 : dxgmms1!VidSchiReportHwHang+0x40b
fffff880`02c28b20 fffff880`038382bb : 00000000`00000102 00000000`00000000 00000000`00001878 00000000`00000000 : dxgmms1!VidSchiCheckHwProgress+0x71
fffff880`02c28b50 fffff880`0380b2c6 : ffffffff`ff676980 fffffa80`0308f010 00000000`00000000 00000000`00000000 : dxgmms1!VidSchiWaitForSchedulerEvents+0x1fb
fffff880`02c28bf0 fffff880`03837e7a : 00000000`00000000 fffffa80`028b9010 00000000`00000080 fffffa80`0308f010 : dxgmms1!VidSchiScheduleCommandToRun+0x1da
fffff880`02c28d00 fffff800`033696fa : 00000000`fffffc32 fffffa80`0308e8c0 fffffa80`01846b30 fffffa80`0308e8c0 : dxgmms1!VidSchiWorkerThread+0xba
fffff880`02c28d40 fffff800`030a7b46 : fffff800`03243e80 fffffa80`0308e8c0 fffff800`03251c40 fffff880`01241534 : nt!PspSystemThreadStartup+0x5a
fffff880`02c28d80 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x16


STACK_COMMAND:  .bugcheck ; kb

FOLLOWUP_IP:
atikmdag+12d9c
fffff880`03c59d9c 48895c2408      mov     qword ptr [rsp+8],rbx

SYMBOL_NAME:  atikmdag+12d9c

FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: atikmdag

IMAGE_NAME:  atikmdag.sys

DEBUG_FLR_IMAGE_TIMESTAMP:  49f199cd

FAILURE_BUCKET_ID:  X64_0x116_IMAGE_atikmdag.sys

BUCKET_ID:  X64_0x116_IMAGE_atikmdag.sys

Followup: MachineOwner
---------

0: kd> lm t n
start             end                 module name
fffff800`00bd5000 fffff800`00bdf000   kdcom    kdcom.dll    Sat Feb 05 06:21:45 2011 (4D4D40D9)
fffff800`03010000 fffff800`03059000   hal      hal.dll      Mon Jul 13 20:27:36 2009 (4A5BDF08)
fffff800`03059000 fffff800`03635000   nt       ntkrnlmp.exe Wed Jun 22 21:51:48 2011 (4E02AA44)
fffff880`00c0b000 fffff880`00c18000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 20:29:09 2009 (4A5BDF65)
fffff880`00c18000 fffff880`00c2c000   PSHED    PSHED.dll    Mon Jul 13 20:32:23 2009 (4A5BE027)
fffff880`00c2c000 fffff880`00c8a000   CLFS     CLFS.SYS     Mon Jul 13 18:19:57 2009 (4A5BC11D)
fffff880`00c8a000 fffff880`00d4a000   CI       CI.dll       Mon Jul 13 20:32:13 2009 (4A5BE01D)
fffff880`00d4a000 fffff880`00dee000   Wdf01000 Wdf01000.sys Mon Jul 13 18:22:07 2009 (4A5BC19F)
fffff880`00dee000 fffff880`00dfd000   WDFLDR   WDFLDR.SYS   Mon Jul 13 18:19:54 2009 (4A5BC11A)
fffff880`00e00000 fffff880`00e08000   viaide   viaide.sys   Mon Jul 13 18:19:50 2009 (4A5BC116)
fffff880`00e08000 fffff880`00e18000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 18:19:48 2009 (4A5BC114)
fffff880`00e18000 fffff880`00e32000   mountmgr mountmgr.sys Mon Jul 13 18:19:54 2009 (4A5BC11A)
fffff880`00e32000 fffff880`00e3b000   atapi    atapi.sys    Mon Jul 13 18:19:47 2009 (4A5BC113)
fffff880`00e3b000 fffff880`00e65000   ataport  ataport.SYS  Mon Jul 13 18:19:52 2009 (4A5BC118)
fffff880`00e65000 fffff880`00e70000   amdxata  amdxata.sys  Tue May 19 12:56:59 2009 (4A12F2EB)
fffff880`00e70000 fffff880`00ebc000   fltmgr   fltmgr.sys   Mon Jul 13 18:19:59 2009 (4A5BC11F)
fffff880`00ec9000 fffff880`00f20000   ACPI     ACPI.sys     Mon Jul 13 18:19:34 2009 (4A5BC106)
fffff880`00f20000 fffff880`00f29000   WMILIB   WMILIB.SYS   Mon Jul 13 18:19:51 2009 (4A5BC117)
fffff880`00f29000 fffff880`00f33000   msisadrv msisadrv.sys Mon Jul 13 18:19:26 2009 (4A5BC0FE)
fffff880`00f33000 fffff880`00f66000   pci      pci.sys      Mon Jul 13 18:19:51 2009 (4A5BC117)
fffff880`00f66000 fffff880`00f73000   vdrvroot vdrvroot.sys Mon Jul 13 19:01:31 2009 (4A5BCADB)
fffff880`00f73000 fffff880`00f88000   partmgr  partmgr.sys  Mon Jul 13 18:19:58 2009 (4A5BC11E)
fffff880`00f88000 fffff880`00f9d000   volmgr   volmgr.sys   Mon Jul 13 18:19:57 2009 (4A5BC11D)
fffff880`00f9d000 fffff880`00ff9000   volmgrx  volmgrx.sys  Mon Jul 13 18:20:33 2009 (4A5BC141)
fffff880`01000000 fffff880`0103a000   fvevol   fvevol.sys   Fri Sep 25 21:34:26 2009 (4ABD7DB2)
fffff880`0103a000 fffff880`01050000   disk     disk.sys     Mon Jul 13 18:19:57 2009 (4A5BC11D)
fffff880`01050000 fffff880`01080000   CLASSPNP CLASSPNP.SYS Mon Jul 13 18:19:58 2009 (4A5BC11E)
fffff880`01088000 fffff880`0109c000   fileinfo fileinfo.sys Mon Jul 13 18:34:25 2009 (4A5BC481)
fffff880`0109c000 fffff880`010fa000   msrpc    msrpc.sys    Mon Jul 13 18:21:32 2009 (4A5BC17C)
fffff880`010fa000 fffff880`0116d000   cng      cng.sys      Mon Jul 13 18:49:40 2009 (4A5BC814)
fffff880`0116d000 fffff880`011b9000   volsnap  volsnap.sys  Mon Jul 13 18:20:08 2009 (4A5BC128)
fffff880`011b9000 fffff880`011f3000   rdyboost rdyboost.sys Mon Jul 13 18:34:34 2009 (4A5BC48A)
fffff880`01200000 fffff880`01211000   pcw      pcw.sys      Mon Jul 13 18:19:27 2009 (4A5BC0FF)
fffff880`01211000 fffff880`0121b000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 18:19:45 2009 (4A5BC111)
fffff880`0121b000 fffff880`0122f000   gagp30kx gagp30kx.sys Mon Jul 13 18:38:43 2009 (4A5BC583)
fffff880`01233000 fffff880`013d6000   Ntfs     Ntfs.sys     Mon Jul 13 18:20:47 2009 (4A5BC14F)
fffff880`013d6000 fffff880`013f0000   ksecdd   ksecdd.sys   Mon Jul 13 18:20:54 2009 (4A5BC156)
fffff880`01400000 fffff880`01412000   mup      mup.sys      Mon Jul 13 18:23:45 2009 (4A5BC201)
fffff880`01412000 fffff880`0141b000   hwpolicy hwpolicy.sys Mon Jul 13 18:19:22 2009 (4A5BC0FA)
fffff880`01425000 fffff880`01517000   ndis     ndis.sys     Mon Jul 13 18:21:40 2009 (4A5BC184)
fffff880`01517000 fffff880`01577000   NETIO    NETIO.SYS    Mon Jul 13 18:21:46 2009 (4A5BC18A)
fffff880`01577000 fffff880`015a2000   ksecpkg  ksecpkg.sys  Mon Jul 13 18:50:34 2009 (4A5BC84A)
fffff880`015a2000 fffff880`015ec000   fwpkclnt fwpkclnt.sys Mon Jul 13 18:21:08 2009 (4A5BC164)
fffff880`015ec000 fffff880`015f4000   spldr    spldr.sys    Mon May 11 11:56:27 2009 (4A0858BB)
fffff880`01601000 fffff880`017fe000   tcpip    tcpip.sys    Mon Jun 20 22:44:55 2011 (4E0013B7)
fffff880`01c02000 fffff880`01c56000   udfs     udfs.sys     Mon Jul 13 18:23:37 2009 (4A5BC1F9)
fffff880`01c56000 fffff880`01c64000   crashdmp crashdmp.sys Mon Jul 13 19:01:01 2009 (4A5BCABD)
fffff880`01c64000 fffff880`01c70000   dump_dumpata dump_dumpata.sys Mon Jul 13 18:19:47 2009 (4A5BC113)
fffff880`01c70000 fffff880`01c79000   dump_atapi dump_atapi.sys Mon Jul 13 18:19:47 2009 (4A5BC113)
fffff880`01c79000 fffff880`01c8c000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 18:21:51 2009 (4A5BC18F)
fffff880`01c8c000 fffff880`01caf000   luafv    luafv.sys    Mon Jul 13 18:26:13 2009 (4A5BC295)
fffff880`01caf000 fffff880`01cd0000   WudfPf   WudfPf.sys   Mon Jul 13 19:05:37 2009 (4A5BCBD1)
fffff880`01cd0000 fffff880`01cf3000   irda     irda.sys     Mon Jul 13 19:09:01 2009 (4A5BCC9D)
fffff880`01cf3000 fffff880`01d08000   lltdio   lltdio.sys   Mon Jul 13 19:08:50 2009 (4A5BCC92)
fffff880`01d08000 fffff880`01d20000   rspndr   rspndr.sys   Mon Jul 13 19:08:50 2009 (4A5BCC92)
fffff880`01d20000 fffff880`01de8000   HTTP     HTTP.sys     Mon Jul 13 18:22:16 2009 (4A5BC1A8)
fffff880`01de8000 fffff880`01e00000   mpsdrv   mpsdrv.sys   Mon Jul 13 19:08:25 2009 (4A5BCC79)
fffff880`02a00000 fffff880`02a89000   afd      afd.sys      Sun Apr 24 21:43:58 2011 (4DB4DFEE)
fffff880`02aa3000 fffff880`02acd000   cdrom    cdrom.sys    Mon Jul 13 18:19:54 2009 (4A5BC11A)
fffff880`02acd000 fffff880`02ad6000   Null     Null.SYS     Mon Jul 13 18:19:37 2009 (4A5BC109)
fffff880`02ad6000 fffff880`02add000   Beep     Beep.SYS     Mon Jul 13 19:00:13 2009 (4A5BCA8D)
fffff880`02add000 fffff880`02aeb000   vga      vga.sys      Mon Jul 13 18:38:47 2009 (4A5BC587)
fffff880`02aeb000 fffff880`02b10000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 18:38:51 2009 (4A5BC58B)
fffff880`02b10000 fffff880`02b20000   watchdog watchdog.sys Mon Jul 13 18:37:35 2009 (4A5BC53F)
fffff880`02b20000 fffff880`02b29000   RDPCDD   RDPCDD.sys   Mon Jul 13 19:16:34 2009 (4A5BCE62)
fffff880`02b29000 fffff880`02b32000   rdpencdd rdpencdd.sys Mon Jul 13 19:16:34 2009 (4A5BCE62)
fffff880`02b32000 fffff880`02b3b000   rdprefmp rdprefmp.sys Mon Jul 13 19:16:35 2009 (4A5BCE63)
fffff880`02b3b000 fffff880`02b46000   Msfs     Msfs.SYS     Mon Jul 13 18:19:47 2009 (4A5BC113)
fffff880`02b46000 fffff880`02b57000   Npfs     Npfs.SYS     Mon Jul 13 18:19:48 2009 (4A5BC114)
fffff880`02b57000 fffff880`02b75000   tdx      tdx.sys      Mon Jul 13 18:21:15 2009 (4A5BC16B)
fffff880`02b75000 fffff880`02b82000   TDI      TDI.SYS      Mon Jul 13 18:21:18 2009 (4A5BC16E)
fffff880`02b82000 fffff880`02bc7000   netbt    netbt.sys    Mon Jul 13 18:21:28 2009 (4A5BC178)
fffff880`02bc7000 fffff880`02bd0000   wfplwf   wfplwf.sys   Mon Jul 13 19:09:26 2009 (4A5BCCB6)
fffff880`02bd0000 fffff880`02bf6000   pacer    pacer.sys    Mon Jul 13 19:09:41 2009 (4A5BCCC5)
fffff880`03200000 fffff880`032a6000   peauth   peauth.sys   Mon Jul 13 20:01:19 2009 (4A5BD8DF)
fffff880`032a6000 fffff880`032b1000   secdrv   secdrv.SYS   Wed Sep 13 08:18:38 2006 (4508052E)
fffff880`032c8000 fffff880`032f5000   mrxsmb   mrxsmb.sys   Tue May 03 21:51:06 2011 (4DC0BF1A)
fffff880`032f5000 fffff880`03343000   mrxsmb10 mrxsmb10.sys Fri Jul 08 21:44:55 2011 (4E17C0A7)
fffff880`03343000 fffff880`03366000   mrxsmb20 mrxsmb20.sys Tue May 03 21:51:05 2011 (4DC0BF19)
fffff880`03366000 fffff880`03393000   srvnet   srvnet.sys   Thu Apr 28 22:12:35 2011 (4DBA2CA3)
fffff880`03393000 fffff880`033a5000   tcpipreg tcpipreg.sys Mon Jul 13 19:09:49 2009 (4A5BCCCD)
fffff880`03800000 fffff880`03846000   dxgmms1  dxgmms1.sys  Tue Jan 25 22:22:12 2011 (4D3FA174)
fffff880`03846000 fffff880`0386a000   HDAudBus HDAudBus.sys Mon Jul 13 19:06:13 2009 (4A5BCBF5)
fffff880`0386a000 fffff880`03877000   usbuhci  usbuhci.sys  Mon Jul 13 19:06:27 2009 (4A5BCC03)
fffff880`03877000 fffff880`038cd000   USBPORT  USBPORT.SYS  Mon Jul 13 19:06:31 2009 (4A5BCC07)
fffff880`038d1000 fffff880`039c5000   dxgkrnl  dxgkrnl.sys  Tue Jan 25 22:22:56 2011 (4D3FA1A0)
fffff880`039c5000 fffff880`039d6000   usbehci  usbehci.sys  Mon Jul 13 19:06:30 2009 (4A5BCC06)
fffff880`039d6000 fffff880`039e3000   fdc      fdc.sys      Mon Jul 13 19:00:54 2009 (4A5BCAB6)
fffff880`039e3000 fffff880`039ef000   serenum  serenum.sys  Mon Jul 13 19:00:33 2009 (4A5BCAA1)
fffff880`039ef000 fffff880`039fb000   irsir    irsir.sys    Sat Jan 19 00:36:11 2008 (47919A5B)
fffff880`039fb000 fffff880`039fc480   swenum   swenum.sys   Mon Jul 13 19:00:18 2009 (4A5BCA92)
fffff880`03a00000 fffff880`03a1e000   bowser   bowser.sys   Tue Feb 22 23:15:06 2011 (4D6497DA)
fffff880`03a42000 fffff880`03a51000   netbios  netbios.sys  Mon Jul 13 19:09:26 2009 (4A5BCCB6)
fffff880`03a51000 fffff880`03a6e000   serial   serial.sys   Mon Jul 13 19:00:40 2009 (4A5BCAA8)
fffff880`03a6e000 fffff880`03a89000   wanarp   wanarp.sys   Mon Jul 13 19:10:21 2009 (4A5BCCED)
fffff880`03a89000 fffff880`03a9d000   termdd   termdd.sys   Mon Jul 13 19:16:36 2009 (4A5BCE64)
fffff880`03a9d000 fffff880`03aee000   rdbss    rdbss.sys    Mon Jul 13 18:24:09 2009 (4A5BC219)
fffff880`03aee000 fffff880`03afa000   nsiproxy nsiproxy.sys Mon Jul 13 18:21:02 2009 (4A5BC15E)
fffff880`03afa000 fffff880`03b05000   mssmbios mssmbios.sys Mon Jul 13 18:31:10 2009 (4A5BC3BE)
fffff880`03b05000 fffff880`03b14000   discache discache.sys Mon Jul 13 18:37:18 2009 (4A5BC52E)
fffff880`03b14000 fffff880`03b32000   dfsc     dfsc.sys     Tue Apr 26 21:57:39 2011 (4DB78623)
fffff880`03b32000 fffff880`03b43000   blbdrive blbdrive.sys Mon Jul 13 18:35:59 2009 (4A5BC4DF)
fffff880`03b43000 fffff880`03b69000   tunnel   tunnel.sys   Mon Jul 13 19:09:37 2009 (4A5BCCC1)
fffff880`03b69000 fffff880`03b80000   amdk8    amdk8.sys    Mon Jul 13 18:19:25 2009 (4A5BC0FD)
fffff880`03b80000 fffff880`03b9b000   raspppoe raspppoe.sys Mon Jul 13 19:10:17 2009 (4A5BCCE9)
fffff880`03b9b000 fffff880`03bbc000   raspptp  raspptp.sys  Mon Jul 13 19:10:18 2009 (4A5BCCEA)
fffff880`03bbc000 fffff880`03bd6000   rassstp  rassstp.sys  Mon Jul 13 19:10:25 2009 (4A5BCCF1)
fffff880`03bd6000 fffff880`03be5000   mouclass mouclass.sys Mon Jul 13 18:19:50 2009 (4A5BC116)
fffff880`03be5000 fffff880`03bf3000   kbdhid   kbdhid.sys   Mon Jul 13 19:00:20 2009 (4A5BCA94)
fffff880`03bf3000 fffff880`03c00000   mouhid   mouhid.sys   Mon Jul 13 19:00:20 2009 (4A5BCA94)
fffff880`03c00000 fffff880`03c2f000   ndiswan  ndiswan.sys  Mon Jul 13 19:10:11 2009 (4A5BCCE3)
fffff880`03c2f000 fffff880`03c3e000   kbdclass kbdclass.sys Mon Jul 13 18:19:50 2009 (4A5BC116)
fffff880`03c47000 fffff880`04169000   atikmdag atikmdag.sys Fri Apr 24 05:51:57 2009 (49F199CD)
fffff880`04169000 fffff880`04172000   irenum   irenum.sys   Mon Jul 13 19:08:59 2009 (4A5BCC9B)
fffff880`04172000 fffff880`0418f000   parport  parport.sys  Mon Jul 13 19:00:40 2009 (4A5BCAA8)
fffff880`0418f000 fffff880`041a3000   Rtnic64  Rtnic64.sys  Mon Mar 31 00:39:38 2008 (47F0791A)
fffff880`041a3000 fffff880`041b3000   CompositeBus CompositeBus.sys Mon Jul 13 19:00:33 2009 (4A5BCAA1)
fffff880`041b3000 fffff880`041c9000   AgileVpn AgileVpn.sys Mon Jul 13 19:10:24 2009 (4A5BCCF0)
fffff880`041c9000 fffff880`041ed000   rasl2tp  rasl2tp.sys  Mon Jul 13 19:10:11 2009 (4A5BCCE3)
fffff880`041ed000 fffff880`041f9000   ndistapi ndistapi.sys Mon Jul 13 19:10:00 2009 (4A5BCCD8)
fffff880`04200000 fffff880`0423d000   portcls  portcls.sys  Mon Jul 13 19:06:27 2009 (4A5BCC03)
fffff880`0423d000 fffff880`0425f000   drmk     drmk.sys     Mon Jul 13 20:01:25 2009 (4A5BD8E5)
fffff880`0425f000 fffff880`04264200   ksthunk  ksthunk.sys  Mon Jul 13 19:00:19 2009 (4A5BCA93)
fffff880`04265000 fffff880`04282000   usbccgp  usbccgp.sys  Mon Jul 13 19:06:45 2009 (4A5BCC15)
fffff880`04282000 fffff880`04283f00   USBD     USBD.SYS     Mon Jul 13 19:06:23 2009 (4A5BCBFF)
fffff880`04284000 fffff880`04292000   hidusb   hidusb.sys   Mon Jul 13 19:06:22 2009 (4A5BCBFE)
fffff880`04293000 fffff880`042d6000   ks       ks.sys       Wed Mar 03 22:32:25 2010 (4B8F37D9)
fffff880`042d6000 fffff880`042ea000   amdiox64 amdiox64.sys Thu Feb 18 09:17:53 2010 (4B7D5A21)
fffff880`042ea000 fffff880`042fc000   umbus    umbus.sys    Mon Jul 13 19:06:56 2009 (4A5BCC20)
fffff880`042fc000 fffff880`04356000   usbhub   usbhub.sys   Mon Jul 13 19:07:09 2009 (4A5BCC2D)
fffff880`04356000 fffff880`04361000   flpydisk flpydisk.sys Mon Jul 13 19:00:54 2009 (4A5BCAB6)
fffff880`04361000 fffff880`04376000   NDProxy  NDProxy.SYS  Mon Jul 13 19:10:05 2009 (4A5BCCDD)
fffff880`04376000 fffff880`043d2000   HdAudio  HdAudio.sys  Mon Jul 13 19:06:59 2009 (4A5BCC23)
fffff880`043d2000 fffff880`043eb000   HIDCLASS HIDCLASS.SYS Mon Jul 13 19:06:21 2009 (4A5BCBFD)
fffff880`043eb000 fffff880`043f3080   HIDPARSE HIDPARSE.SYS Mon Jul 13 19:06:17 2009 (4A5BCBF9)
fffff880`043f4000 fffff880`04400000   Dxapi    Dxapi.sys    Mon Jul 13 18:38:28 2009 (4A5BC574)
fffff880`04400000 fffff880`04471000   spsys    spsys.sys    Mon May 11 12:20:58 2009 (4A085E7A)
fffff880`044f0000 fffff880`04557000   srv2     srv2.sys     Thu Apr 28 22:12:51 2011 (4DBA2CB3)
fffff880`04557000 fffff880`045ec000   srv      srv.sys      Thu Apr 28 22:13:05 2011 (4DBA2CC1)
fffff880`045ec000 fffff880`045fa000   monitor  monitor.sys  Mon Jul 13 18:38:52 2009 (4A5BC58C)
fffff960`00040000 fffff960`00352000   win32k   win32k.sys   unavailable (00000000)
fffff960`004c0000 fffff960`004ca000   TSDDD    TSDDD.dll    unavailable (00000000)
fffff960`006e0000 fffff960`00707000   cdd      cdd.dll      unavailable (00000000)

Unloaded modules:
fffff880`013f0000 fffff880`013fe000   crashdmp.sys
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  0000E000
fffff880`015f4000 fffff880`01600000   dump_ataport
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  0000C000
fffff880`0141b000 fffff880`01424000   dump_atapi.s
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00009000
fffff880`02a90000 fffff880`02aa3000   dump_dumpfve
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00013000



[ringzano]

ah, i may have been using the outdated driver sweeper, i will try the one you posted and then get back to you, if it doesnt work i will use the scan you posted thank you.



[ringzano]

right well i was using that driver sweeper anyway i guess coz that didnt work either.



[Maguscreed]

well the scan now command is relatively simple.
As I said the error logs are just filled from your system report though, I would not expect to see that kind of failure happening in a fresh installation.
Not to pry but are you certain of the source your windows 7 disc came from?



[ringzano]

I am doing the scan now in safemode with networking if it will still work, if not i will uninstall my drivers and load up normally again, as thats the only way loading normally will work .. wierd eh?.. if the drivers are installed i get a full resolution but as soon as it boots on desktop it gets the error message and crashes.. and yes its an original copy of windows 7



[ringzano]

well that was wierd it done 100% complete verification and then just closed and that was it.. must have to run it in normal boot?



[Maguscreed]

I would reboot anyway just to see if it changed anything.
On another note maybe your weird custom graphics card actually wants the driver from asus (though it's rare they modify the drivers at all)
So you can also try that route.



[ringzano]

ahh, ive just noticed something, is this a problem?..

Ive just let windows 7 driver install without my catalyst, and ive right clicked in device manager and hit properties, then driver and then driver details.

When i read down there are all the system32 files plus DRIVER files and then there is sysWOW64 files but no DRIVER files under that part, so when im loading up are my sysWOW64 files conflicting with my system 32 files?



[Maguscreed]

If I'm understanding you properly, yeah that is not normal. I've attached a screen of what my properly installed 5850 looks like.



[ringzano]

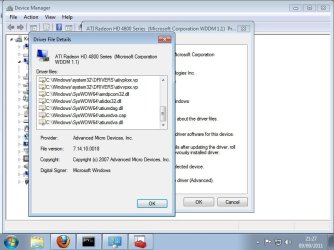

this is mine, is it normal? obviously on this one my catalyst isnt installed.



[Maguscreed]

yeah while yours appears to be loading fewer items the setup appears proper. The difference could just be that my 5850 has dx11 support and all the hdmi stuff loaded.
