Realtek front panel- audio & mic not recognised

[iMaStEr]

After connecting to the front panel my headphones (audio and mic), nothing happens, no sound through them. How to fix that?

IS this tut about that? http://www.sevenforums.com/sound-audio/2197-realtek-hd-changing-jack-output-reassignments-fix.html

If so, I didn't find DevType_0888_SS147b1083 or ending in DevType_0885_SS18490890
mine ends like 9999



[Dwarf]

Hi iMaStEr,

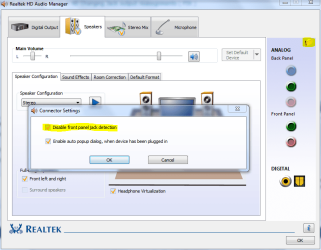

If you have an AC'97 front panel, it won't work with HD audio unless you change the following setting in the Realtek HD Audio Manager. It needs to be checked, as shown.



[iMaStEr]

Thanks!

I also want to ask, what exactly the option "Headphone Virtualization" does? I see you are using it. I tried with it, without it, but in every way I hear sound thorugh both: speakers and headphones.



[Dwarf]

I'm not to sure about the Headphone Virtualization, although I do check the box. For your other query, see the last paragraph here http://www.sevenforums.com/sound-audio/44491-ac97-hd-audio-front-panel-layouts.html#post424079
