Removing 100MB system partition - no re-install needed

[jimbo45]

Hi all.

I don't know about you guys but the extra 100 MB system partition that sometimes gets created annoys me -- I like to have my OS installed cleanly on a SINGLE partition - and even when doing a clean install on a new 1TB disk I don't want to assign any more than 50 GB (Max) to the w7 partition so here's how to fix it without doing a re-install.

( I know its only a single small 100MB partition which is nothing on a 1.5TB disk - but it still annoys me - and its easier to backup and deploy images if they are all on a SINGLE partition).

1) Ensure you have a bootable restore version of your backup software and the W7 install DVD -- you'll need that later.

2) Backup your OS with Acronis True Image / Ghost -- Acronis works fine since you can specify the partition size on restore and change the partition type.

3) Delete the OS partition AND the system partition. You can use something like the Windows install disk - but after deleting the partitions don't start the install.
Other partition deletion software such as GPARTED can be used

4) Restore the OS and specify partition size. ALSO CHANGE PARTITION TYPE TO ACTIVE.

5) Now boot from the Windows Install disk and select REPAIR SYSTEM -- you'll need to do this since the restored OS will be missing BOOTMGR on it.

6) Let repair do its thing

7) Boot into W7 -- now its on a nice single partition.

Cheeers

jimbo



[sup3rsprt]

or you could simply use the bcdboot command to create the boot manager to the Windows drive and set it "active" using the diskpart command. Although that one only works if Windows is on a primary partition.

Good job on the guide though.



[logicearth]

Instead of going though all that...why not setup the drive before installing Windows. No more 100 MB system reserved partition...



[sup3rsprt]

True, but I'm pretty sure this method is to be used after the fact.



[jimbo45]

Instead of going though all that...why not setup the drive before installing Windows. No more 100 MB system reserved partition...

Hi there
not very easy if you've got say 500 GB of USER DATA already on the HDD such as Music, Pictures, presentations, spreadsheets, video etc. You don't always have an empty disk to install the OS from or a spare 500 GB HDD to back the stuff up to while doing the W7 install.

(If you've got an empty disk then no problem - my guide was for those cases where you haven't got an empty disk to start with).

Also in order to use the diskpart or bcdboot commands you actually have to have a system to issue these commands from in the first place -- remember the "unrepaired" OS won't boot so you need either the Windows install disk or another OS to boot first.

Cheers
jimbo



[logicearth]

But you do not need an empty disk...just create the partition before you select which to install Windows on. DISKPART doesn't require the disk to be empty.



[jimbo45]

But you do not need an empty disk...just create the partition before you select which to install Windows on. DISKPART doesn't require the disk to be empty.

Hi there
if the disk is not empty such as in the case outlined above where you already have a DATA partition then even if you create another primary partition - you'll find W7 creates a 100MB system partition when it installs.

(I've done this enough times - if you don't get a 100MB partition then you are lucky).

You won't see it in Windows explorer but go into control panel==>administrative tools==>computer management==>disk management where if it exists you'll see it.

cheers
jimbo



[logicearth]

Create the partition though diskpart (SHIFT + F10 durning installation). do this before getting to the drive selection.



[jimbo45]

Create the partition though diskpart (SHIFT + F10 durning installation). do this before getting to the drive selection.

This will install of course on the partition -- BUT you'll STILL get a system 100MB partition in a number of cases.

Also if you HAVE a 100MB partition then all I'm saying is how to get rid of it. If you can avoid creating one in the first place then of course its better.

Cheers
jimbo



[logicearth]

Only get the System Reserved partition if you create partitions from the drive selection screen during installation. I do not have a System Reserved partition because I used diskpart to setup the partition that way.



[MacGyvr]

You should be aware that the 100MB partition also contains software to assist in recovery should your system become unbootable. You should stop worrying about trying to remove it and be glad that it's there. I will never understand trying to remove something new just because you can, even if you don't fully understand it in the first place!



[zrtom]

In the times I've tried it, if you format the new OS partition from the install disk (don't just install to unallocated space but create and format it) and then point the installer to the partition you just formatted, it won't create the 100MB partition.



[zrtom]

You should be aware that the 100MB partition also contains software to assist in recovery should your system become unbootable. You should stop worrying about trying to remove it and be glad that it's there. I will never understand trying to remove something new just because you can, even if you don't fully understand it in the first place!

Yea, it does certainly serve a purpose to have the WinRE on another partition. Pre-W7 I've used the setautofailover.cmd command to move boot.sdi and winre.wim files to a separate partition for safety's sake (in case of complete OS corruption).
Windows RE Notes

But I can also understand wanting to not have it. Each user has their own preferences.



[logicearth]

<< * has the recovery environment on a USB key and CD. *



[SIW2]

Is WinRE inside that 100mb partition?

You should be aware that the 100MB partition also contains software to assist in recovery should your system become unbootable. You should stop worrying about trying to remove it and be glad that it's there. I will never understand trying to remove something new just because you can, even if you don't fully understand it in the first place!

Yea, it does certainly serve a purpose to have the WinRE on another partition. Pre-W7 I've used the setautofailover.cmd command to move boot.sdi and winre.wim files to a separate partition for safety's sake (in case of complete OS corruption).
Windows RE Notes

But I can also understand wanting to not have it. Each user has their own preferences.



[zrtom]

Is WinRE inside that 100mb partition?

Hmmm. In the way W7 sets it up, it doesn't appear to be.



[MacGyvr]

Is WinRE inside that 100mb partition?

Hmmm. In the way W7 sets it up, it doesn't appear to be.
View attachment 33200

It is...that's the point of the partition being there. It also handles BitLocker encryption. Best advice, suck it up and leave the partition there. It's not killing you.



[SIW2]

Hi Zr,

LOL . It was a rhetorical question.

A lot of people think it is in there - I have no idea what gave them that impression.

Steve Balmer is a cool guy.

I don't think even he could fit 164mb Winre.wim in a 100 mb partition.

I could be wrong.



[zrtom]

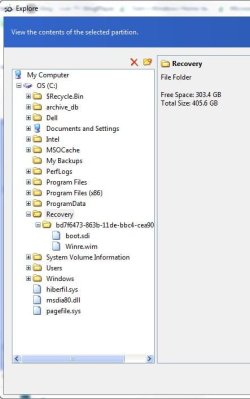

On mine, winre.wim and boot.sdi are hidden away on the OS partition. Sounds like MS did a half-a$$ed job at protecting the Recovery Enviroment if they didn't put those two files on the System Reserved partition.

I copied winre.wim out of there to take a look at it. It's 160MB. Hmmm. Remember somewhere between beta and RC, MS announced they didn't need a full 200MB and started making the System Reserved partition 100MB instead of the original 200MB? I wonder if they originally put winre.wim and boot.sdi in the System Reserved partition but then changed their mind. I guess I could reinstall an older build to check, but it really doesn't matter anyway.



Edit: SIW2, I was writing this and didn't see your last post.



[SIW2]

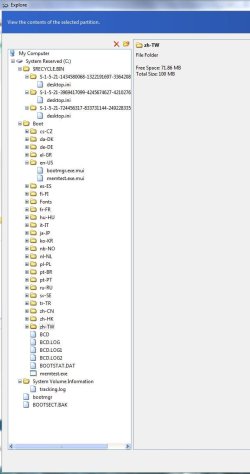

Be a hell of a squeeze even with 200mb - the boot citical files are in there as you can see in your screenie - add 164mb to that ?
