"Setup was unable to create a new system partition...."

[kermit jagger]

I've been trying to install Windows 7 from a USB drive on a new HP laptop and I've ran into some problems.

There are 3 partitions listed. One is called HPDOCS, 7gb and is listed as primary. The second is also at 7gb and is listed as system, and the third was unallocated space with 920~ gb.

After some research, I've decided to try out the whole cmd "diskpart" thing. Furthermore, I've tried making my drive bootable by copying the installation files on it and installing directly from the drive, but after trying the " xcopy d: c: /e /h /k " command, I receive the message that there are no files to copy.

And lastly, after restarting and trying again, now I only have 1 partition, 930~ gb, and listed as system. Did I mess something up? Was something essential deleted? Can it be reverted?

Help is much appreciated.



[samuria]

Welcome to the forum. Start the install when it asks were to install you have the option to delete paritions do that then let windows create new ones



[kermit jagger]

Welcome to the forum. Start the install when it asks were to install you have the option to delete paritions do that then let windows create new ones

So I delete that one partition I have left and the next time I run the installation I'll be back at the three initial ones?



[AddRAM]

No, if you delete your entire drive to unallocated space, then install Windows 7, you will end up with 2 partitions.

A System reserved Partition and C your Windows 7 partition, that`s it.

Clean Install Windows 7

If this is a GPT disk and you are installing in uEFI you will then wind up with 3 partitions.

A system partition, a Recovery partition, and C your Windows 7 partition.


Not sure why you are trying to install Windows 7 in the way you describe in your 3rd sentence.


Please explain how you created your Windows 7 usb installer.



[ThrashZone]

Hi,
SSD / HDD : Optimize for Windows Reinstallation



[Megahertz07]

I hope you did the Factory Recover disks before you cleaned all the disk.
You didn't gave us your hardware specifications so it's impossible to us to guide you.
On some new laptops, it's even impossible to install Win 7. They allow only Win 10 and Linux.
If your laptop came with Win 8 or 10, you also have to change some BIOS settings (like secure boot, fast boot, CSM).
Please edit your profile with all hardware information.



[kermit jagger]

No, if you delete your entire drive to unallocated space, then install Windows 7, you will end up with 2 partitions.

It's a brand new laptop, there's nothing to delete is there?

If this is a GPT disk and you are installing in uEFI you will then wind up with 3 partitions.

I'm pretty sure it's BIOS

Not sure why you are trying to install Windows 7 in the way you describe in your 3rd sentence.

I've tried doing method 3 from this article "https://www.partitionwizard.com/partitionmanager/setup-was-unable-to-create-a-new-system-partition.html"



[kermit jagger]

I hope you did the Factory Recover disks before you cleaned all the disk.
You didn't gave us your hardware specifications so it's impossible to us to guide you.
On some new laptops, it's even impossible to install Win 7. They allow only Win 10 and Linux.
If your laptop came with Win 8 or 10, you also have to change some BIOS settings (like secure boot, fast boot, CSM).
Please edit your profile with all hardware information.

I hope you did the Factory Recover disks before you cleaned all the disk.

Why was that important?

You didn't gave us your hardware specifications so it's impossible to us to guide you.

It's an HP 250 G4. It didn't come with any OS. I'm not sure which exact hardware specifications would be of use to you here.

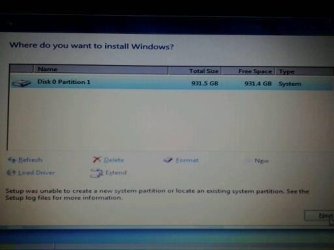

All I know is that there were 2 partitions - system and HPDOCS and 1 unallocated space option. I clicked on "new" on unallocated space option and created partition 3, and it displayed the message in the thread title.
After trying the whole create partition, clean, active, assign and format, I only now have one partition that's listed as system. It's like the initial three options merged into 1.



[kermit jagger]

Imgur: The most awesome images on the Internet



[Megahertz07]

Download the Win 7 Drivers Drivers & Software for HP 250 G4 Notebook PC - HP Support Center.
Manual http://h20565.www2.hp.com/hpsc/doc/...609933&docLocale=en_US&docId=emr_na-c04652843

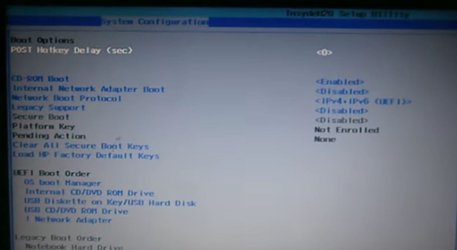

You also have to change some BIOS settings (like secure boot, fast boot).
Disable secure boot
Disable fast boot


Boot the Win 7 installation disk on UEFI mode (important) - Install - advanced - delete all partitions - install on the un allocated. Windows will create 3 partitions. Don't need to format. Just choose install.



[AddRAM]

Clean Install Windows 7



[kermit jagger]

Download the Win 7 Drivers Drivers & Software for HP 250 G4 Notebook PC - HP Support Center.
Manual http://h20565.www2.hp.com/hpsc/doc/...609933&docLocale=en_US&docId=emr_na-c04652843
You also have to change some BIOS settings (like secure boot, fast boot).
Disable secure boot
Disable fast boot


Boot the Win 7 installation disk on UEFI mode (important) - Install - advanced - delete all partitions - install on the un allocated. Windows will create 3 partitions. Don't need to format. Just choose install.

What's the importance of installing on UEFI mode and what are the consequences?



[ThrashZone]

Hi,
None really but if your hdd or ssd is formatted as gpt you have too unless you change it to mbr instead
Hard Drive - GPT or MBR

Convert GPT Disk to MBR Disk



[kermit jagger]

I've clicked on the delete function and it says I might lose important files from the laptop manufacturer.
As I've said I've somehow merged system files and "HPDOCS" with the unallocated space.



[ThrashZone]

Hi,
SSD / HDD : Optimize for Windows Reinstallation

Hi,
Did you do the above
Unallowcated should be fine and is best to not have any system reserved partitions created by the installer.

Next would be to see if the disk is formatted mbr not gpt.

If you have secure boot and a disable option use it
Boot and os type should hopefully have an option to choose other os instead of uefi or windows uefi mode.



[kermit jagger]

Hi,
SSD / HDD : Optimize for Windows Reinstallation

Hi,
Did you do the above
Unallowcated should be fine and is best to not have any system reserved partitions created by the installer.

Next would be to see if the disk is formatted mbr not gpt.

If you have secure boot and a disable option use it
Boot and os type should hopefully have an option to choose other os instead of uefi or windows uefi mode.

So you saw the picture above and you claim there's absolutely no harm in deleting that entire partition even if it contains "system files"?
If so, I disable the legacy boot mode and proceed to boot from USB, deleting the partition. What happens next?
Is there a way to un-merge the partition so I don't have to delete the HP recovery files?



[kermit jagger]

I've tried booting with the legacy boot mode disabled and it said there were no devices to boot from. There's nothing listed when I press f9.



[Megahertz07]

If you disabled Legacy boot mode and you can't boot the USB installation disk, It hasn't been assembled right. What tool did you use to make the USB installation disk?
Use Rufus Rufus - Create bootable USB drives the easy way and get the iso from here: Microsoft Windows and Office ISO Download Tool
As you said that your laptop came without OS and the HPDoc you already deleted, there is nothing more to loose.
Just in case, make a new partition leaving the system partition with 200M.
Install Win 7 on the remaining partition. Windows will create the appropriate partitions.
As your hardware is new, UEFI mode it's more appropriate to install Win 7 64.
Follow the steps on my previous post (10).



[Megahertz07]

You say you can't boot from your USB drive in UEFI. Does your installation has the efi/boot folder?
The efi/boot has to be added to the installation, it isn't provided by M$.

http://www.sevenforums.com/attachme...dows-7-installer-stuck-setup-starting-efi.jpg
http://www.sevenforums.com/attachme...ows-7-installer-stuck-setup-starting-boot.zip



[ThrashZone]

Hi,
Unallowcated space is where you would install too
Not sure posting links to instruction will help you if you don't follow the instructions on them
Boot to the flash drive not uefi listing rufus offers.
USB Windows 7 Installation Key Drive - Create

Also make sure the flash drive is inserted in a usb2 port.
