Solved Unable to read WD Elements 1TB Hard Disk

Problematic123

New member
Local time
11:02 AM
Messages
18
Hi Guys,

My Wd elements 1tb hard disk is unreadable by my computer.It is not showed in my file explorer
I ran WD LifeGuard Diagnostics for Windows. This time, this app detected my hard disk.
Under SMART status column, it shows that it Passed
i then run on the following tests:

Quick Test:

The scan stops after 8s, after that an error pops up : "Read SMART Attribute command error on drive 3"(pic 1)

Extended Test:

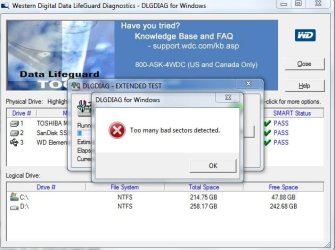

The scan stops around 9mins, error pops up:"too many bad sectors detected"(pic 2)

Should i continue to the other tests?(I got no time today so i just ran the basic tests)

I then started looking up on Disk Management, and it took ages to load up.
Once i remove my wd hard disk, it then pops up my internal hard disk.

I got nothing important inside this wd hard disk, so i am okay if i need to wipe everything inside.

Please guide on what i should do next.

Thanks,
problematic


Attachments

  • pic 1.jpg
    pic 1.jpg
    40.3 KB · Views: 24
  • pic 2.jpg
    pic 2.jpg
    44.2 KB · Views: 24

My Computer My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
Asus P46CB (K46CB)
OS
Windows 7 Professional 64-bit SP1
CPU
Intel Core i5 3337U
Memory
8gb 800mhz
Graphics Card(s)
Nvidia GeForce GT 740M 2047MB
Hard Drives
465GB TOSHIBA MQ01ABF050 ATA Device (SATA)
22GB SanDisk SSD U100 24GB ATA Device (SSD)
Internet Speed
1 Gigabits per second
Antivirus
Avast Free
Browser
Google Chrome
Sad to say, but bad blocks / sectors means that your disk is dead.


My Computers My Computers

System One System Two

  • Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    custom build
    OS
    Windows 7 HP 64
    CPU
    i5 6600K - 800MHz to 4200MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500Mb/s
    Browser
    Firefox 64
    Other Info
    TinyWall firewall
  • Computer type
    Laptop
    System Manufacturer/Model Number
    Asus Q550LF
    OS
    Windows 7 Pro
    CPU
    i7-4500U 800MHz to 3.0GHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics Card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs +
    1T HDD for data
    Internet Speed
    500 Mb/s
    Browser
    Firefox
    Other Info
    TinyWall firewall
Okay, I just noticed that I still have warrenty, becos I got this hard disk as a free gift from a bank, the warranty status is 'out of sub region' but I will still try. THANKS :)
